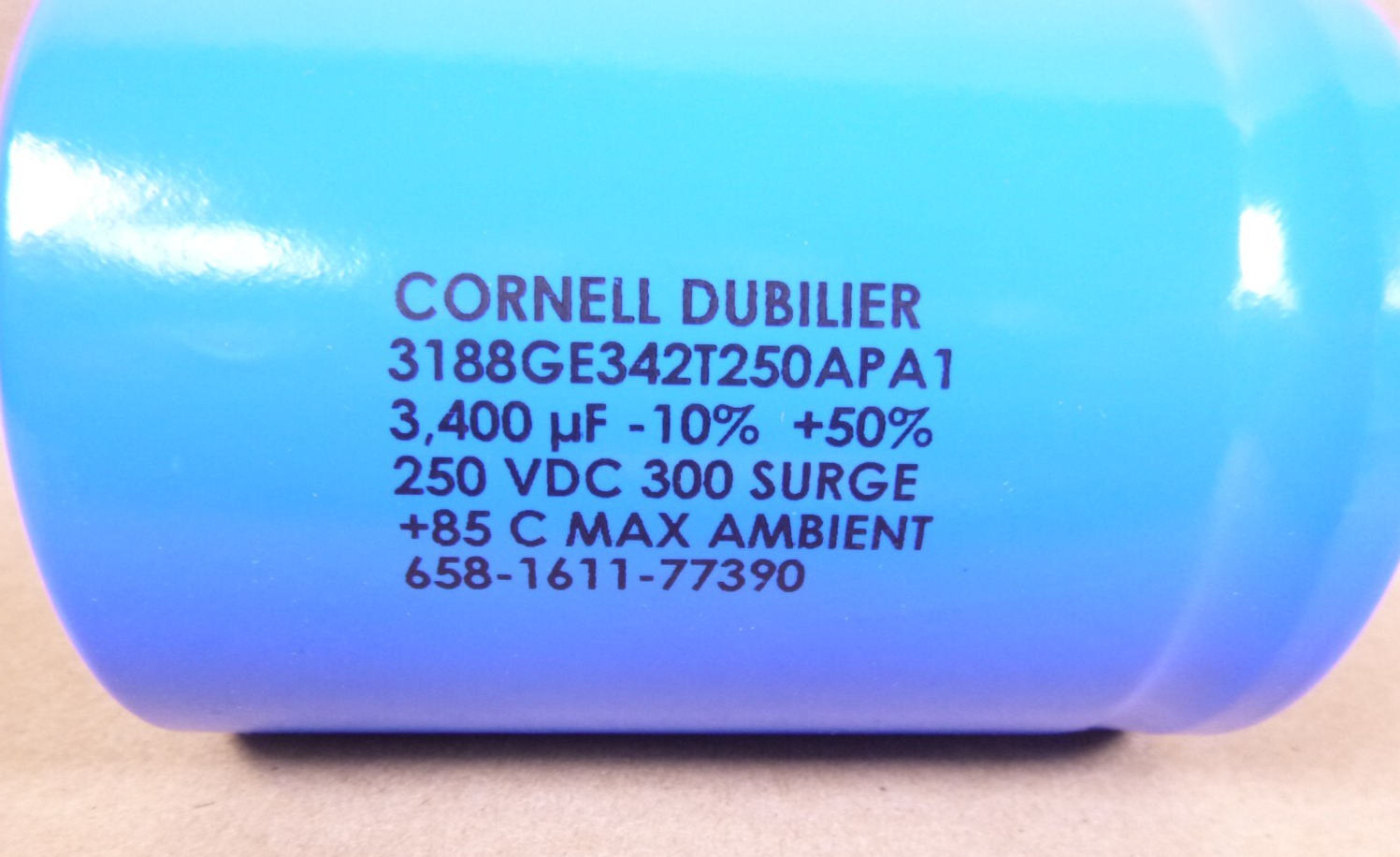

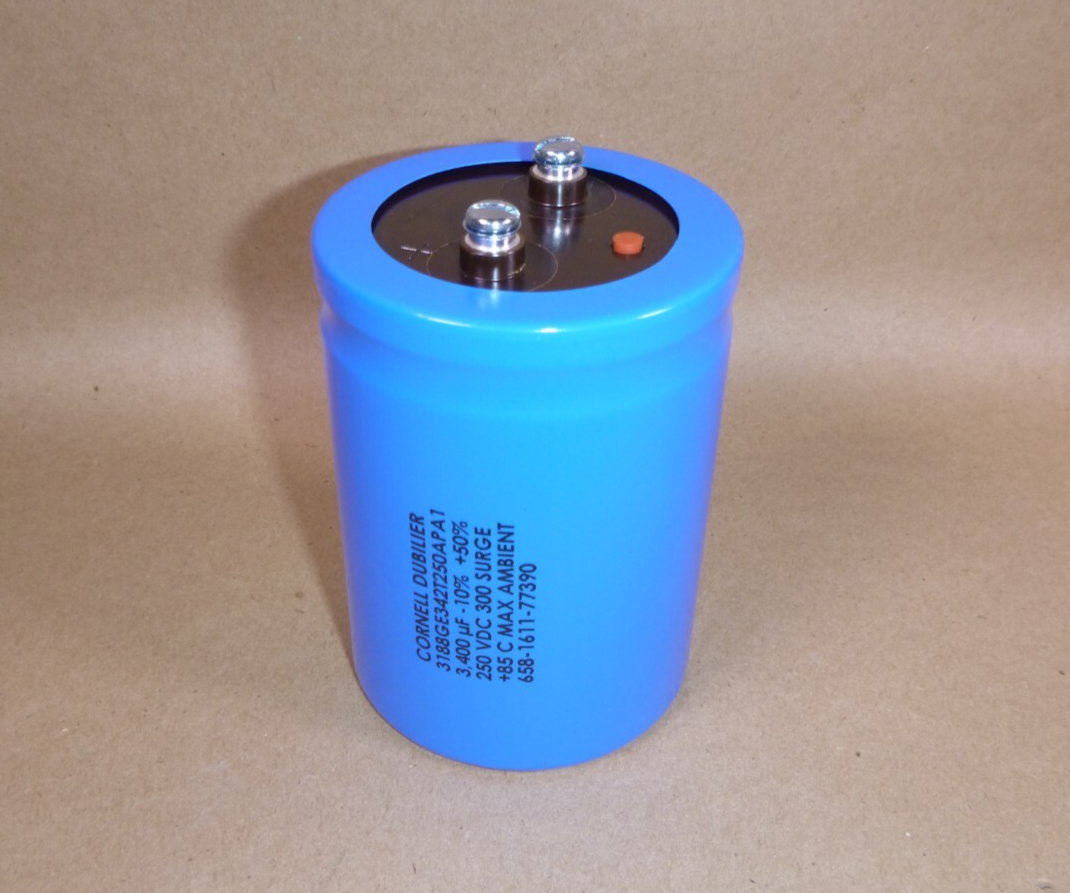

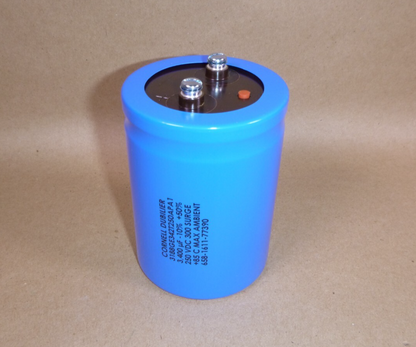

Cornell Dubilier Aluminum Electrolytic Capacitor 3,400 uF 250 VDC -10% + 50% tol

Regular price: $68.95
Regular price
Sale price: $68.95

Shipping calculated at checkout.

Aluminum Electrolytic Capacitors - Screw Terminal 3400uF 250V -10% + 50% tol

Technical Characteristics

ELECTRICAL POLARIZATION: (AECQ) POLARIZED
BODY DIAMETER: (ABPM) 2.008 INCHES NOMINAL
BODY LENGTH: (ADAQ) 4.133 INCHES NOMINAL
BODY STYLE: (AAQL) W/O MTG FACILITIES, TERMINAL(S) ON ONE END
CAPACITANCE VALUE PER SECTION: (CQBQ) 3400.000 MICROFARADS SINGLE SECTION
CAPACITIVE ELECTRODE MATERIAL: (CWNJ) ALUMINUM
CASE INSULATION MATERIAL: (CWSZ) PLASTIC
CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO DIAMETER: (AEBS) 1.250 INCHES NOMINAL
EQUIVALENT SERIES RESISTANCE AT REFERENCE TEMP IN OHMS: (CWQC) 0.08
NONDERATED CONTINUOUS VOLTAGE RATING AND TYPE PER SECTION: (CQWM) 250.0 DC SINGLE SECTION
NONDERATED OPERATING TEMP: (CQJJ) -40.0 CELSIUS MINIMUM AND 85.0 CELSIUS MAXIMUM
SCHEMATIC DIAGRAM DESIGNATOR: (AEBZ) NO COMMON OR GROUNDED ELECTRODE(S)
TERMINAL DIAMETER: (AEBT) 0.190 INCHES NOMINAL
TERMINAL LENGTH: (ABJT) 0.281 INCHES NOMINAL

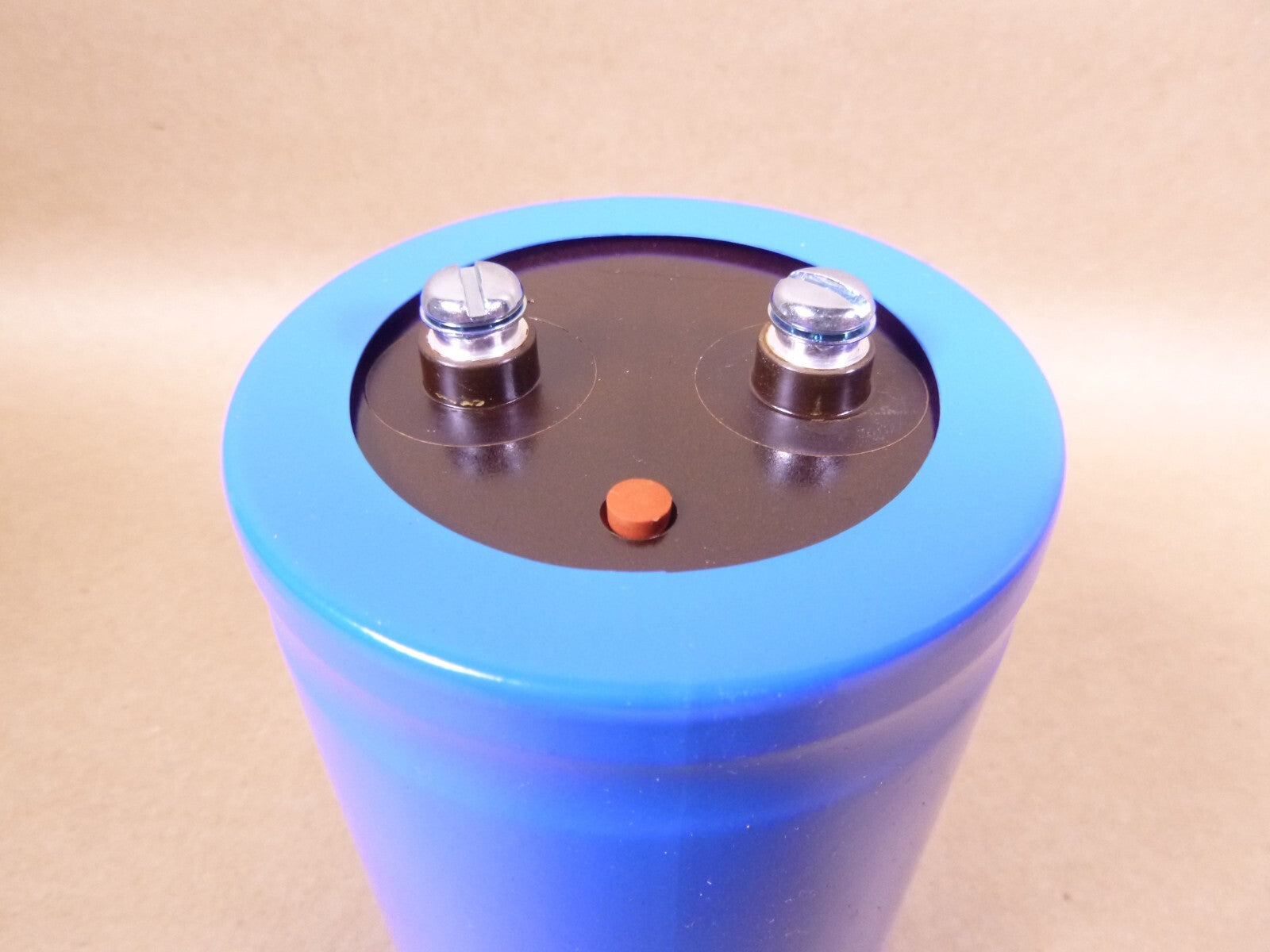

TERMINAL TYPE AND QUANTITY: (TTQY) 2 THREADED HOLE
TOLERANCE RANGE PER SECTION: (CRTP) -10.00 TO 50.00 PERCENT SINGLE SECTION
TOLERANCE RANGE PER SECTION: (CRTP) -10.00/+50.00 PERCENT SINGLE SECTION
CASE MATERIAL: (CWJK) METAL
NONDERATED OPERATING TEMP: (CQJJ) -40.0 DEG CELSIUS MINIMUM AND 85.0 DEG CELSIUS MAXIMUM
