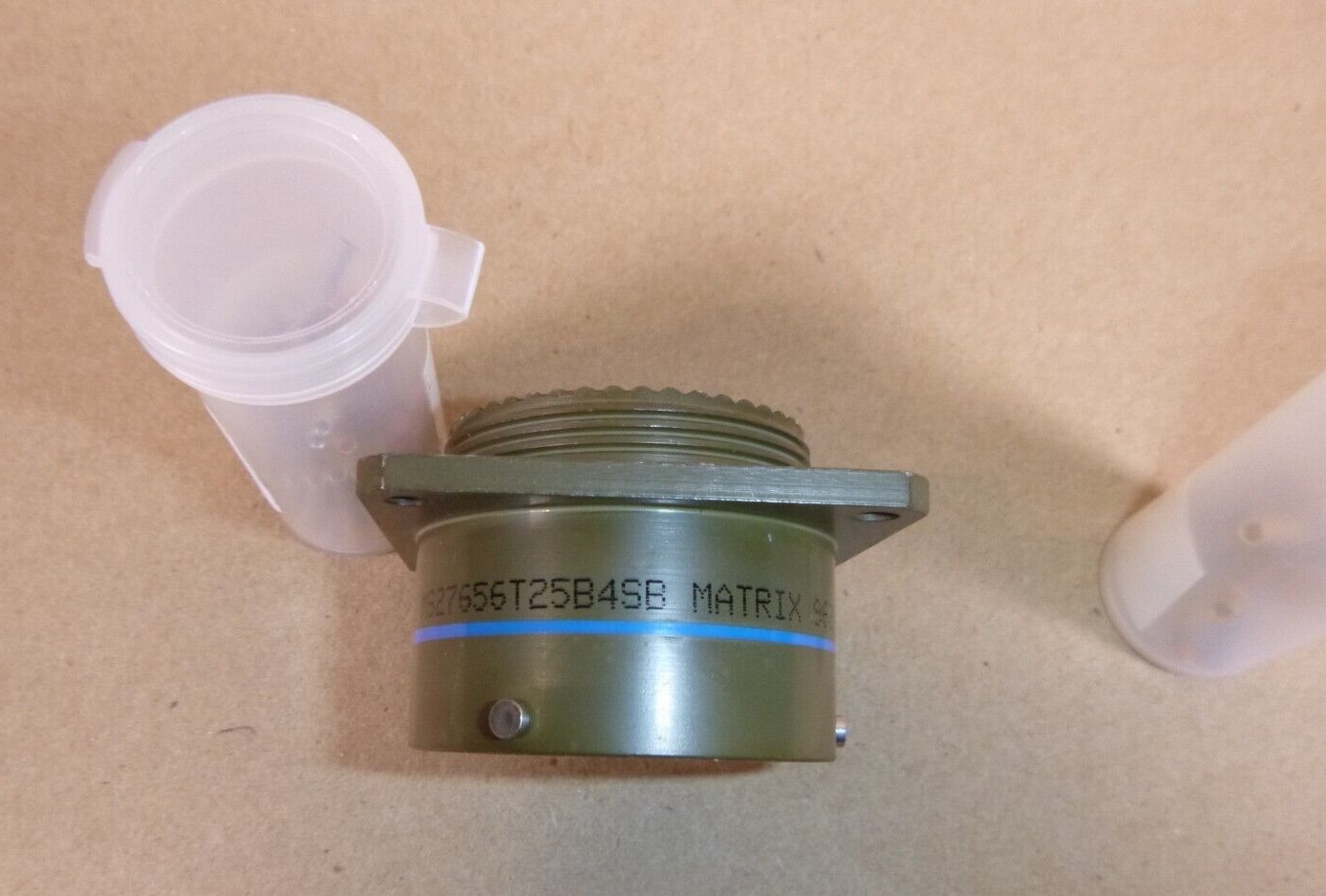

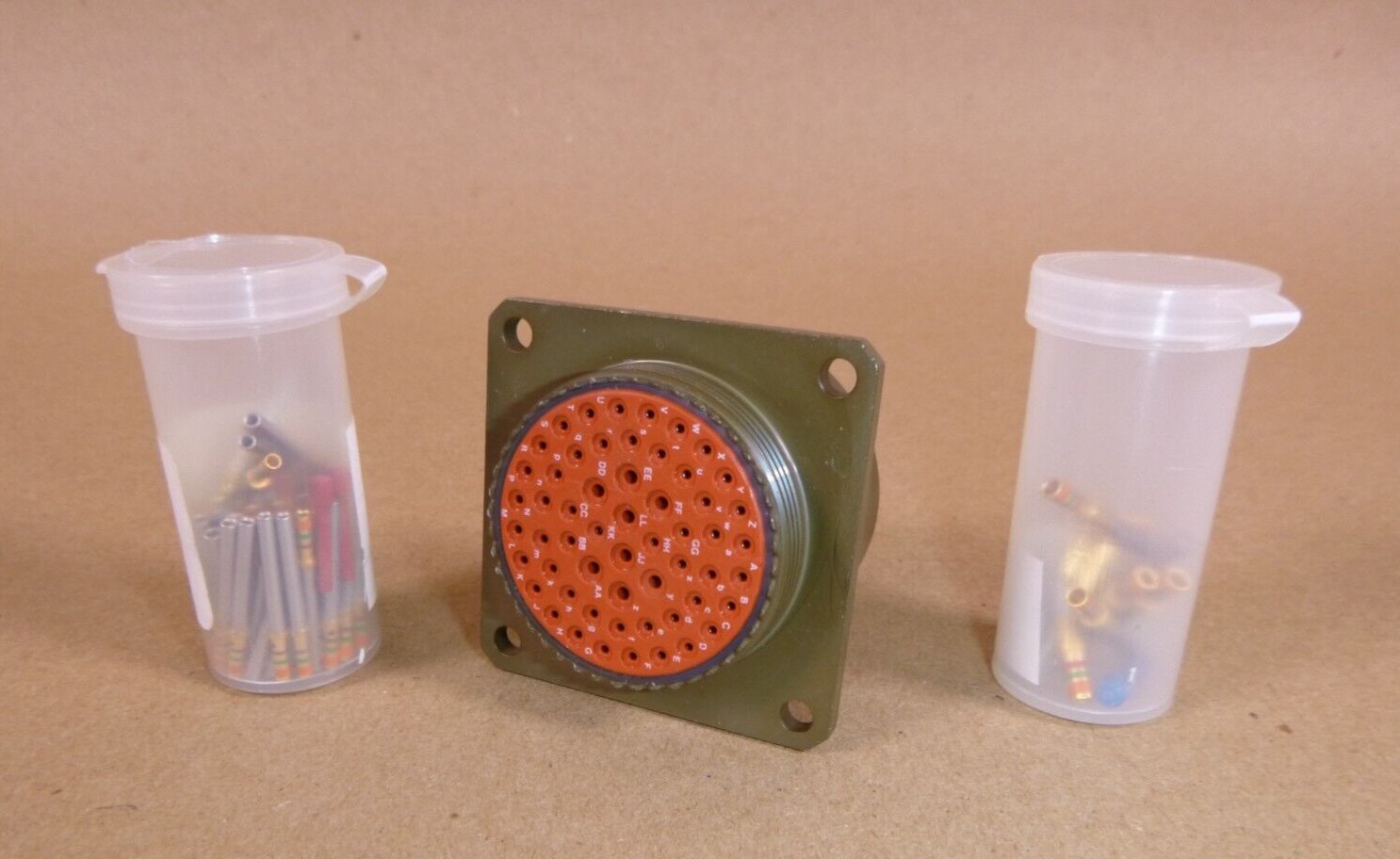

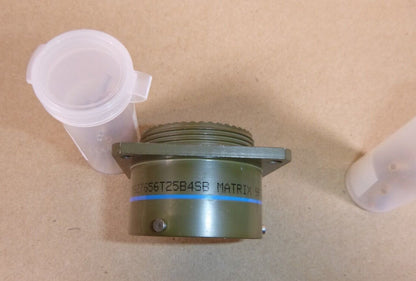

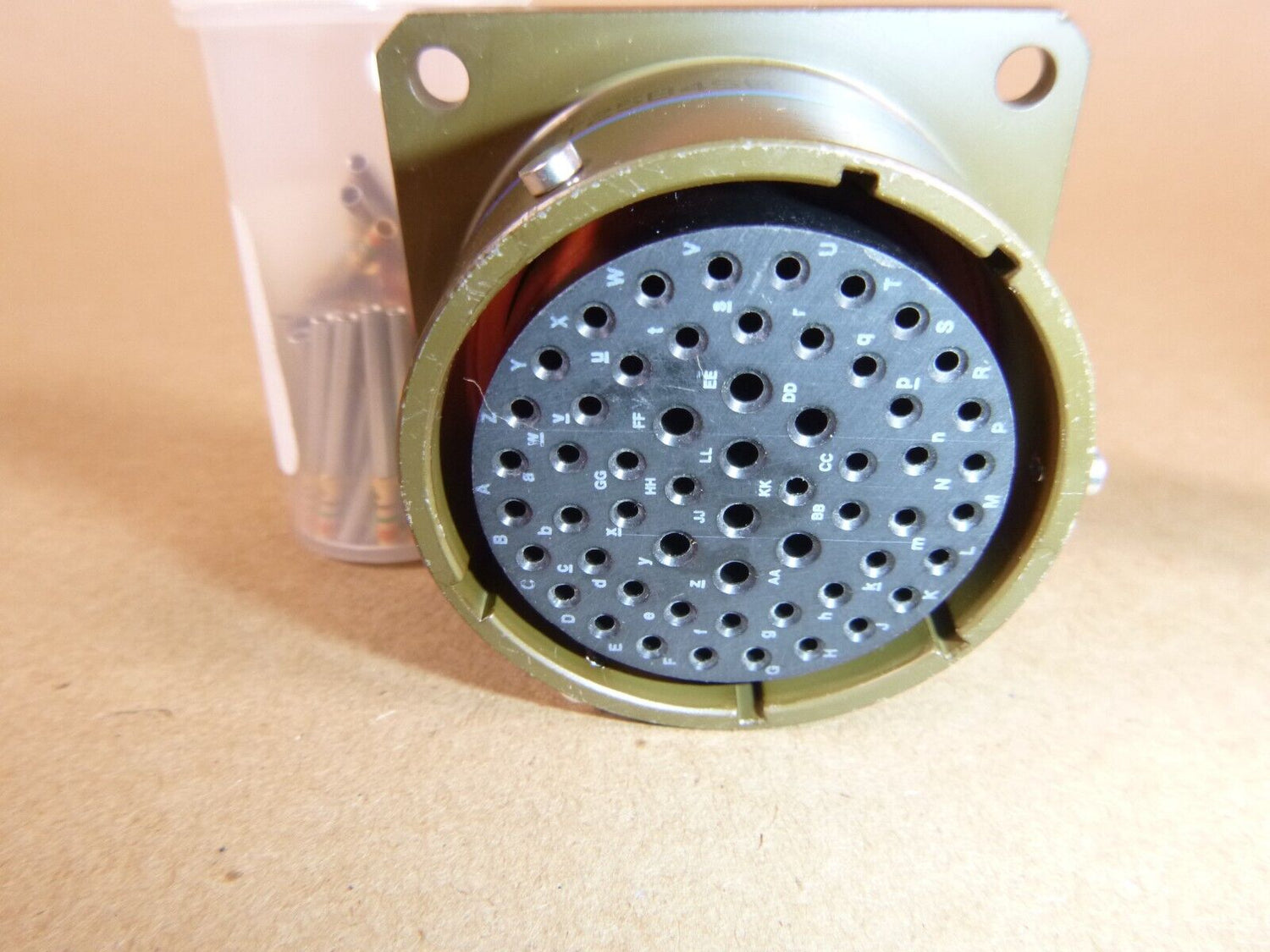

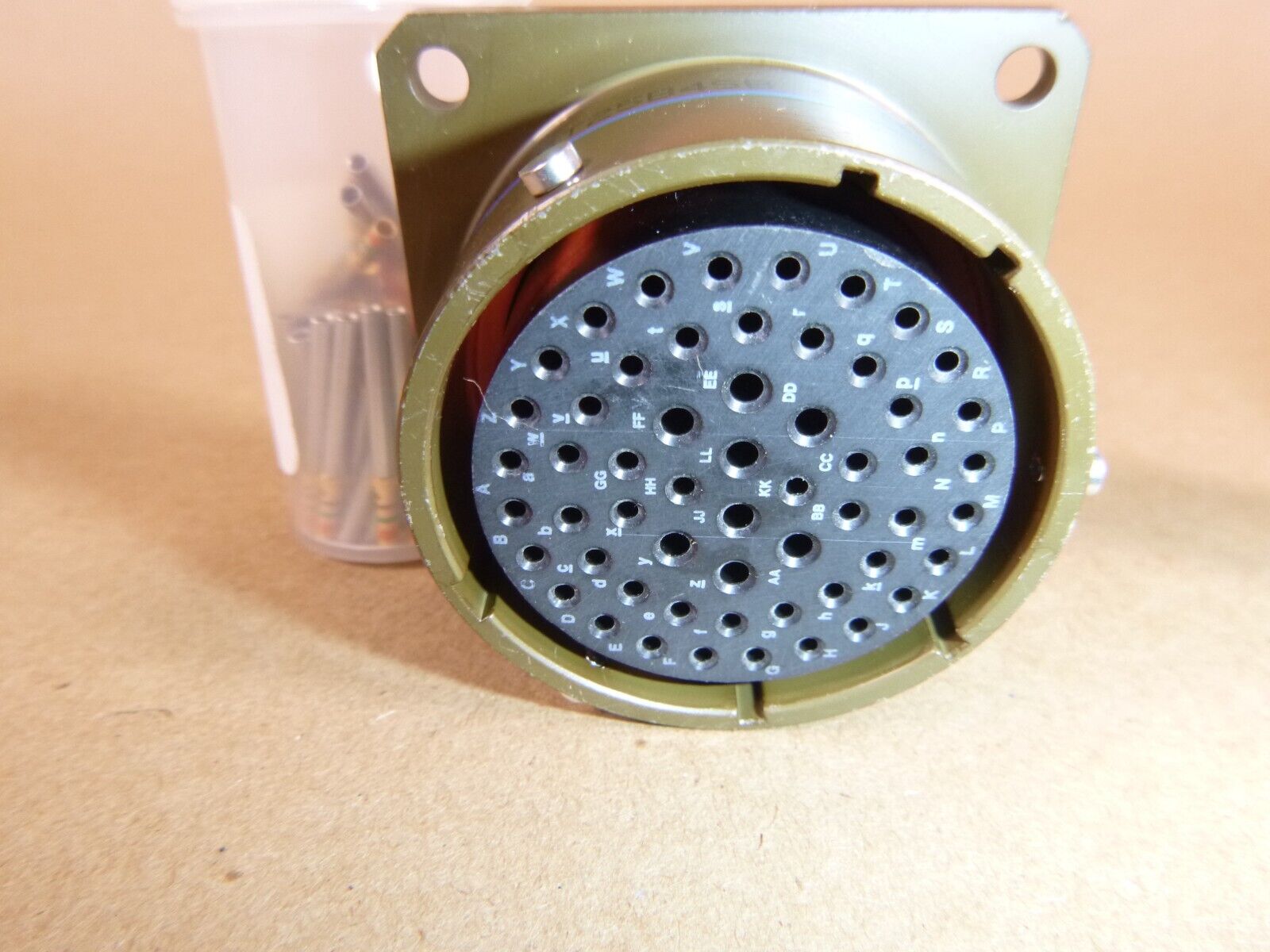

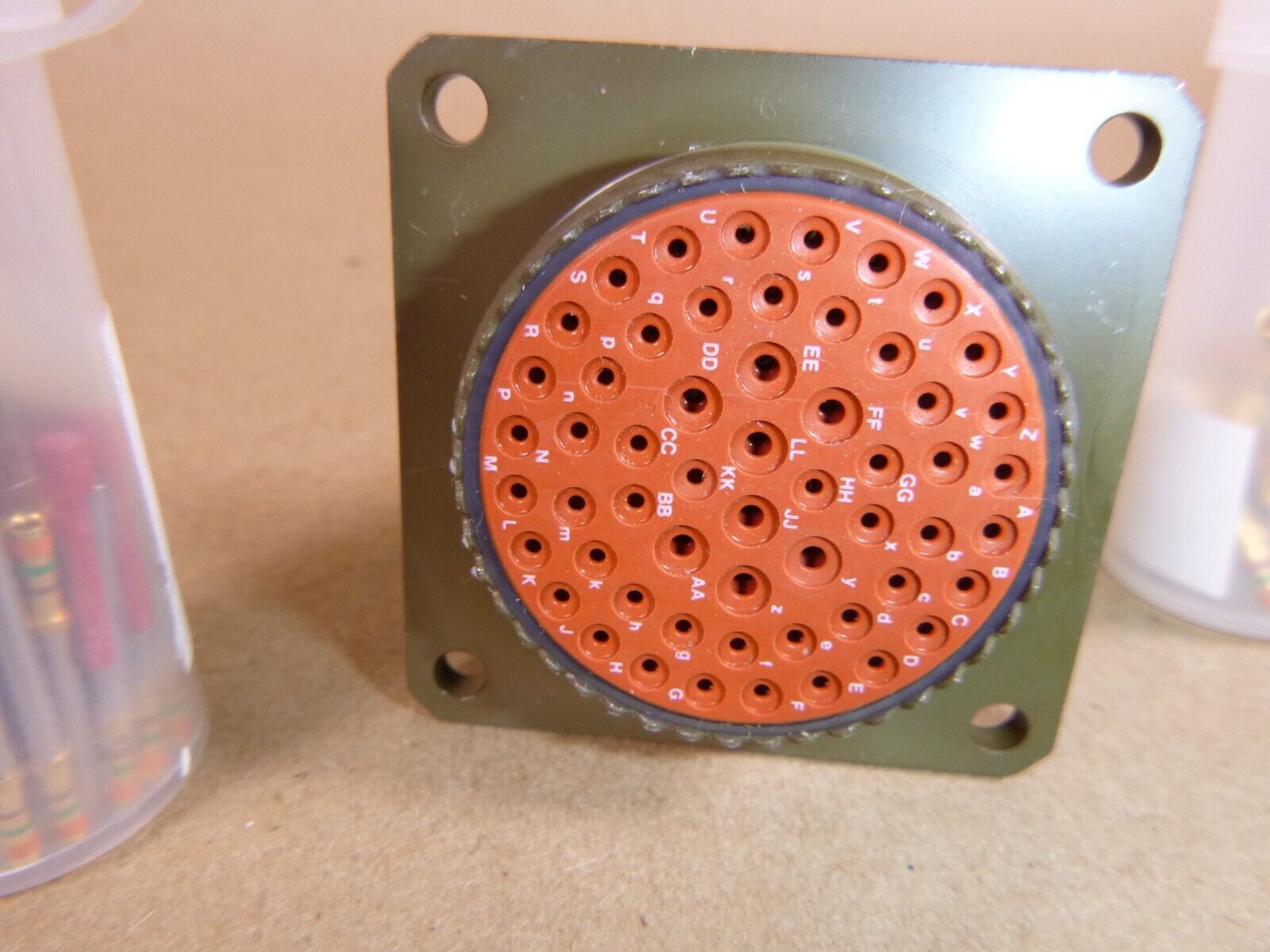

Circular MIL Spec Connector 56P Sz25 Wall Mount Receptacle Socket MS27656T25B4SB

$137.00
Availability: In-Stock
Quantity
Call: 702-268-8156
Circular MIL Spec Connector 56P Sz25 Wall Mount Receptacle Socket MS27656T25B4SB



Technical Characteristics

III BODY STYLE
(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLING
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE
(AFQK) 0.785 INCHES MINIMUM AND 0.790 INCHES MAXIMUM
BODY STYLE
(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLING
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT
(AEBW) 1.500 INCHES NOMINAL
CONNECTOR LOCKING METHOD
(AFRV) BAYONET PIN
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 25-4 SINGLE MATING END
CONTACT SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CRBJ) MIL-G-45204 MIL SPEC SINGLE TREATMENT RESPONSE SINGLE MATING END ALL CONTACT GROUPINGS
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END ALL CONTACT GROUPINGS
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH
(AEHA) 1.500 INCHES NOMINAL
ENVIRONMENTAL PROTECTION
(ADZC) MOISTURE PROOF AND SALT WATER RESISTANT AND VIBRATION PROOF AND CORROSION RESISTANT AND DUST RESISTANT AND FUEL RESISTANT AND FUNGUS RESISTANT AND HUMIDITY RESISTANT AND OIL RESISTANT AND SHOCK RESISTANT AND THERMAL SHOCK RESISTANT AND VIBRATION RESISTANT
FEATURES PROVIDED
(CBBL) SCOOPPROOF DESIGN
INCLUDED CONTACT QUANTITY
(CXCG) 48 SINGLE MATING END 2ND CONTACT GROUPING
INCLUDED CONTACT QUANTITY
(CXCG) 8 SINGLE MATING END 1ST CONTACT GROUPING
INCLUDED CONTACT TYPE
(CXCL) ROUND SOCKET SINGLE MATING END ALL CONTACT GROUPINGS
INSERT POSITION IN DEG
(AFRP) 95.0 AND 132.0 AND 232.0 AND 260.0 AND 334.0
INSERT MATERIAL
(CQZG) PLASTIC EPOXY SINGLE MATING END
OPERATING TEMP RATING
(AWTN) -65.0 DEG CELSIUS MINIMUM AND 175.0 DEG CELSIUS MAXIMUM
OVERALL HEIGHT
(ABKW) 1.812 INCHES MINIMUM AND 1.832 INCHES MAXIMUM
OVERALL LENGTH
(ABHP) 1.290 INCHES MAXIMUM
OVERALL WIDTH
(ABMK) 1.812 INCHES MINIMUM AND 1.832 INCHES MAXIMUM
MATING END QUANTITY
(AFQW) 1
NOMINAL THREAD SIZE
(CQJX) 1.438 INCHES
NOMINAL THREAD LENGTH
(AKMG) 0.219 INCHES
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL SURFACE TREATMENT
(CSWM) CADMIUM
SHELL TYPE
(AFRT) SOLID
SHELL SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(CTBC) QQ-P-416 FED SPEC SINGLE TREATMENT RESPONSE
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.056 GOLD GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD
UNTHREADED MOUNTING HOLE DIAMETER
(AEBV) 0.142 INCHES MINIMUM AND 0.157 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA
(ZZZK) 96906-MS27656 GOVERNMENT STANDARD
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END ALL CONTACT GROUPINGS
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END ALL CONTACT GROUPINGS
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-38999 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD QUANTITY PER INCH
(CMLP) 18
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREADED DEVICE TYPE
(AFQR) BACK SHELL
