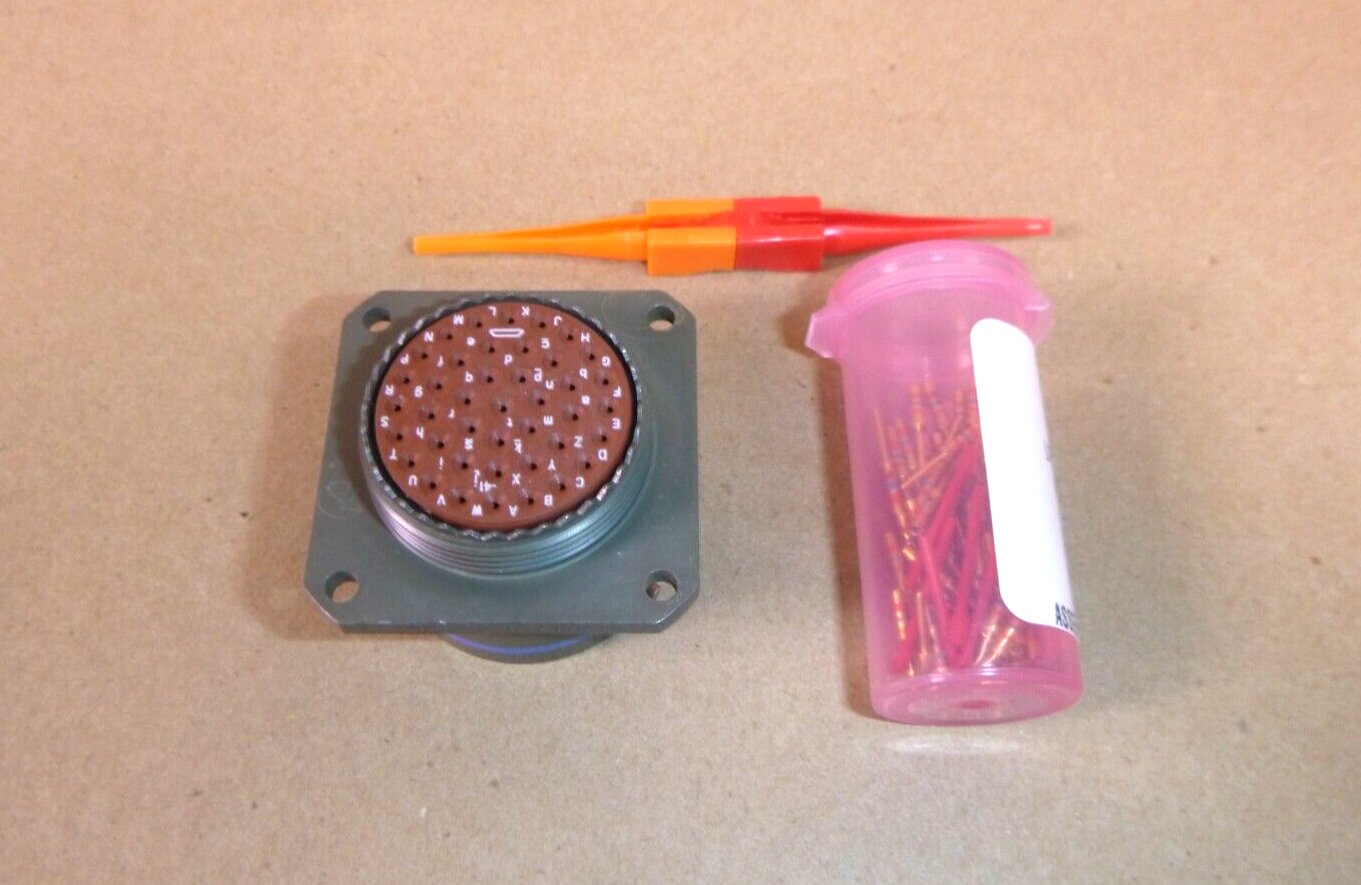

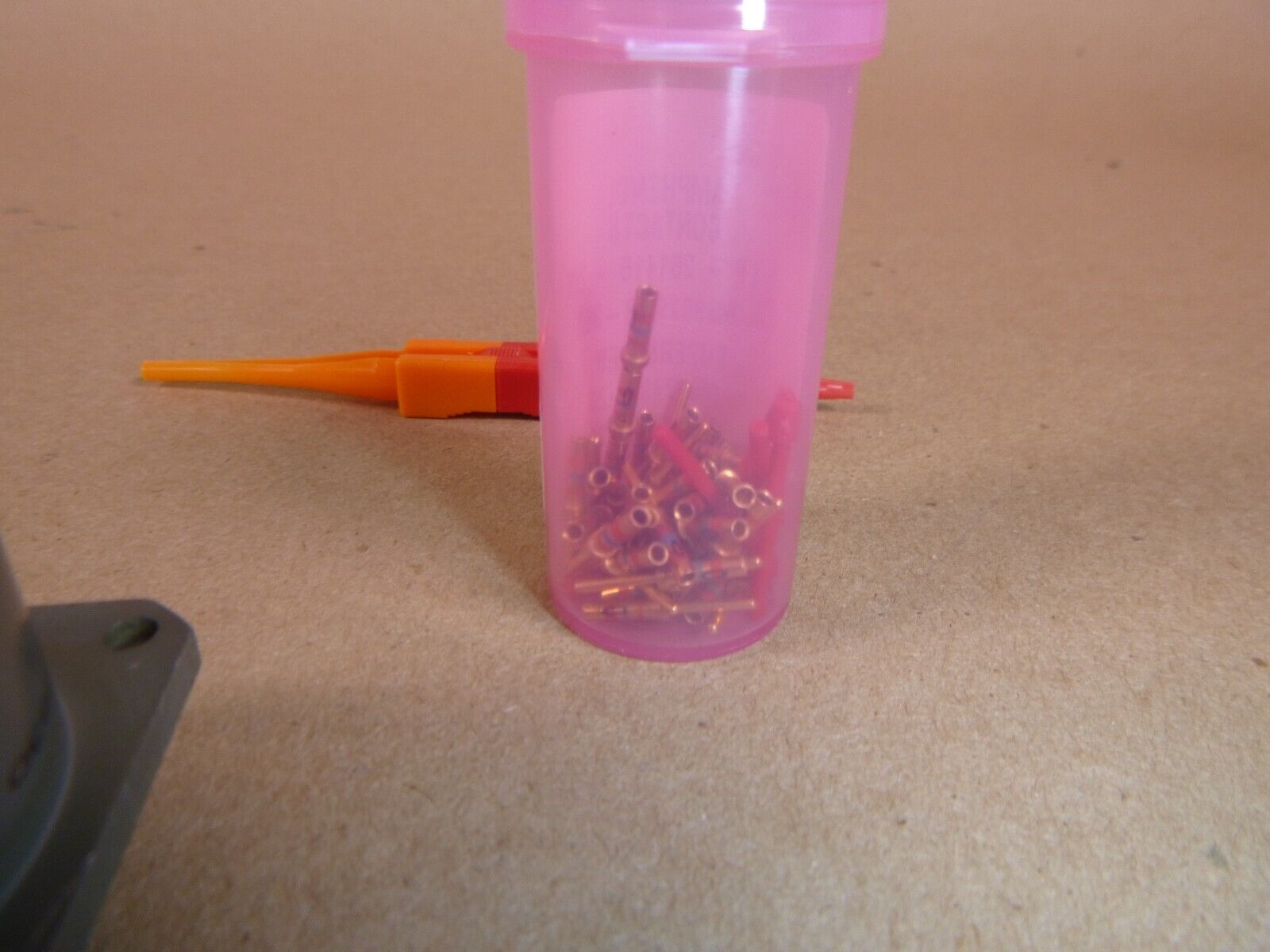

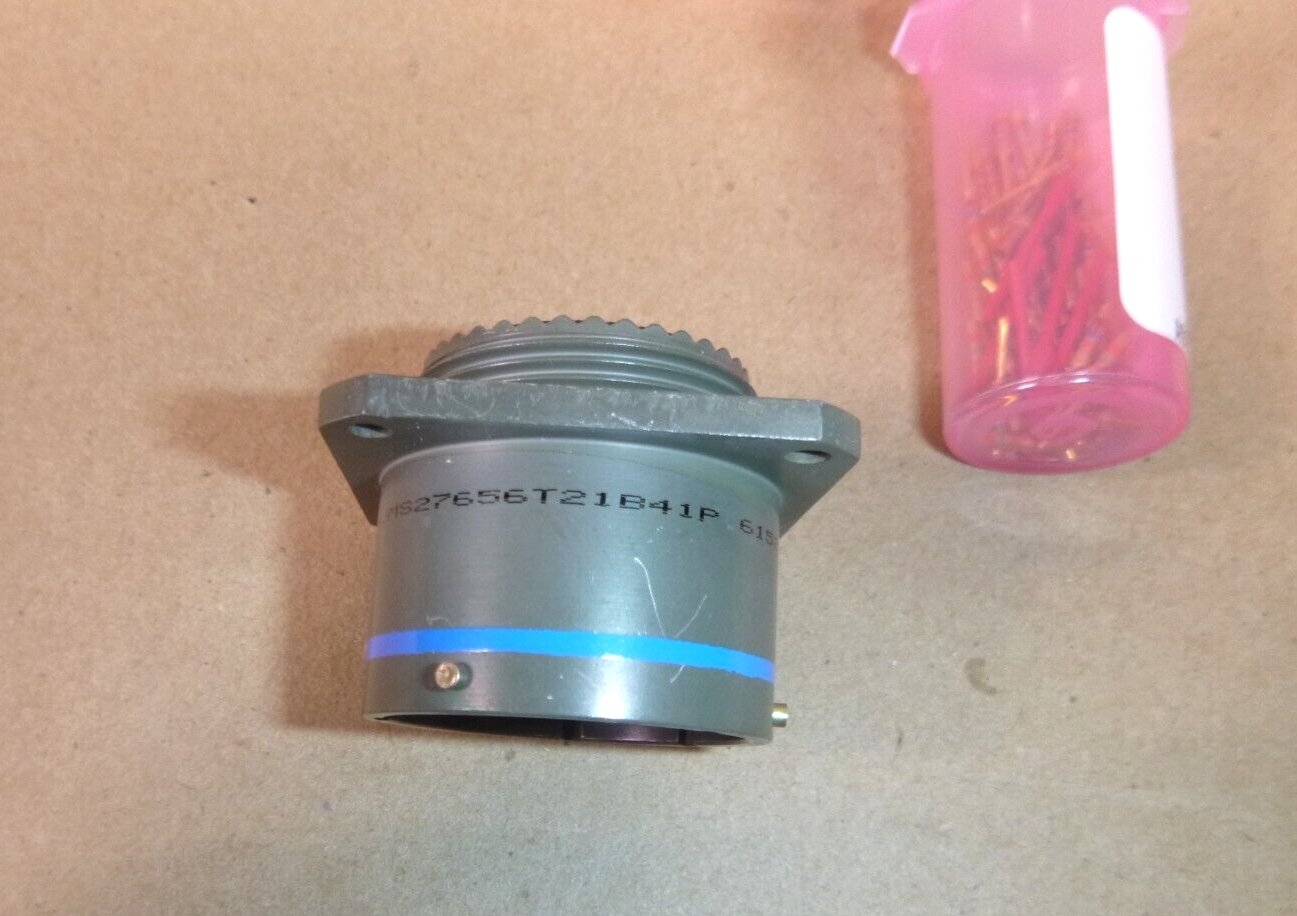

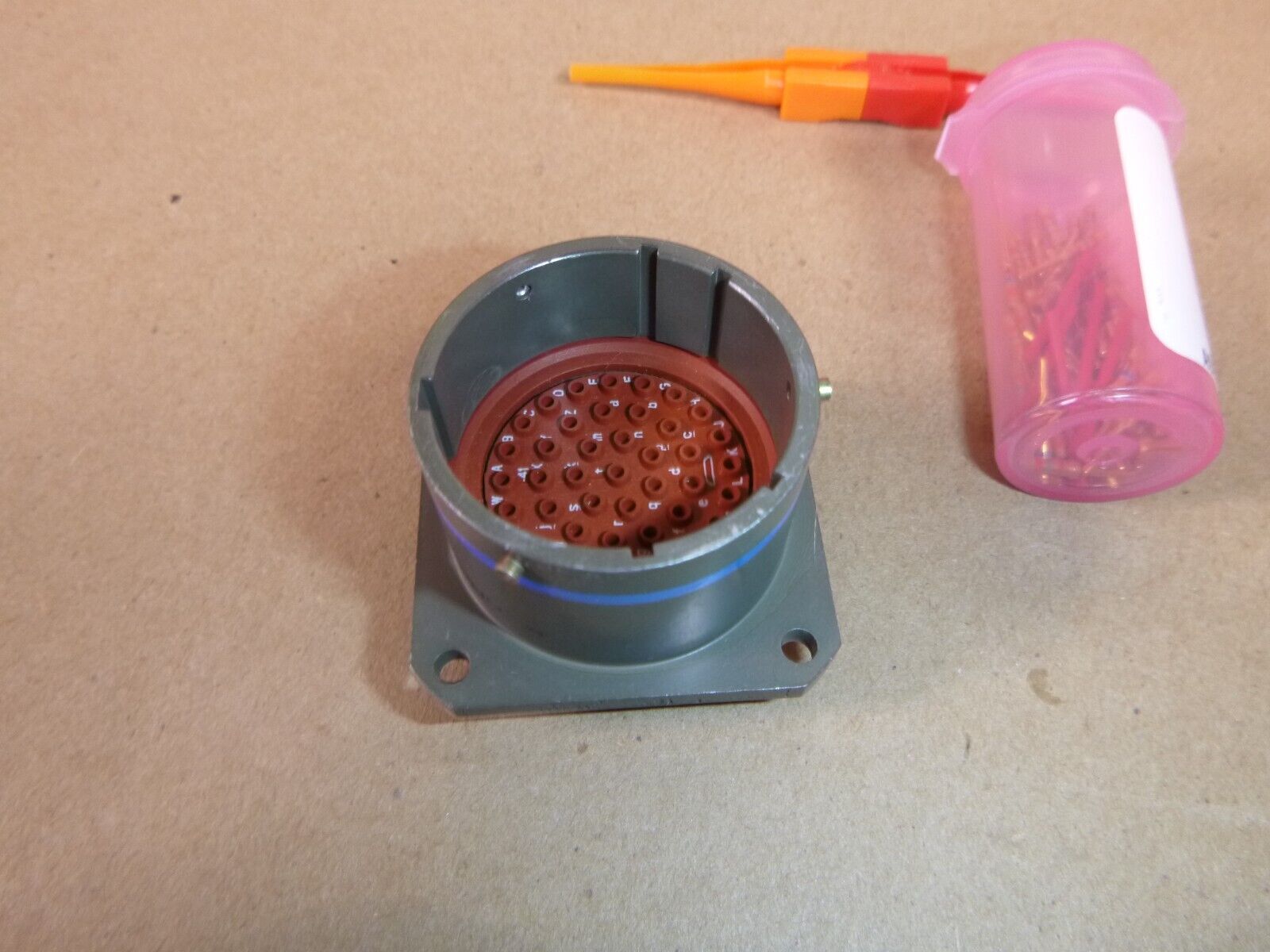

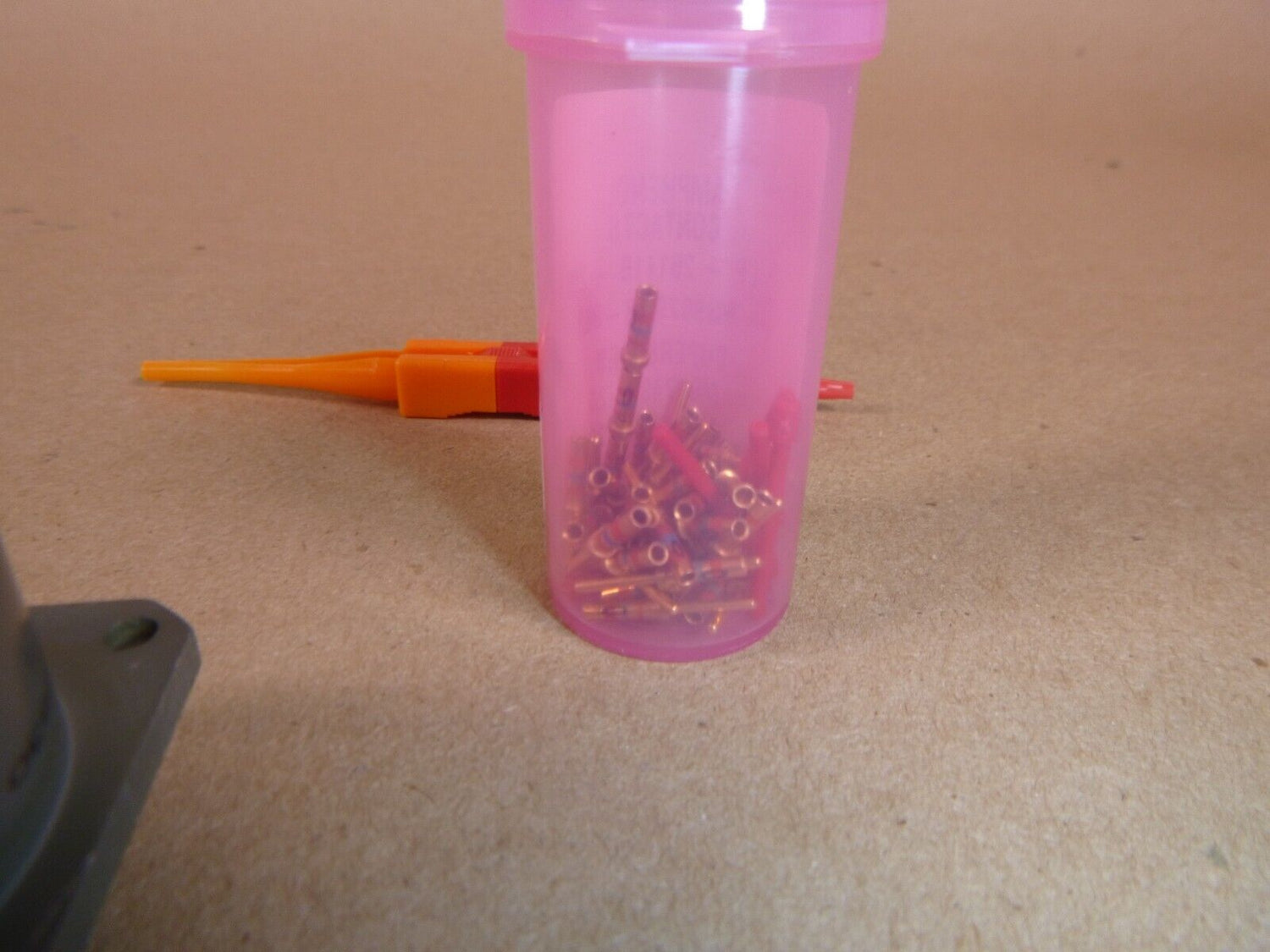

Circular MIL Spec Connector 41P SIZE 21 PIN MS27656T21B41P, 5935-01-042-5135

Circular MIL Spec Connector 41P SIZE 21 PIN MS27656T21B41P, 5935-01-042-5135

$39.95
Availability: In-Stock
Quantity
Add To Wishlist
Add To Compare
Call: 702-268-8156
Circular MIL Spec Connector 41P SIZE 21 PIN MS27656T21B41P, 5935-01-042-5135


TECHNICAL CHARACTERISTICS

DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH
(AEHA) 1.250 INCHES NOMINAL
DISTANCE FROM MOUNTING SHOULDER TO FRONT FACE
(AFQK) 0.785 INCHES MINIMUM AND 0.790 INCHES MAXIMUM
BODY STYLE
(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLING
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT
(AEBW) 1.250 INCHES NOMINAL
CONNECTOR LOCKING METHOD
(AFRV) BAYONET PIN
CONTACT MATERIAL
(CQTZ) COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT POSITION ARRANGEMENT STYLE
(AFQX) 21-41 SINGLE MATING END
CONTACT REMOVABILITY
(AFQZ) REMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT
(CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPING AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
ENVIRONMENTAL PROTECTION
(ADZC) MOISTURE PROOF AND VIBRATION RESISTANT
INCLUDED CONTACT QUANTITY
(CXCG) 41 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE
(CXCL) ROUND PIN SINGLE MATING END SINGLE CONTACT GROUPING
INSERT POSITION IN DEG
(AFRP) 0.0
OVERALL HEIGHT
(ABKW) 1.562 INCHES NOMINAL
OVERALL LENGTH
(ABHP) 1.290 INCHES MAXIMUM
OVERALL WIDTH
(ABMK) 1.562 INCHES NOMINAL
MATING END QUANTITY
(AFQW) 1
NOMINAL THREAD LENGTH
(AKMG) 0.219 INCHES
NOMINAL THREAD SIZE
(CQJX) 1.188 INCHES
SHELL SURFACE TREATMENT
(CSWM) CADMIUM AND CHROMATE
SHELL MATERIAL
(CSPT) ALUMINUM ALLOY
SHELL TYPE
(AFRT) SOLID
POLARIZATION METHOD
(AFRN) KEYWAY OR MULTIPLE KEYWAY
PRECIOUS MATERIAL AND LOCATION
(PMLC) CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
PRECIOUS MATERIAL AND WEIGHT
(PMWT) 0.041 GOLD GRAINS, TROY AND 0.041 SILVER GRAINS, TROY
PRECIOUS MATERIAL
(PRMT) GOLD AND SILVER
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-38999 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
THREAD CLASS
(AAJD) 2A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD SERIES DESIGNATOR
(THSD) UNEF
THREADED DEVICE TYPE
(AFQR) BACK SHELL
UNTHREADED MOUNTING HOLE DIAMETER
(AEBV) 0.123 INCHES MINIMUM AND 0.138 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-C-38999 GOVERNMENT SPECIFICATION
TERMINAL LOCATION
(CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE
(CSCF) CRIMP SINGLE MATING END SINGLE CONTACT GROUPING
III BODY STYLE
(AAQL) STRAIGHT SHAPE, EXTERNAL COUPLING
