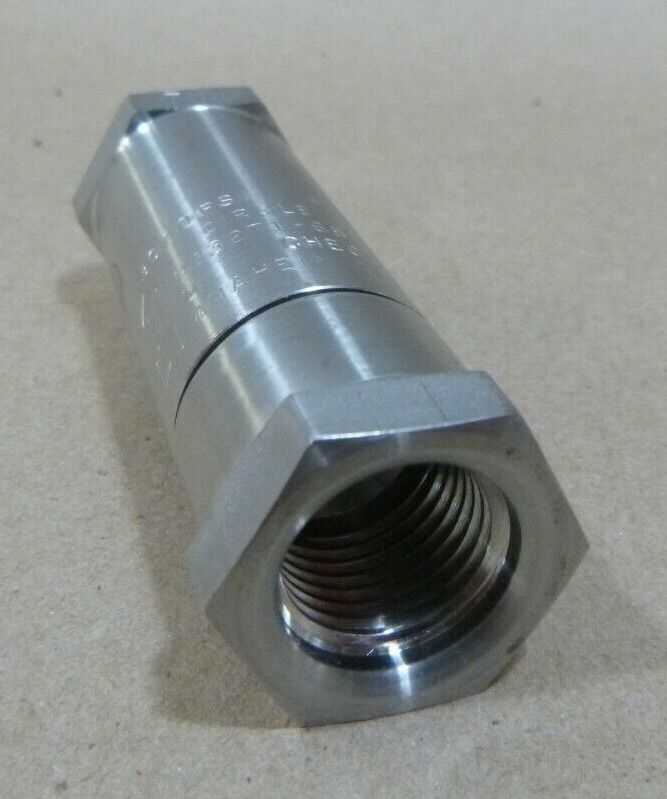

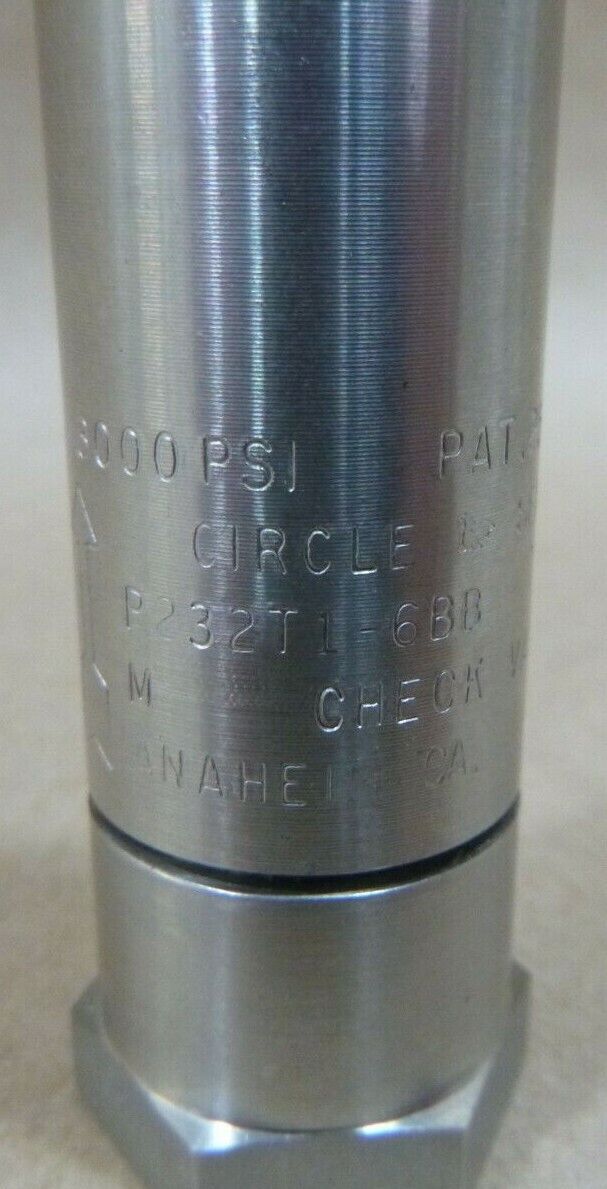

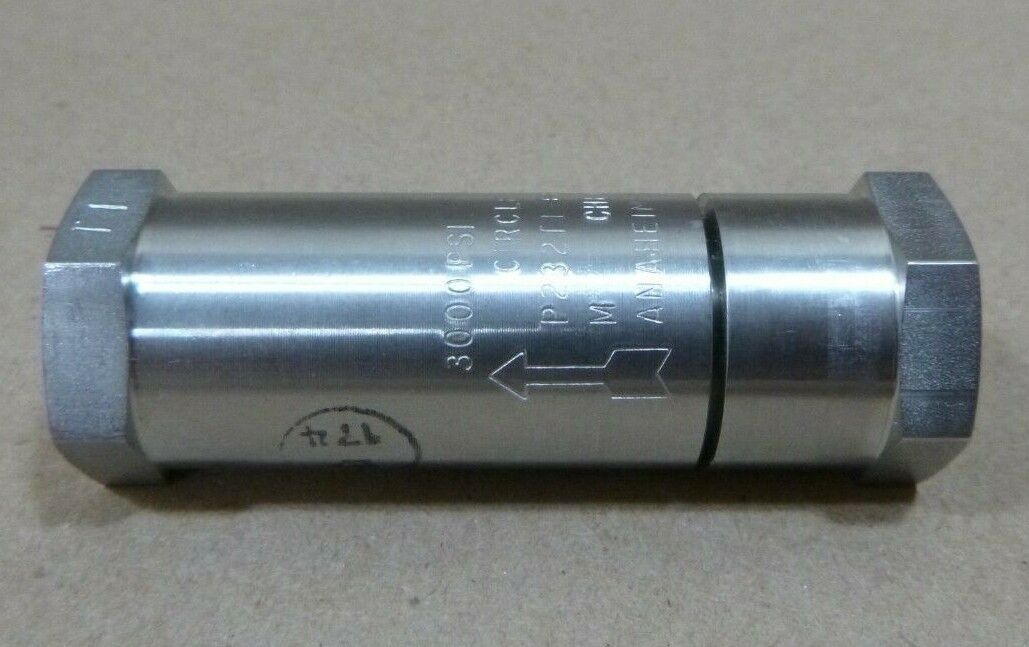

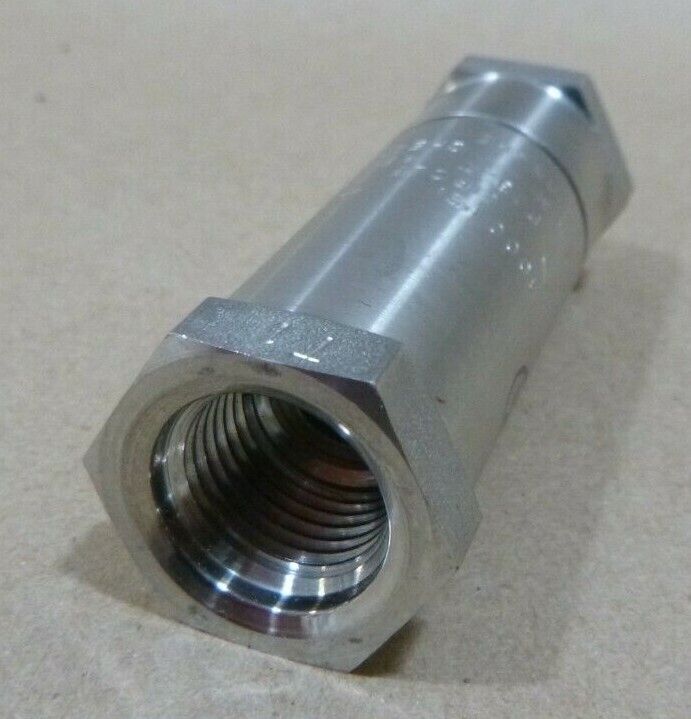

CIRCLE SEAL 232T1-6BB 200 SERIES CHECK VALVE 3000 PSI 1/4" NPT 4820-01-544-0867
Call: 702-268-8156
Series |
200 |
Body Material |
316 Stainless Steel |
O-Ring Material |
Viton |
Connection Size |
3/4 in |
End Connections (Inlet/Outlet) |
Female NPT |
Operating Pressure |
0 to 3000 psig |
Cracking Pressure |
0.5 to 1 psig |
Available Cracking Pressures |
0.1 to 25 psi |
Operating Temperature |
-20 to 400 ºF |
Flow Coefficient (Cv) |
10.3 |
Spring Material |
302 Stainless Steel |
Proof Pressure |
4500 psig |
Rated Burst Pressure |
7500 psig |
Dim. A |
3.37 in |
Dim. B |
1.75 in |
Dim. C |
1 3/4 in |
Dim. D |
1.50 in |
Dim. E |
0.49 in |
Weight |
1.41 lbs |
Optional Body Material |
2024–T4/T351 aluminum303 stainless steel316 Stainless SteelBrassCarbon steel |
Optional End Connections |
B - Female Tube, AND10050C - Gyrolok® Tube FittingsK - British Parallel Pipe (Male)L - British parallel pipe (female)S - British Taper Pipe (Male)T - Male tube, AS4395 (MS33656)X - British Taper Pipe (Female) |
