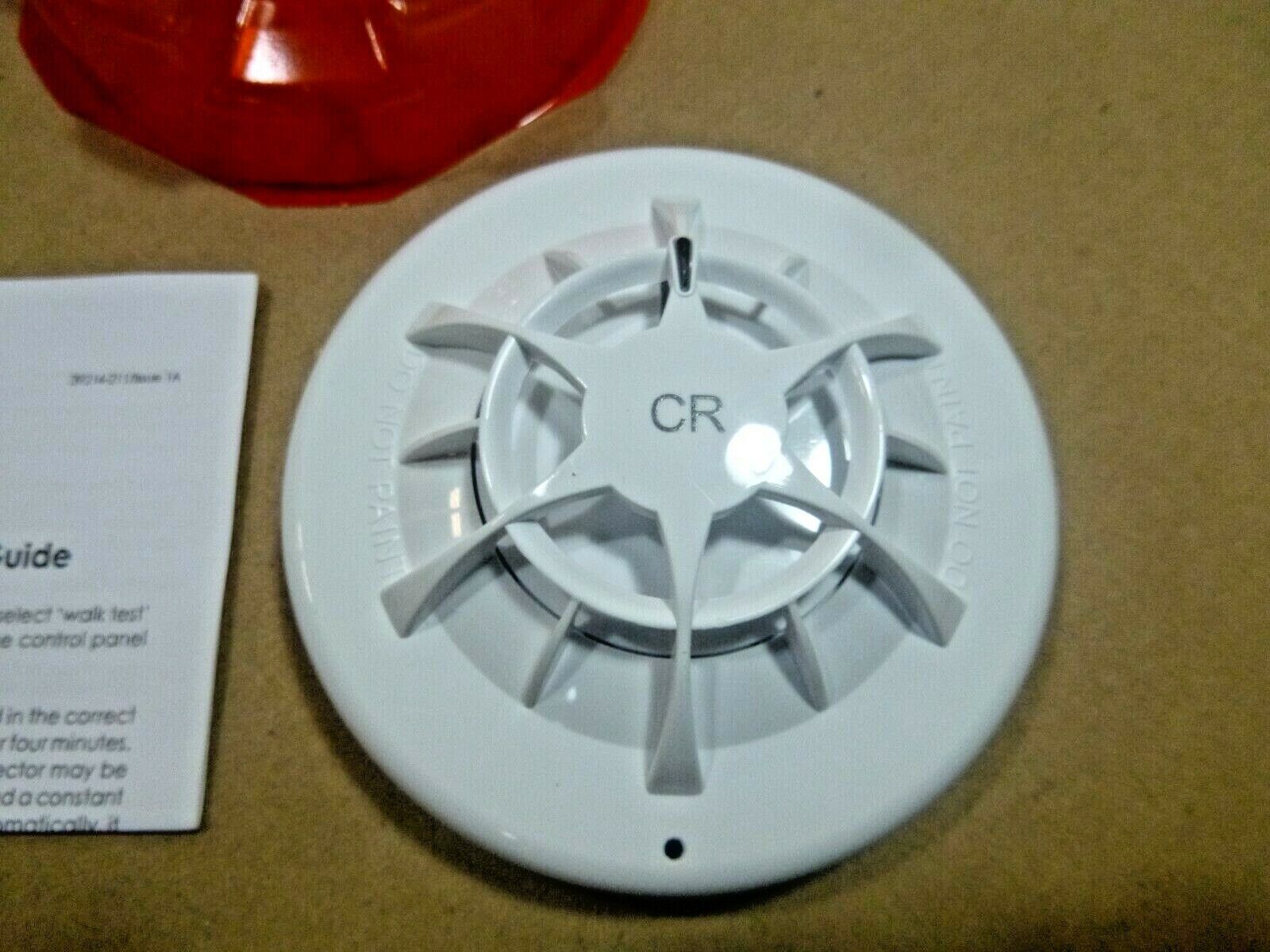

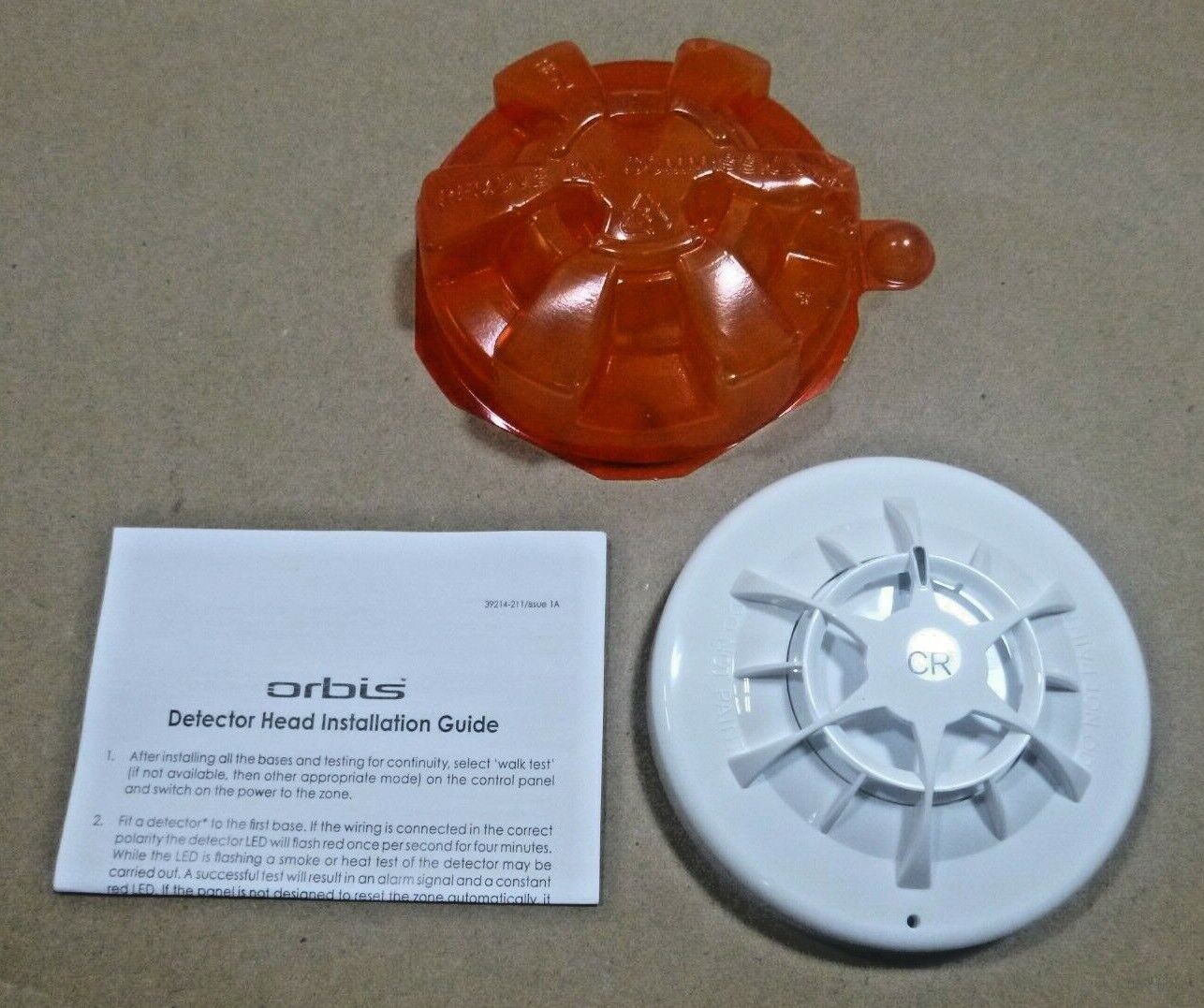

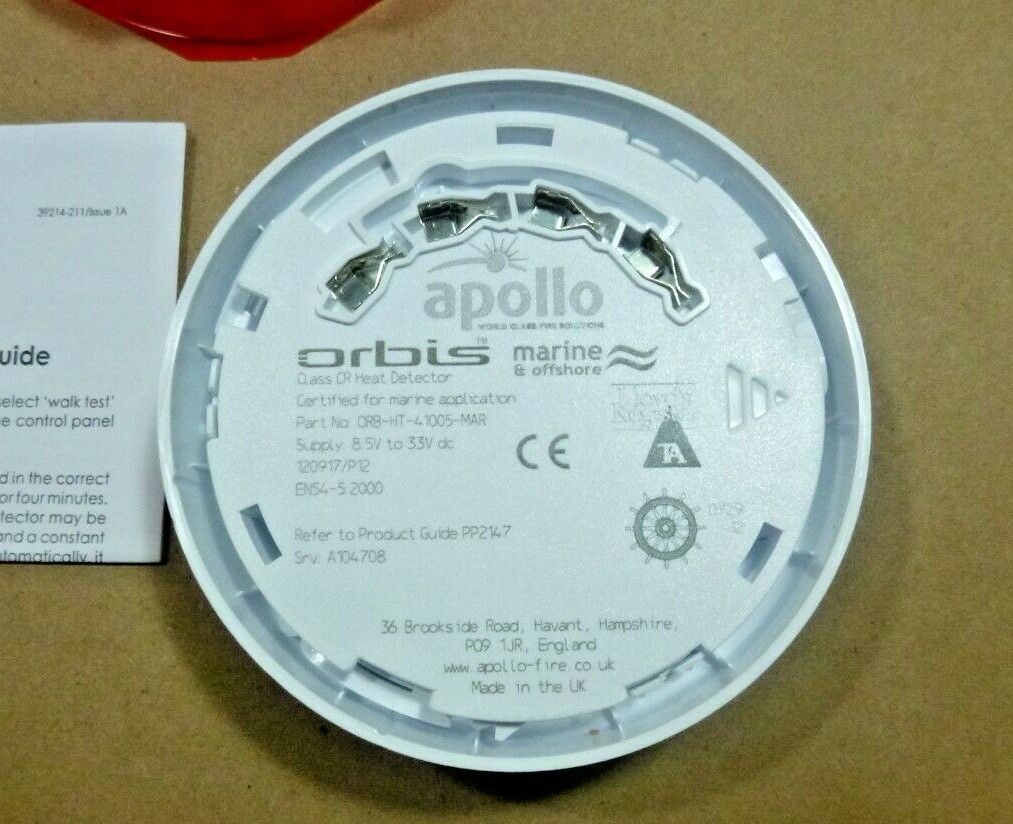

Apollo Orbis Marine 24 Volt CR Heat / Fire Detector ORB-HT-41005-MAR, 95μA
Call: 702-268-8156
Apollo Orbis Marine 24 Volt CR Heat / Fire Detector ORB-HT-41005-MAR, 95μA
Approved for use in marine environments
Modern, low-profile design
Transient rejection for false alarm reduction
TimeSaver® Base for fast installation
Wide operating temperature -40°C to +70°C
High humidity tolerance at up to 98% RH
Quiescent Current | 95μA |
Quiescent Current Tested At | 24V dc |
Sampling Frequency | Once every 4 seconds |
Polarity | L1 & L2 are polarity sensitive |
Minimum 'Detector Active' Voltage | 6V |
Holding Voltage (Min) | 5V |
Holding Voltage (Max) | 33V |
Holding Voltage | 5 to 33V |
Minimum Voltage To Light Alarm LED | 5V |
Alarm Reset Voltage | <1V |
Alarm Reset Time | 1s |
Alarm Load | 600Ω (B6) |
