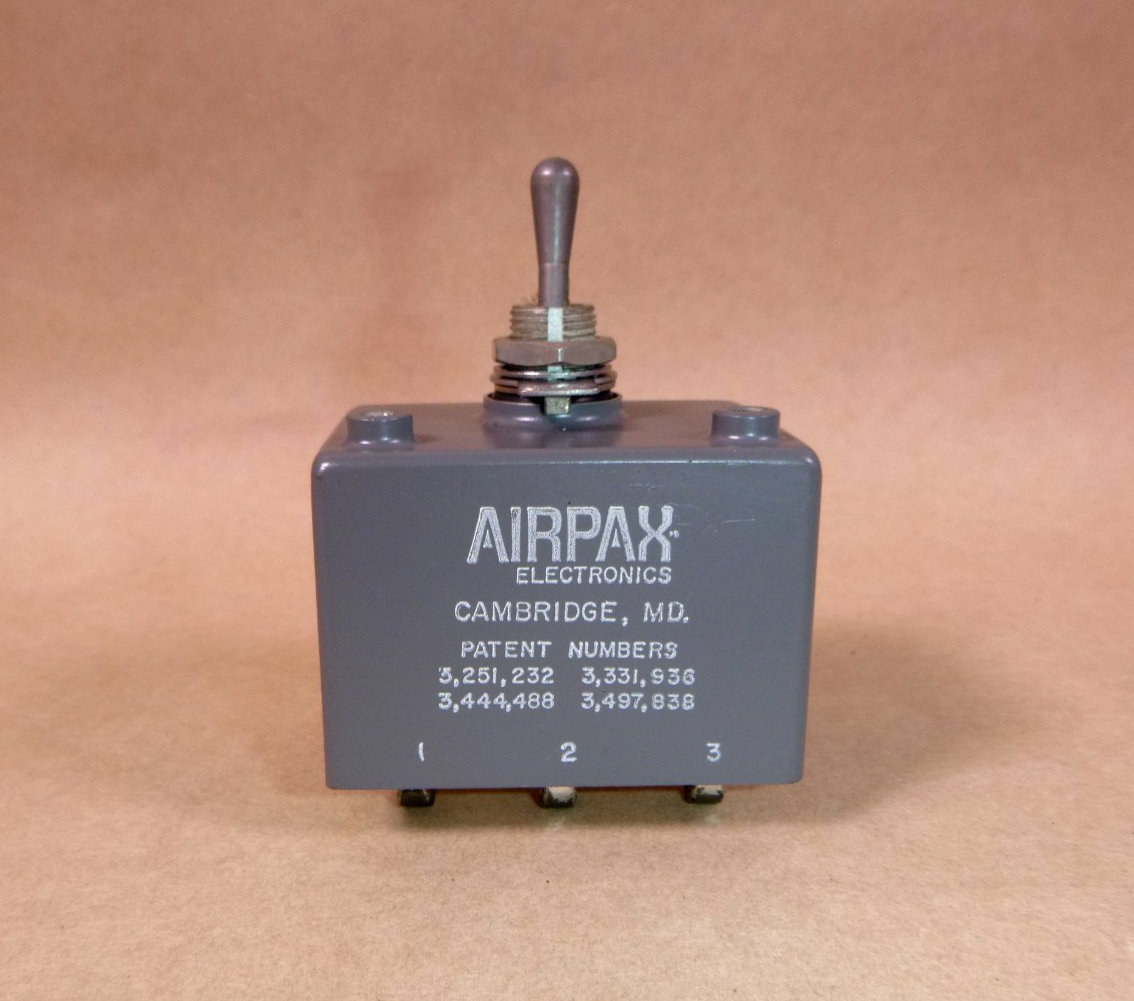

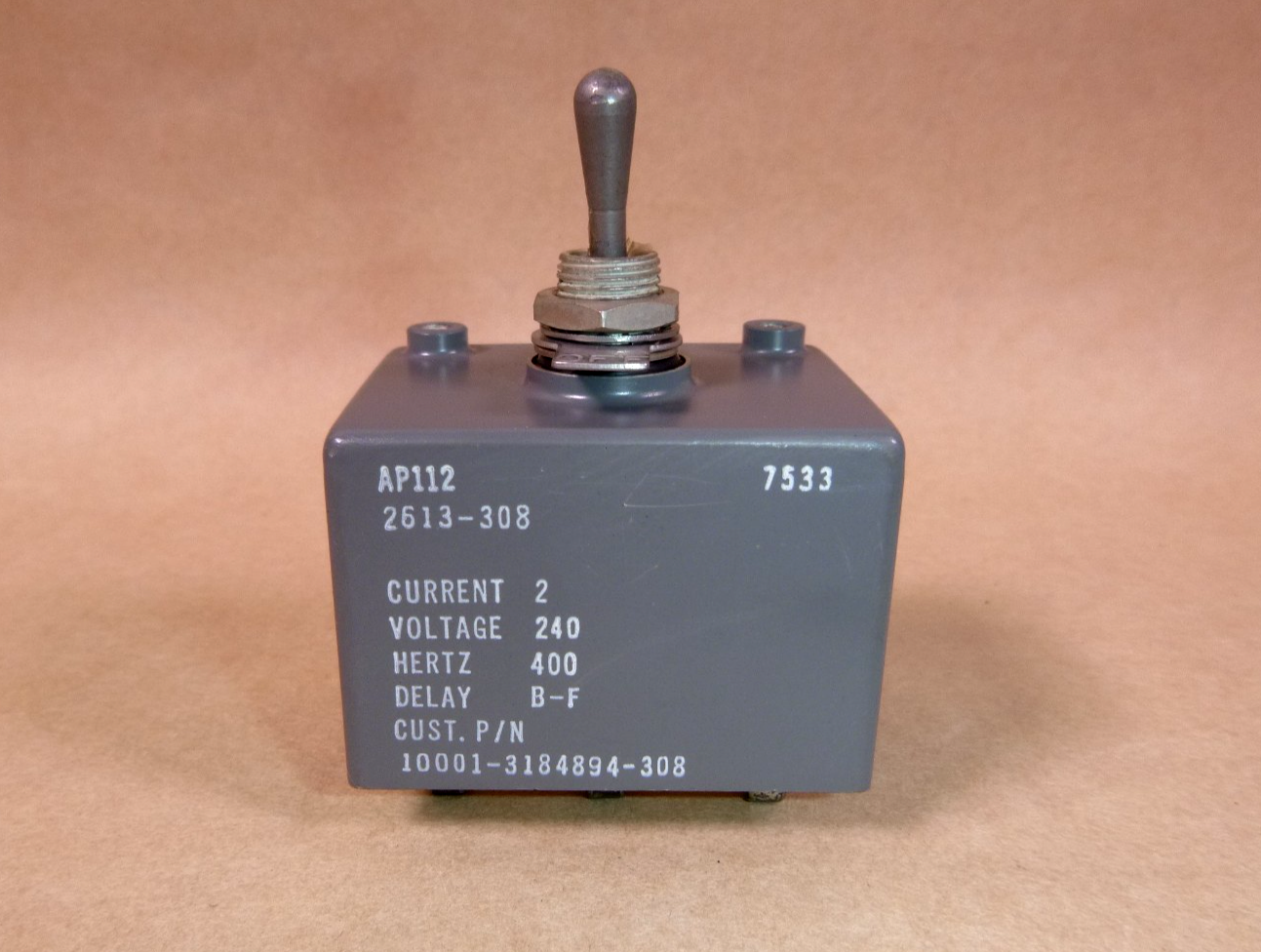

AP112-2613-308 Sensata-Airpax Circuit Breaker Magnetic 240 Volt 400 Hz 6 Wire
-
Regular price
-
-
Sale price
-
$648.95
AP112-2613-308 Sensata-Airpax Circuit Breaker Magnetic
240 Volt 400 Hz 6 Wire
NEW MILITARY SURPLUS WITHOUT THE FACTORY PACKAGING
- ULTIMATE TRIP TIME PER POLE IN SECONDS
- (CPRP) 3.000 MINIMUM ALL LOCATIONS AND 60.000 MAXIMUM ALL LOCATIONS
- CASE MATERIAL
- (ADTV) METAL
- ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT
- (CPRN) UNABLE TO DECODE
- ACTUATOR FUNCTION
- (CPRW) TRIP-RESET
- ACTUATOR POSITION DESIGNATION
- (CPRX) AT POLE TWO
- BODY LENGTH
- (ADAQ) 1.937 INCHES MAXIMUM
- BODY STYLE
- (AAQL) MULTIPOLE-SINGLE ACTUATOR TYPE
- BODY WIDTH
- (ADAT) 1.562 INCHES MAXIMUM
- BUSHING LENGTH
- (ABXD) 0.280 INCHES MINIMUM AND 0.380 INCHES MAXIMUM
- CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO LENGTH
- (AEBP) 0.625 INCHES NOMINAL
- CENTER TO CENTER DISTANCE BETWEEN TERMINALS PARALLEL TO WIDTH
- (AEBQ) 0.906 INCHES MAXIMUM
- CIRCUIT PROTECTION TYPE
- (CPRH) OVERCURRENT ALL LOCATIONS
- FEATURES PROVIDED
- (CBBL) HIGH INRUSH PROTECTION
- FRAGILITY FACTOR
- (AFJN) MODERATELY RUGGED
- FREQUENCY IN HERTZ
- (FREQ) 400.0 ALL LOCATIONS
- INTERNAL TRIP RELEASE CONFIGURATION
- (CPSM) SERIES TRIP ALL LOCATIONS
- MAIN CONTACT TRIPPING MECHANISM TYPE
- (CPRR) TRIP FREE
- OPERATING VOLTAGE TYPE AND RATING PER POLE IN VOLTS
- (CPRF) 240.0 AC ALL LOCATIONS

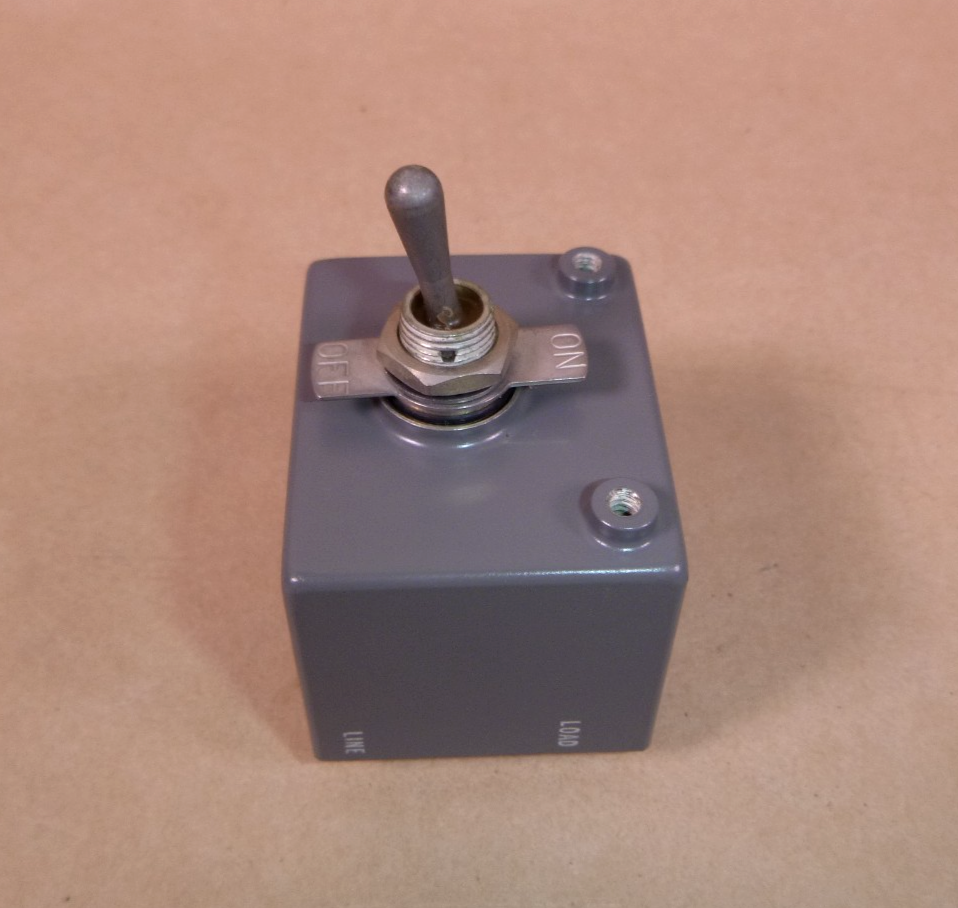

- MANUAL ACTUATOR TYPE AND QUANTITY
- (CPRT) 1 TOGGLE
- MAXIMUM CONTINUOUS LOAD CURRENT RATING PER POLE
- (CPLM) 2.0 AMPERES AC ALL LOCATIONS
- MAXIMUM INTERRUPTING CAPACITY CURRENT TYPE AND RATING PER POLE IN AMPS
- (CPRG) 300.0 AC ALL LOCATIONS
- MOUNTING FACILITY TYPE AND QUANTITY
- (AXHR) 1 THREADED BUSHING WITH PANEL SEAL
- MOUNTING SURFACE TO TERMINAL END DISTANCE
- (AJWX) 1.828 INCHES MAXIMUM
- NOMINAL THREAD SIZE
- (CQJX) 0.375 INCHES
- POLE QUANTITY
- (AKPX) 3
- RESET METHOD
- (CPRQ) MANUAL
- SPECIAL HANDLING FEATURE
- (BBRJ) MAGNETIC
- THREAD QUANTITY PER INCH
- (CMLP) 32
- THREAD SERIES DESIGNATOR
- (THSD) UNEF
- TRIP DELAY TIME IN SECONDS PER RATED CONTINUOUS CURRENT
- (CQWN) 0.500 MINIMUM AT 200 PCT AND 9.000 MAXIMUM AT 200 PCT AND 1.750 MAXIMUM AT 400 PCT ALL LOCATIONS
- TRIP RELEASE CHARACTERISTIC
- (CPRL) TIME DELAY ALL LOCATIONS
- TRIP RELEASE METHOD
- (CPRJ) MAGNETIC ALL LOCATIONS
- ULTIMATE TRIP RATING OF CONTINUOUS CURRENT RATING PER POLE IN PERCENT
- (CPRN) 125.0 ALL LOCATIONS
- ULTIMATE TRIP TIME PER POLE IN SECONDS
- (CPRP) 3.000 MINIMUM AND 60.000 MAXIMUM ALL LOCATIONS
- STORAGE TYPE
- (BBRG) GENERAL PURPOSE WAREHOUSE

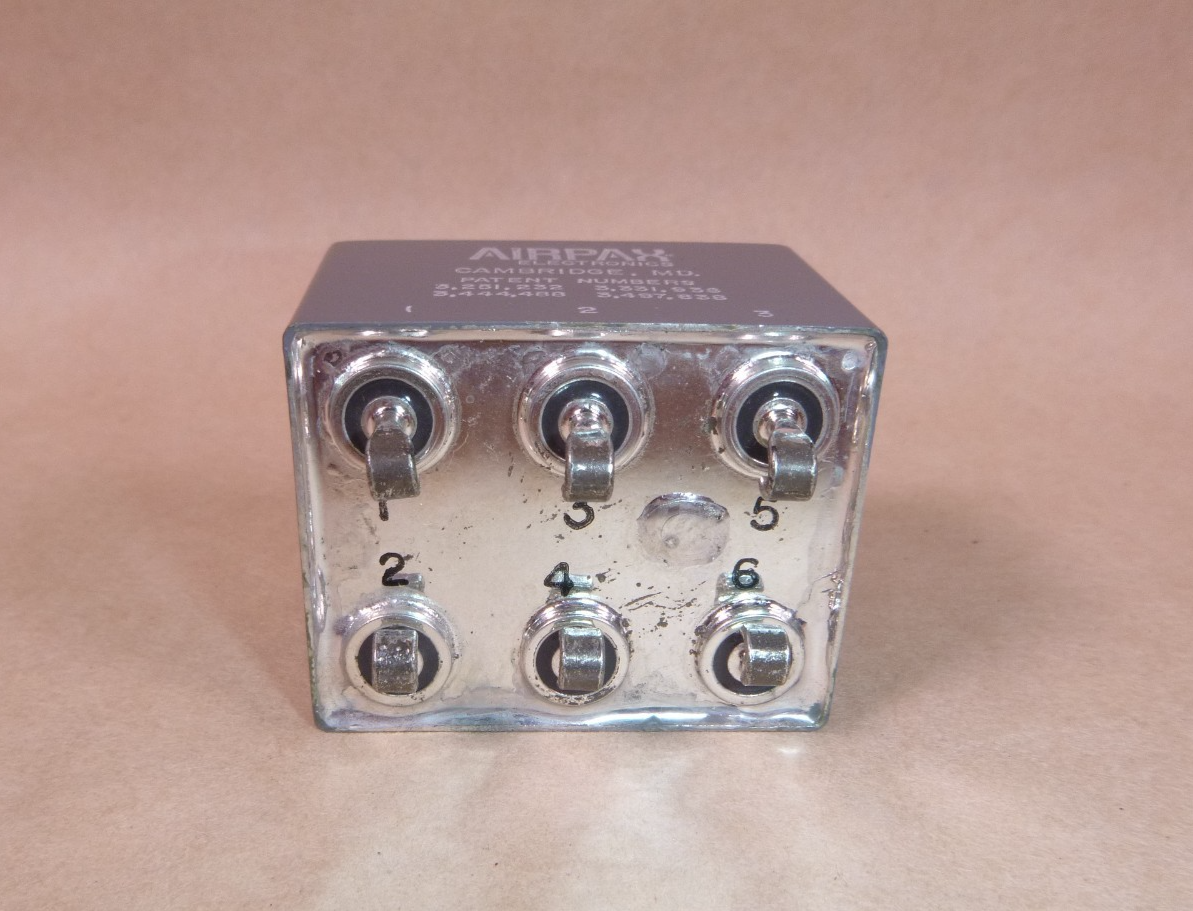

- TERMINAL TYPE AND QUANTITY
- (TTQY) 6 WIRE HOOK
- NEW SURPLUS
