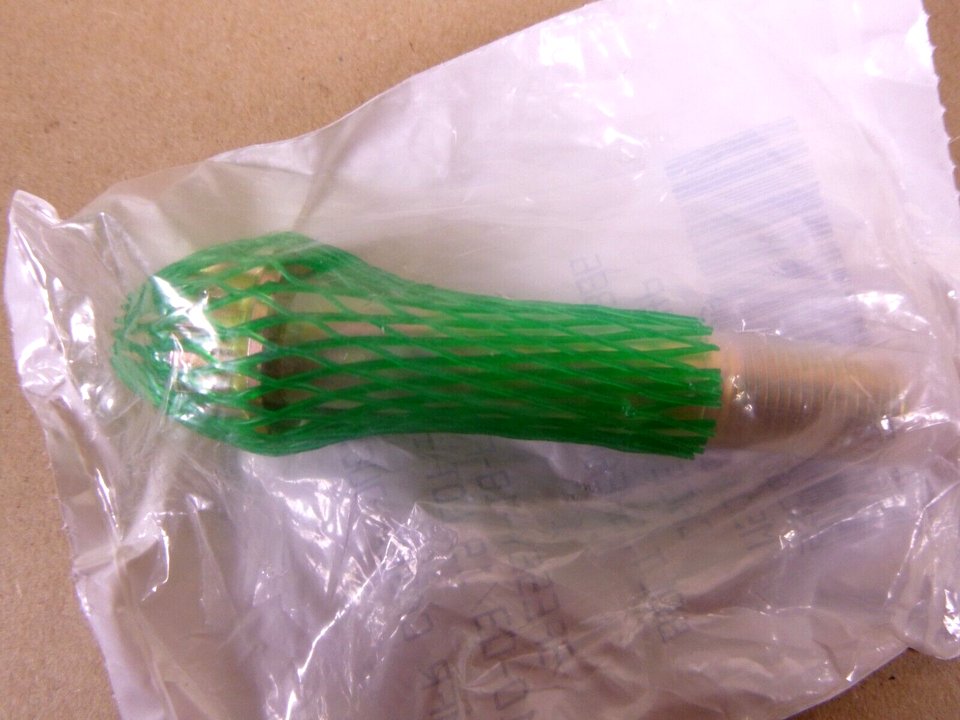

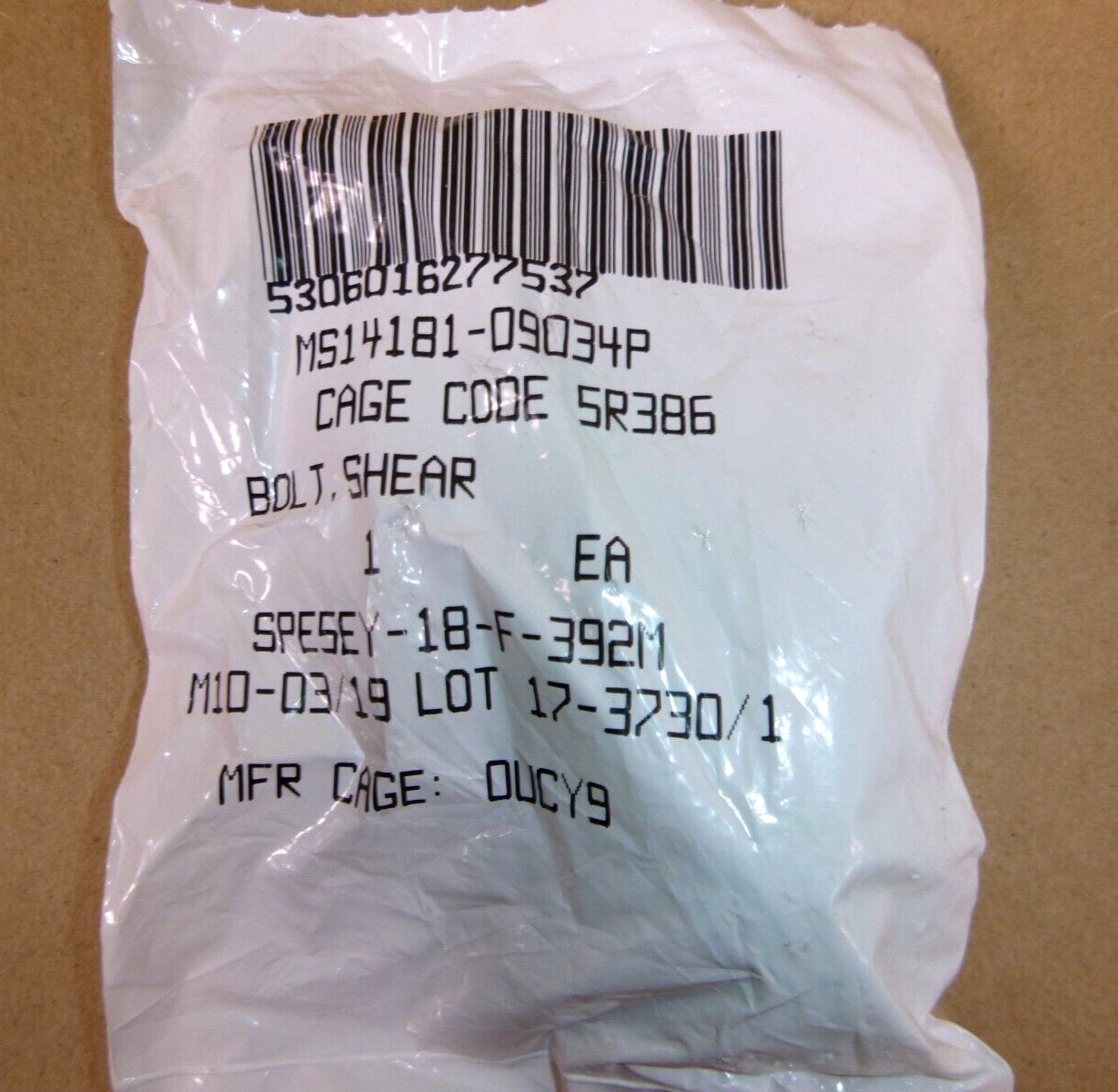

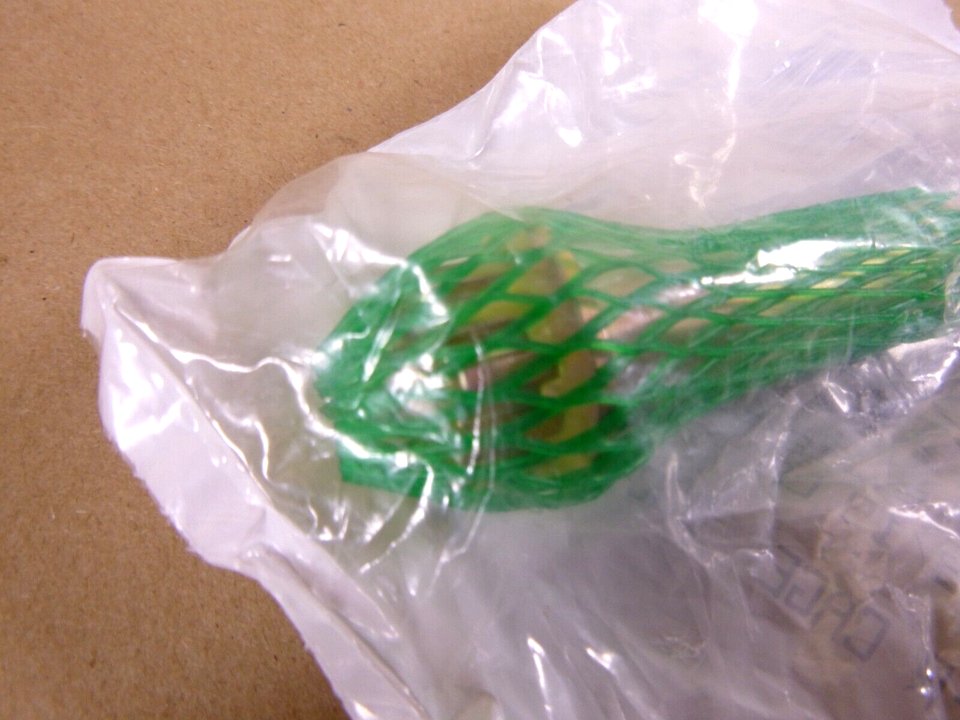

9/16-18 x 3" 718 Inconel Spline Flange Head Shear Bolt MS14181-09034P , 5306-01-627-7537

$129.00
Availability: In-Stock
Quantity
Call: 702-268-8156
9/16-18 x 3" 718 Inconel Spline Flange Head Shear Bolt MS14181-09034P

TECHNICAL CHARACTERISTICS

III PART NAME ASSIGNED BY CONTROLLING AGENCY
(CXCY) BOLT, TENSION; NICKEL ALLOY 718, 220 KSI FTU; EXTERNA WRENCHING, SPLINE DRIVE, FLANGED HEAD
III END ITEM IDENTIFICATION
(AGAV) UH-1Y/AH-1Z; NHA: 1680016010069/1680015673899
END ITEM IDENTIFICATION
(AGAV) UH-1Y/AH-1Z; NHA: 1680016010069/1680015673899
EXTENDED WASHER DIAMETER
(AATC) 1.037 INCHES MINIMUM AND 1.047 INCHES MAXIMUM
EXTENDED WASHER THICKNESS
(AATD) 0.071 INCHES MINIMUM AND 0.091 INCHES MAXIMUM
FASTENER LENGTH
(AASB) 3.070 INCHES MINIMUM AND 3.100 INCHES MAXIMUM
GRIP DIAMETER
(AAUR) 0.5605 INCHES MINIMUM AND 0.5615 INCHES MAXIMUM
GRIP LENGTH
(ANEE) 2.115 INCHES MINIMUM AND 2.225 INCHES MAXIMUM
HEAD HEIGHT
(AASU) 0.495 INCHES MINIMUM AND 0.515 INCHES MAXIMUM
HEAD MINOR DIAMETER
(AAZH) 0.610 INCHES MINIMUM AND 0.625 INCHES MAXIMUM
HEAD STYLE
(AASK) SPLINE EXTENDED WASHER
NOMINAL THREAD DIAMETER
(AHYM) 0.5625 INCHES
PART NAME ASSIGNED BY CONTROLLING AGENCY
(CXCY) BOLT, TENSION; NICKEL ALLOY 718, 220 KSI FTU; EXTERNA WRENCHING, SPLINE DRIVE, FLANGED HEAD
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) AMS 5662 OR AMS 5663 ASSN STD SINGLE MATERIAL RESPONSE OVERALL
MATERIAL
(MATT) NICKEL ALLOY 718 OVERALL
MINIMUM TENSILE STRENGTH
(CQBC) 220000 POUNDS PER SQUARE INCH
THREAD CLASS
(AAJD) 3A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD LENGTH
(AASA) 0.960 INCHES NOMINAL
THREAD QUANTITY PER INCH
(CMLP) 18
THREAD SERIES DESIGNATOR
(THSD) UNJF
SPECIAL FEATURES
(FEAT) WRENCHING ELEMENT 22
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416, TYPE II, CLASS 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT
(SFTT) CADMIUM OVERALL




THE SUBJECT MATERIAL LISTED FOR SALE IS NEW GOVERNMENT SURPLUS. THIS ITEM MAY NOT CURRENTLY BE CERTIFIED FOR USE ON FAA REGISTERED AIRCRAFT. BUYER ASSUMES FULL RESPONSIBILITY FOR OBTAINING THE NECESSARY OEM AND/OR REGULATORY AGENCY APPROVAL PRIOR TO THE USE OF, OR RESALE OF, THE LISTED ITEM(S).
