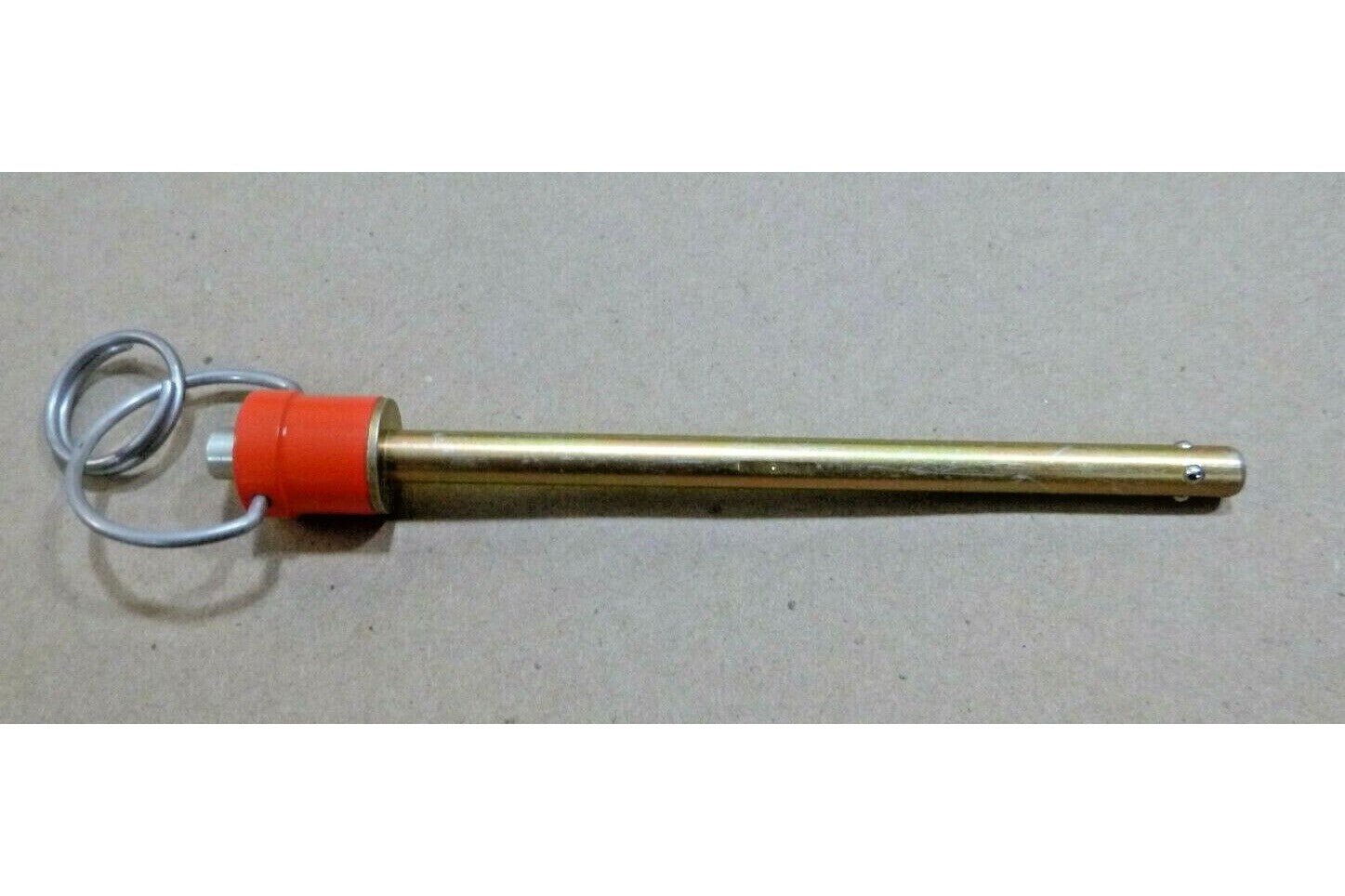

5/16" Dia. Shank x 4.60" Grip Length Aircraft Grade Ball Lock Quick Release Pin

$21.97
Availability: In-Stock
Quantity
Call: 702-268-8156
5/16" Dia. Shank x 4.60" Grip Length Aircraft Grade Ball Lock Quick Release Pin

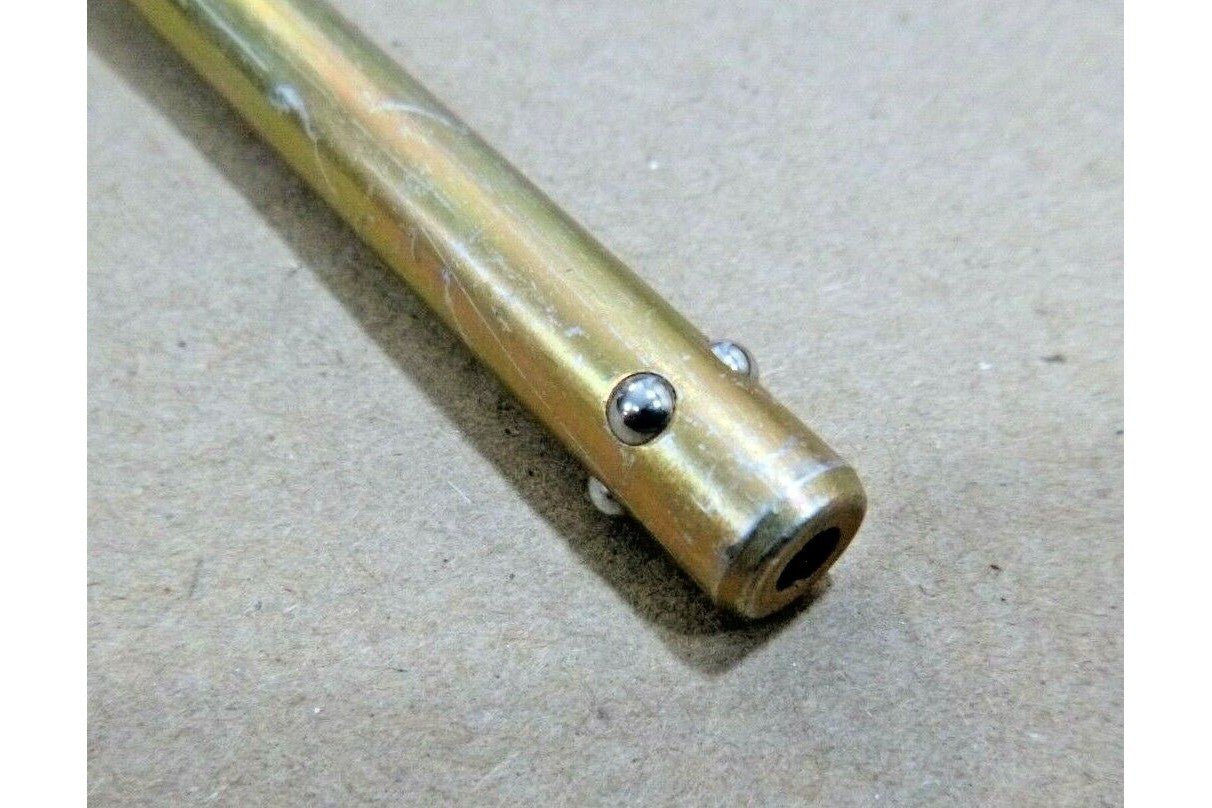

FEATURS 4 LOCKING BALLS

TECHNICAL CHARACTERISTICS

ACTUATION METHOD
(AFLW) PUSH BUTTON
ACTUATION TYPE
(APCM) PUSH
DETENT QUANTITY
(ABRM) 4
DETENT TO TAPERED END DISTANCE
(CTXT) 0.400 INCHES NOMINAL
GRIP LENGTH
(ANEE) 4.600 INCHES NOMINAL
HARDNESS RATING
(CQFM) 54.0 ROCKWELL C MINIMUM DETENT AND 64.0 ROCKWELL C MAXIMUM DETENT
HARDNESS RATING
(CQFM) 36.0 ROCKWELL C MINIMUM SHANK AND 40.0 ROCKWELL C MAXIMUM SHANK
HEAD DIAMETER
(AASL) 0.750 INCHES NOMINAL
MATERIAL
(MATT) ALUMINUM ALLOY 2017 HEAD OR ALUMINUM ALLOY 2024 HEAD OR ALUMINUM ALLOY 7075 HEAD OR ALUMINUM ALLOY 413.0 HEAD OR ALUMINUM ALLOY A380.0 HEAD OR ALUMINUM ALLOY 360.0 HEAD OR ALUMINUM ALLOY A413.0 HEAD OR ALUMINUM ALLOY 380.0 HEAD OR ALUMINUM ALLOY B443.0 HEAD OR ALUMINUM ALLOY 518.0 HEAD OR ALUMINUM ALLOY A360.0 HEAD OR ALUMINUM ALLOY A384.0 HEAD
MATERIAL
(MATT) STEEL COMP 4130 SHANK
MATERIAL
(MATT) STEEL COMP 4130 SPINDLE
MATERIAL
(MATT) STEEL COMP 440C DETENT
MATERIAL
(MATT) STEEL COMP 440C SPRING
MATERIAL
(MATT) STEEL HOOK

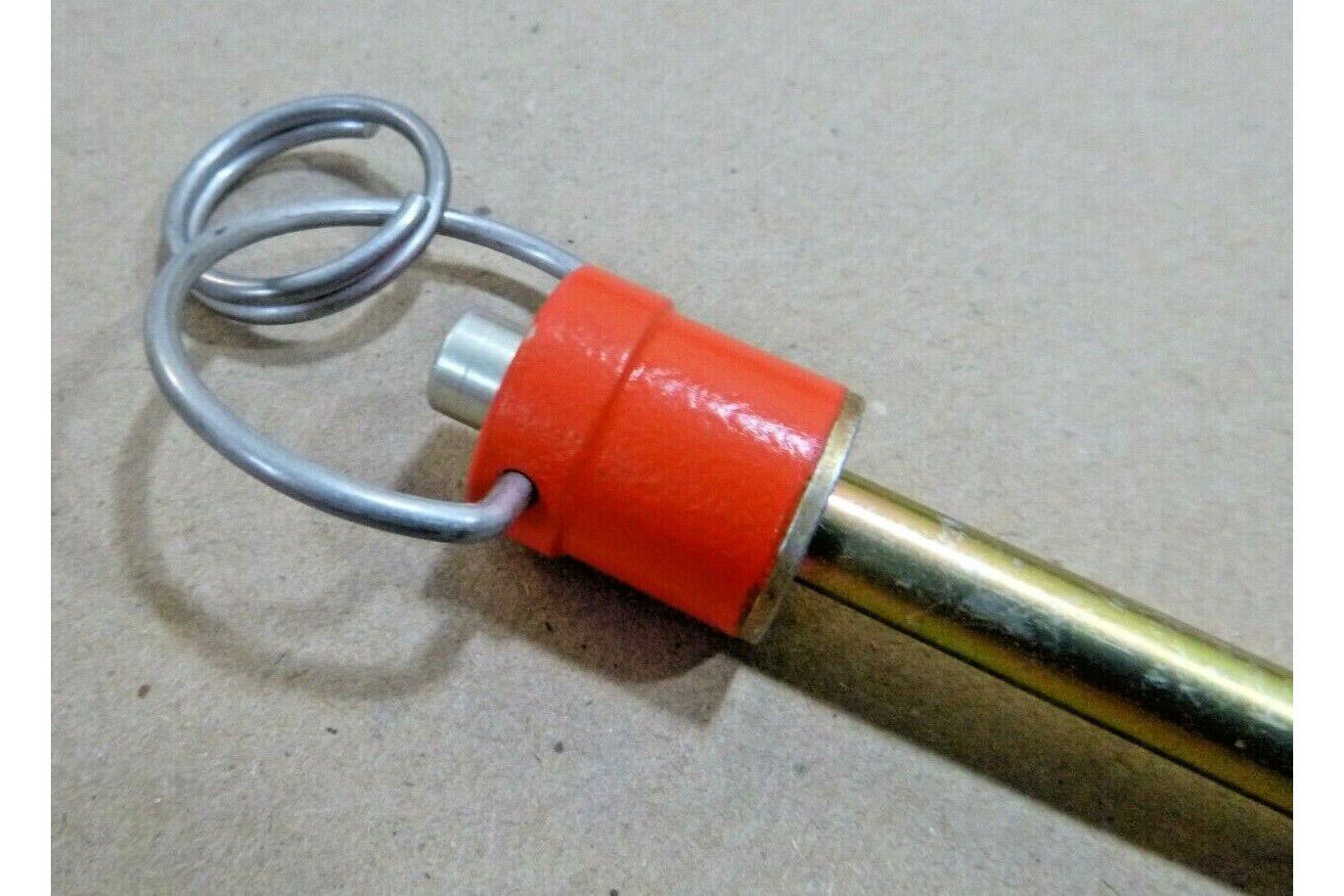

RING HANDLE DIAMETER
(ABQC) 1.223 INCHES MINIMUM
SHANK DIAMETER
(AAZE) 0.312 INCHES NOMINAL
SHEAR STRENGTH
(CQSX) 12800 DOUBLE POUNDS PER SQUARE INCH
SHOULDER TO HEAD END DISTANCE
(CRQD) 1.490 INCHES NOMINAL
PIN ATTACHMENT TYPE
(CTDJ) HOOK OR RING
SPECIFICATION/STANDARD DATA
(ZZZK) 80205-NAS1335 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
STYLE DESIGNATOR
(STYL) RING HANDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) MIL-A-8625 MIL SPEC 1ST TREATMENT RESPONSE HEAD AND MIL-C-5541 MIL SPEC 2ND TREATMENT RESPONSE HEAD
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE HOOK
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE SHANK
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE SPINDLE
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416,TYPE 2,CLASS 3 FED SPEC SINGLE TREATMENT RESPONSE SPRING
SURFACE TREATMENT
(SFTT) ANODIZE HEAD AND OXIDE FILM HEAD
SURFACE TREATMENT
(SFTT) CADMIUM HOOK
SURFACE TREATMENT
(SFTT) PASSIVATE DETENT
SURFACE TREATMENT
(SFTT) CADMIUM SHANK
SURFACE TREATMENT
(SFTT) CADMIUM SPRING
SURFACE TREATMENT
(SFTT) CADMIUM SPINDLE
