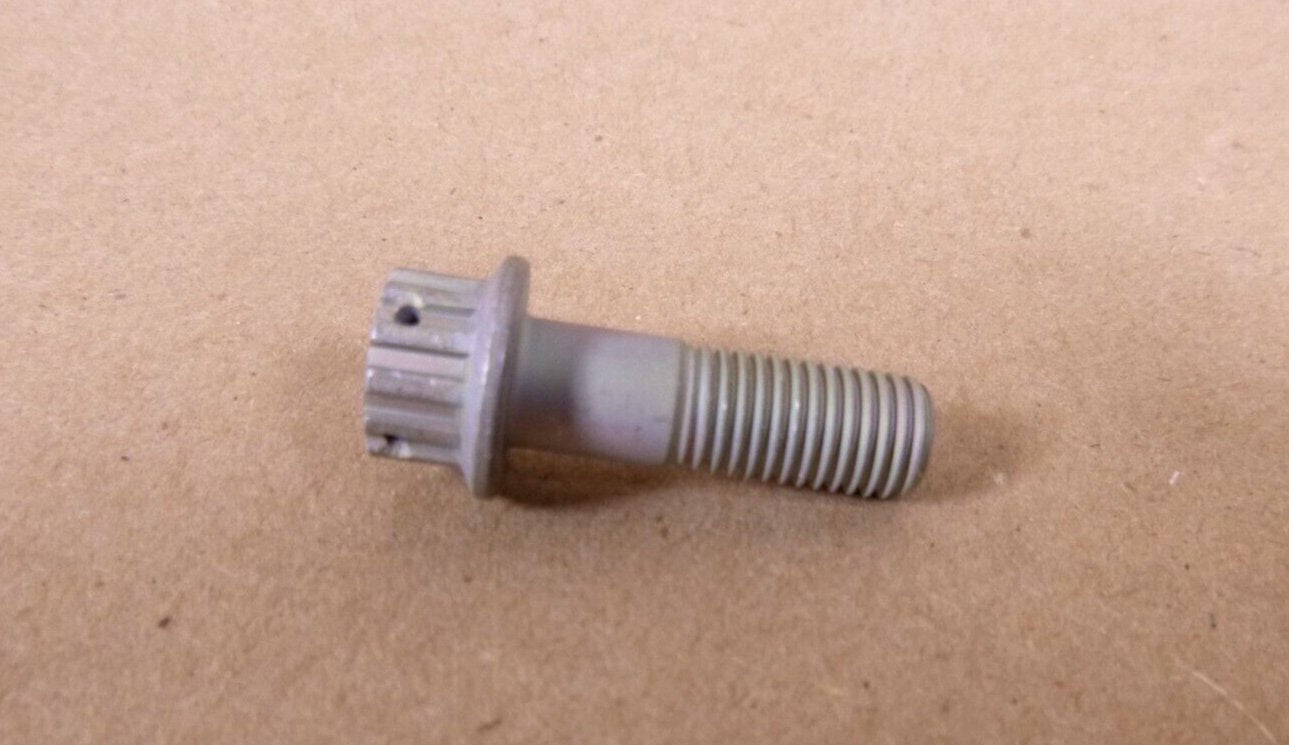

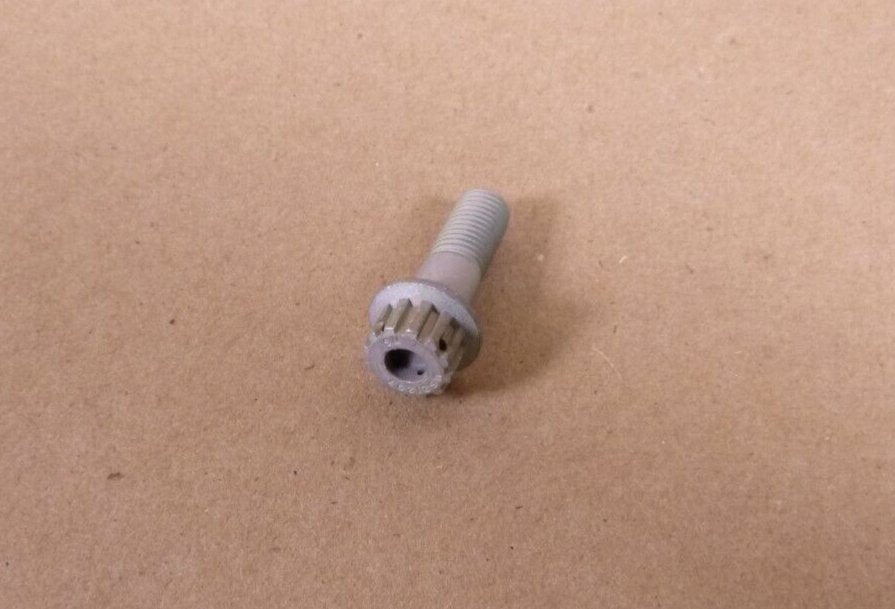

(26x) 5/16-24 x 1" Spline Head Extended Washer Aircraft Shear Bolt MS21297H05006

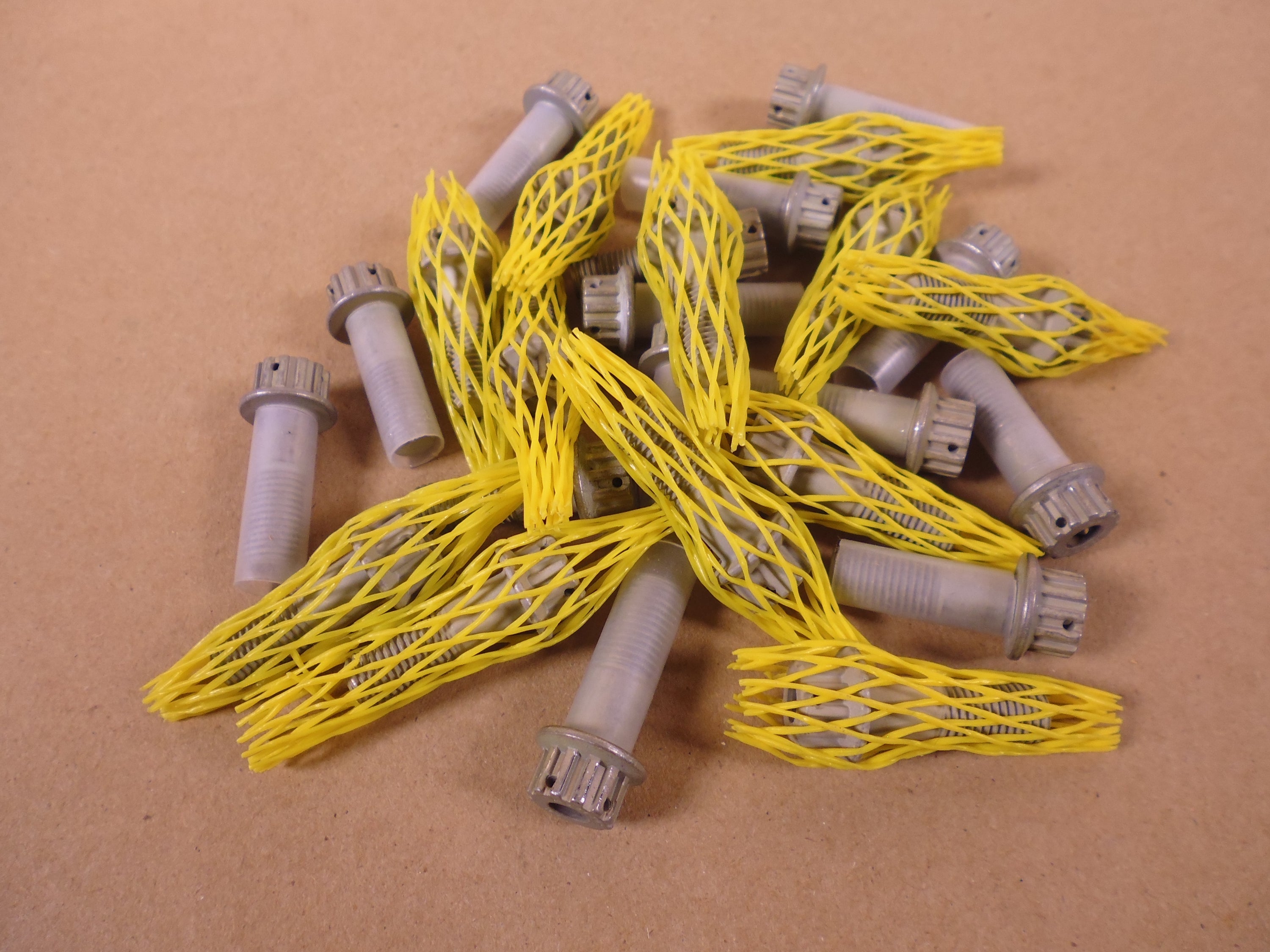

THIS SALE IS FOR 26 BOLTS
- EXTENDED WASHER DIAMETER
- (AATC) 0.575 INCHES MINIMUM AND 0.585 INCHES MAXIMUM
- EXTENDED WASHER THICKNESS
- (AATD) 0.035 INCHES MINIMUM AND 0.055 INCHES MAXIMUM
- FASTENER LENGTH
- (AASB) 0.964 INCHES MINIMUM AND 0.994 INCHES MAXIMUM
- GRIP DIAMETER
- (AAUR) 0.3110 INCHES MINIMUM AND 0.3120 INCHES MAXIMUM
- GRIP LENGTH
- (ANEE) 0.365 INCHES MINIMUM AND 0.385 INCHES MAXIMUM
- HARDNESS RATING
- (CQFM) 46.0 ROCKWELL C MINIMUM OVERALL AND 50.0 ROCKWELL C MAXIMUM OVERALL
- HEAD HEIGHT
- (AASU) 0.302 INCHES MINIMUM AND 0.322 INCHES MAXIMUM
- HEAD STYLE
- (AASK) SPLINE EXTENDED WASHER
- HOLE CONFIGURATION STYLE
- (CRHC) HEXAGON LONGITUDINAL HOLE
- HOLE DIAMETER
- (AAUB) 0.055 INCHES NOMINAL
- HOLE QUANTITY
- (ASXK) 4
- HOLE TYPE
- (BQDM) DRILLED
- NOMINAL THREAD DIAMETER
- (AHYM) 0.312 INCHES
- MATERIAL
- (MATT) STEEL COMP H11 OVERALL
- MINIMUM TENSILE STRENGTH
- (CQBC) 220000 POUNDS PER SQUARE INCH
- THREAD CLASS
- (AAJD) 3A
- THREAD DIRECTION
- (AAJF) RIGHT-HAND
- THREAD LENGTH
- (AASA) 0.579 INCHES MINIMUM AND 0.629 INCHES MAXIMUM
- THREAD QUANTITY PER INCH
- (CMLP) 24
- THREAD SERIES DESIGNATOR
- (THSD) UNJF
-
THE SUBJECT MATERIAL LISTED FOR SALE IS NEW GOVERNMENT SURPLUS. THIS ITEM MAY NOT CURRENTLY BE CERTIFIED FOR USE ON FAA REGISTERED AIRCRAFT. BUYER ASSUMES FULL RESPONSIBILITY FOR OBTAINING THE NECESSARY OEM AND/OR REGULATORY AGENCY APPROVAL PRIOR TO THE USE OF, OR RESALE OF, THE LISTED ITEM(S).
