10x USGI NAS6604DH40, 1/4"-28 Aircraft Drilled Shear Bolt 5306-01-313-1715

$59.95
Availability: In-Stock
Quantity
Call: 702-268-8156

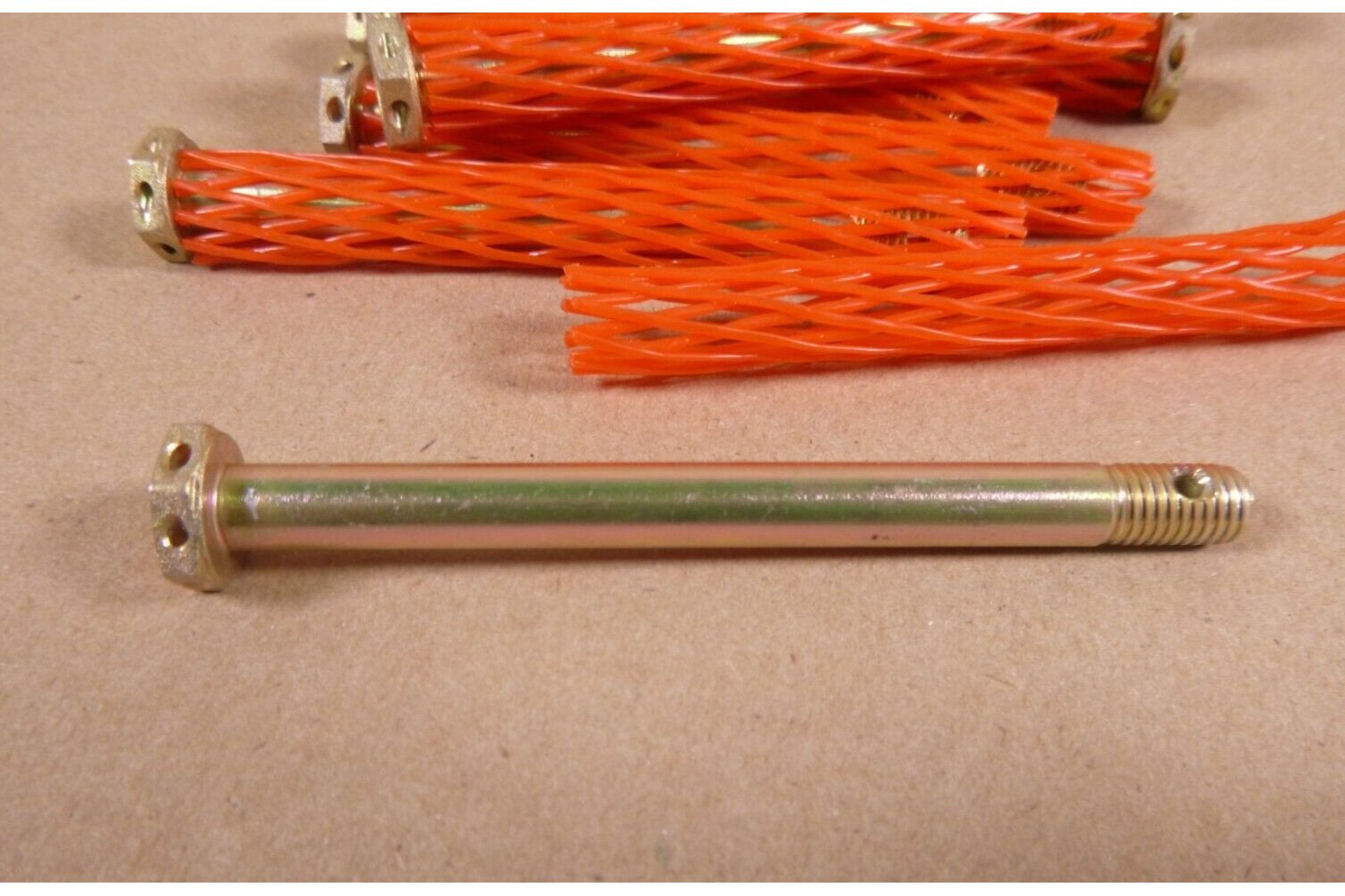

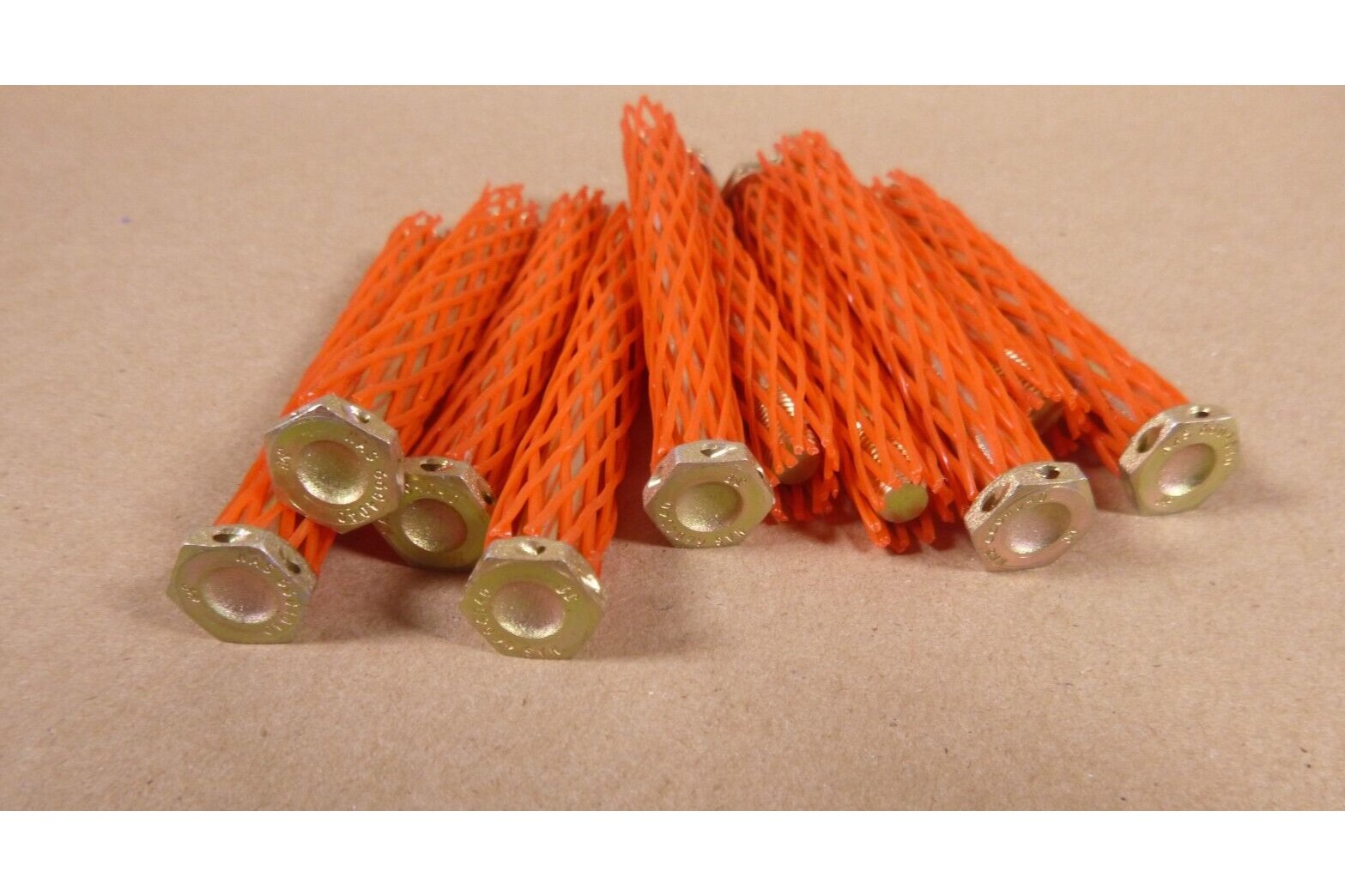

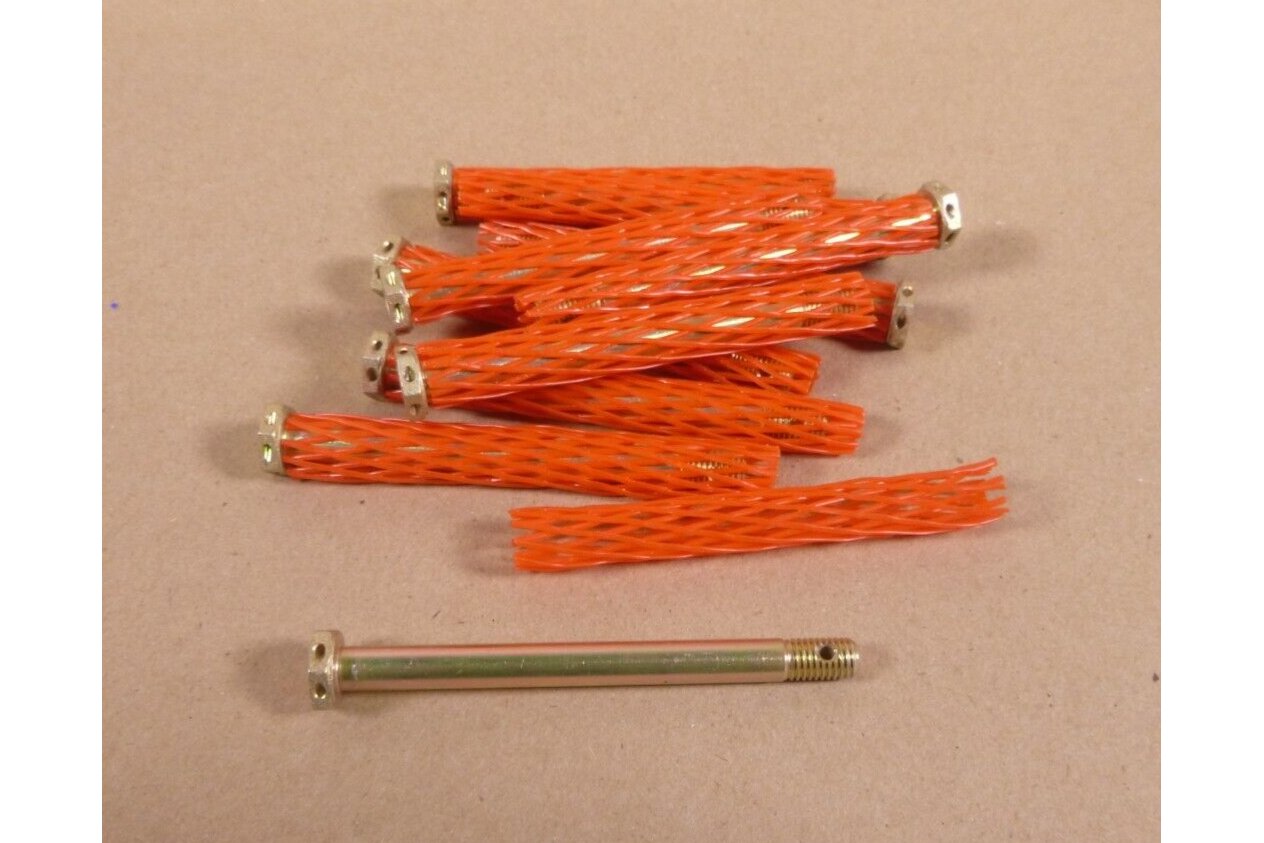

10x USGI NAS6604DH40, 1/4"-28 Aircraft Drilled Shear Bolt 5306-01-313-1715

TECHNICAL CHARACTERISTICS

DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER
(CRZS) 2.722 INCHES MINIMUM AND 2.772 INCHES MAXIMUM FIRST HOLE
FASTENER LENGTH
(AASB) 2.910 INCHES MINIMUM AND 2.940 INCHES MAXIMUM
GRIP DIAMETER
(AAUR) 0.2445 INCHES MINIMUM AND 0.2450 INCHES MAXIMUM
GRIP LENGTH
(ANEE) 2.490 INCHES MINIMUM AND 2.510 INCHES MAXIMUM
HARDNESS RATING
(CQFM) 36.0 ROCKWELL C MINIMUM AND 40.0 ROCKWELL C MAXIMUM OVERALL
HEAD HEIGHT
(AASU) 0.125 INCHES MINIMUM AND 0.140 INCHES MAXIMUM
HEAD STYLE
(AASK) DISHED HEXAGON
HOLE CONFIGURATION STYLE
(CRHC) HEXAGON CORNERS
HOLE DIAMETER
(AAUB) 0.046 INCHES MINIMUM AND 0.056 INCHES MAXIMUM
HOLE QUANTITY
(ASXK) 3
HOLE TYPE
(BQDM) DRILLED
NOMINAL THREAD DIAMETER
(AHYM) 0.250 INCHES
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) MIL-S-5000 MIL SPEC 1ST MATERIAL RESPONSE OR MIL-S-6049 MIL SPEC 2ND MATERIAL RESPONSE OR AMS 6322 ASSN STD 2ND MATERIAL RESPONSE OVERALL
MATERIAL
(MATT) STEEL COMP E4340 OR STEEL COMP 8740 OVERALL
MINIMUM TENSILE STRENGTH
(CQBC) 160000 POUNDS PER SQUARE INCH
SHANK UNTHREADED HOLE DIAMETER
(AAWB) 0.076 INCHES MINIMUM AND 0.086 INCHES MAXIMUM FIRST HOLE
THREAD CLASS
(AAJD) 3A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD LENGTH
(AASA) 0.400 INCHES MINIMUM AND 0.450 INCHES MAXIMUM
THREAD QUANTITY PER INCH
(CMLP) 28
THREAD SERIES DESIGNATOR
(THSD) UNJF
WIDTH BETWEEN FLATS
(AATB) 0.429 INCHES MINIMUM AND 0.439 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA
(ZZZK) 80205-NAS6604 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
SURFACE FINISH
(CSYM) 32.0 MICROINCHES BEARING SURFACE OF HEAD
SURFACE FINISH
(CSYM) 32.0 MICROINCHES GRIP
SURFACE FINISH
(CSYM) 32.0 MICROINCHES THREADS
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416 TY 2,CL 2 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT
(SFTT) CADMIUM AND CHROMATE OVERALL
SURFACE TREATMENT
(SFTT) CADMIUM OVERALL AND CHROMATE OVERALL
MATERIAL
(MATT) STEEL COMP E4340 OVERALL OR STEEL COMP 8740 OVERALL

THE SUBJECT MATERIAL LISTED FOR SALE IS NEW GOVERNMENT SURPLUS. THIS ITEM MAY NOT CURRENTLY BE CERTIFIED FOR USE ON FAA REGISTERED AIRCRAFT. BUYER ASSUMES FULL RESPONSIBILITY FOR OBTAINING THE NECESSARY OEM AND/OR REGULATORY AGENCY APPROVAL PRIOR TO THE USE OF, OR RESALE OF, THE LISTED ITEM(S).
