1/2"-20 SHEAR BOLT NAS1308-68, 5306-00-449-2260 (18 Pcs)

$79.95
Availability: In-Stock
Quantity
Call: 702-268-8156
1/2"-20 NATIONAL AEROSPACE STD. SHEAR BOLT NAS1308-68, 5306-00-449-2260

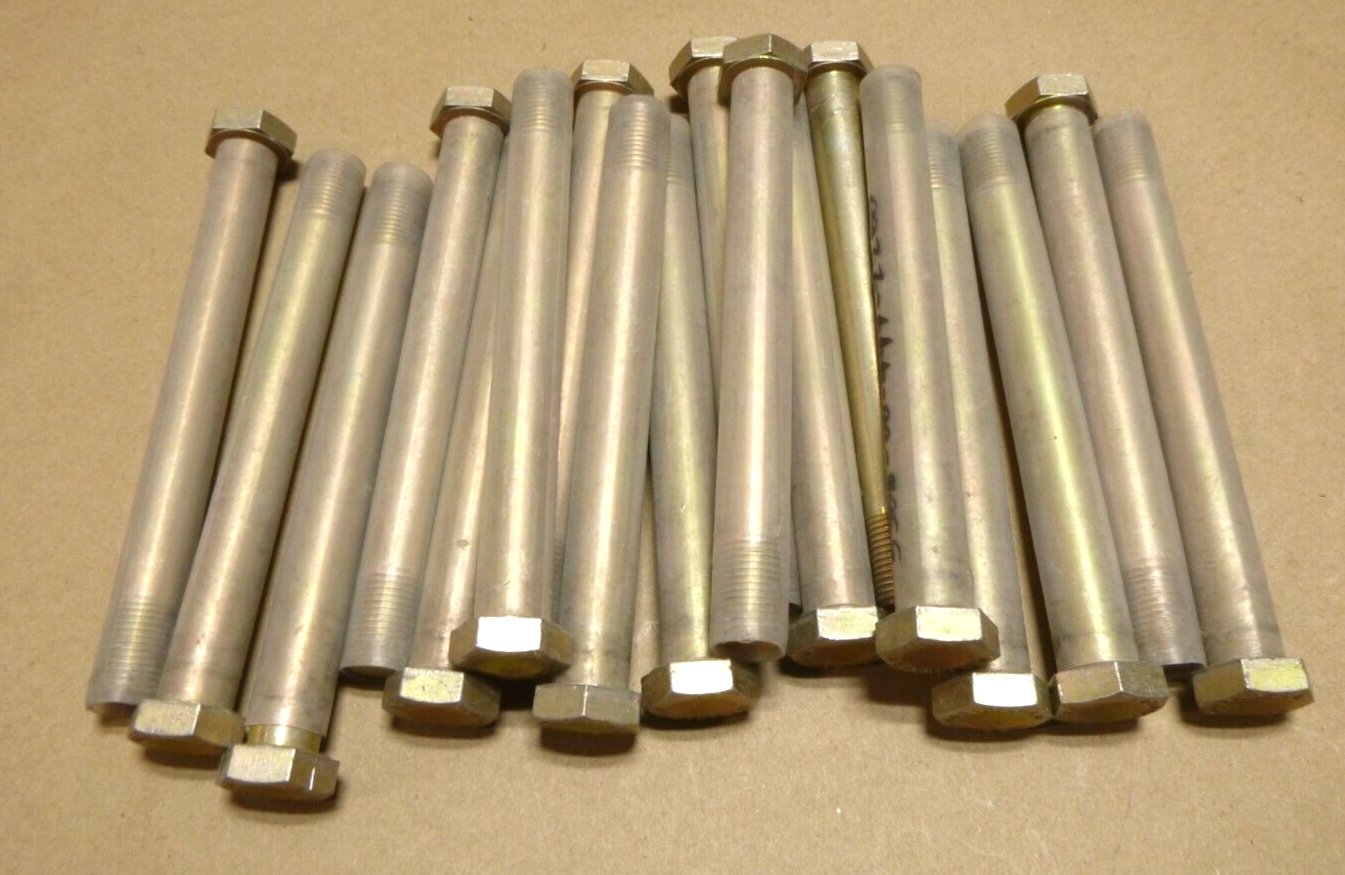

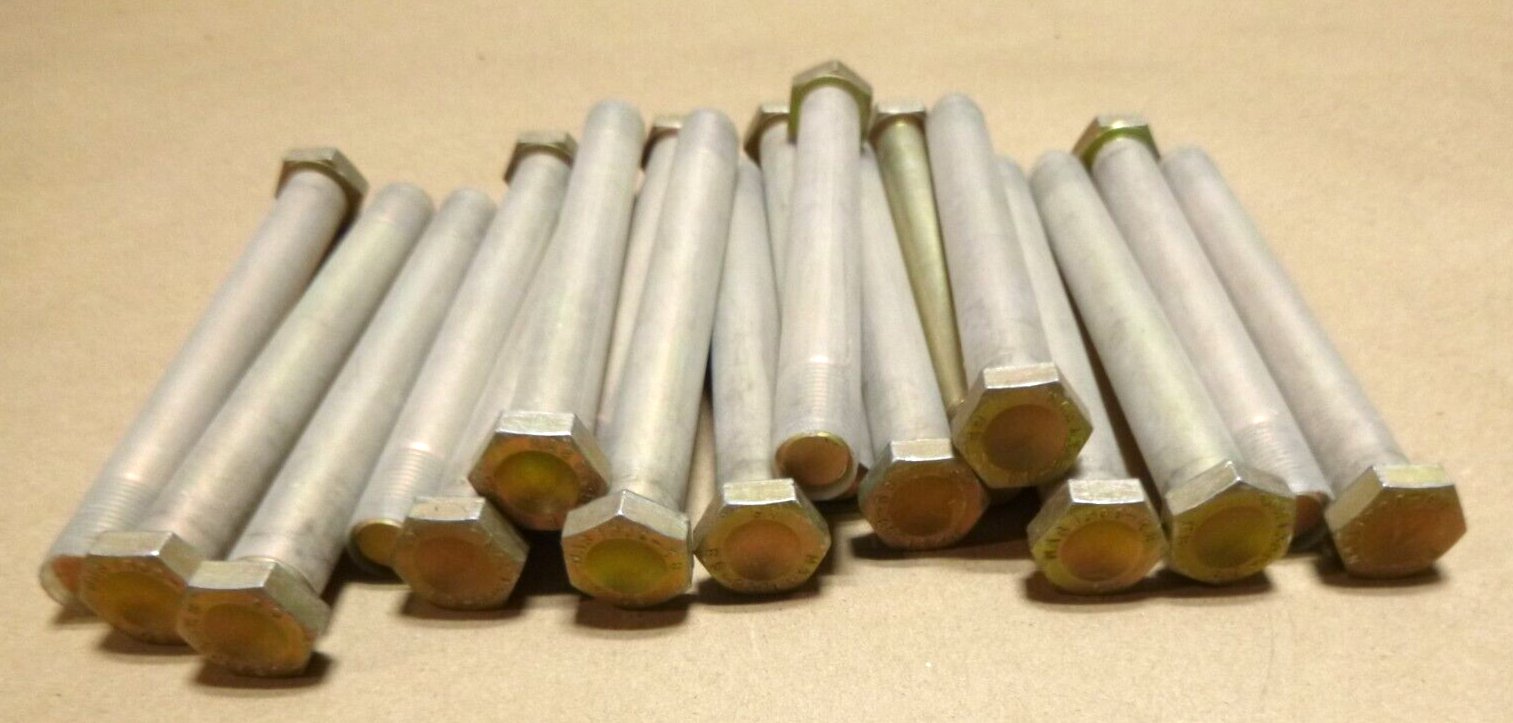

THIS SALE IS FOR ALL 18 BOLTS

TECHNICAL CHARACTERISTICS

FASTENER LENGTH
(AASB) 4.970 INCHES MINIMUM AND 5.000 INCHES MAXIMUM
GRIP DIAMETER
(AAUR) 0.4985 INCHES MINIMUM AND 0.4995 INCHES MAXIMUM
GRIP LENGTH
(ANEE) 4.240 INCHES MINIMUM AND 4.260 INCHES MAXIMUM
HARDNESS RATING
(CQFM) 36.0 ROCKWELL C MINIMUM OVERALL AND 40.0 ROCKWELL C MAXIMUM OVERALL
HEAD HEIGHT
(AASU) 0.250 INCHES MINIMUM AND 0.265 INCHES MAXIMUM

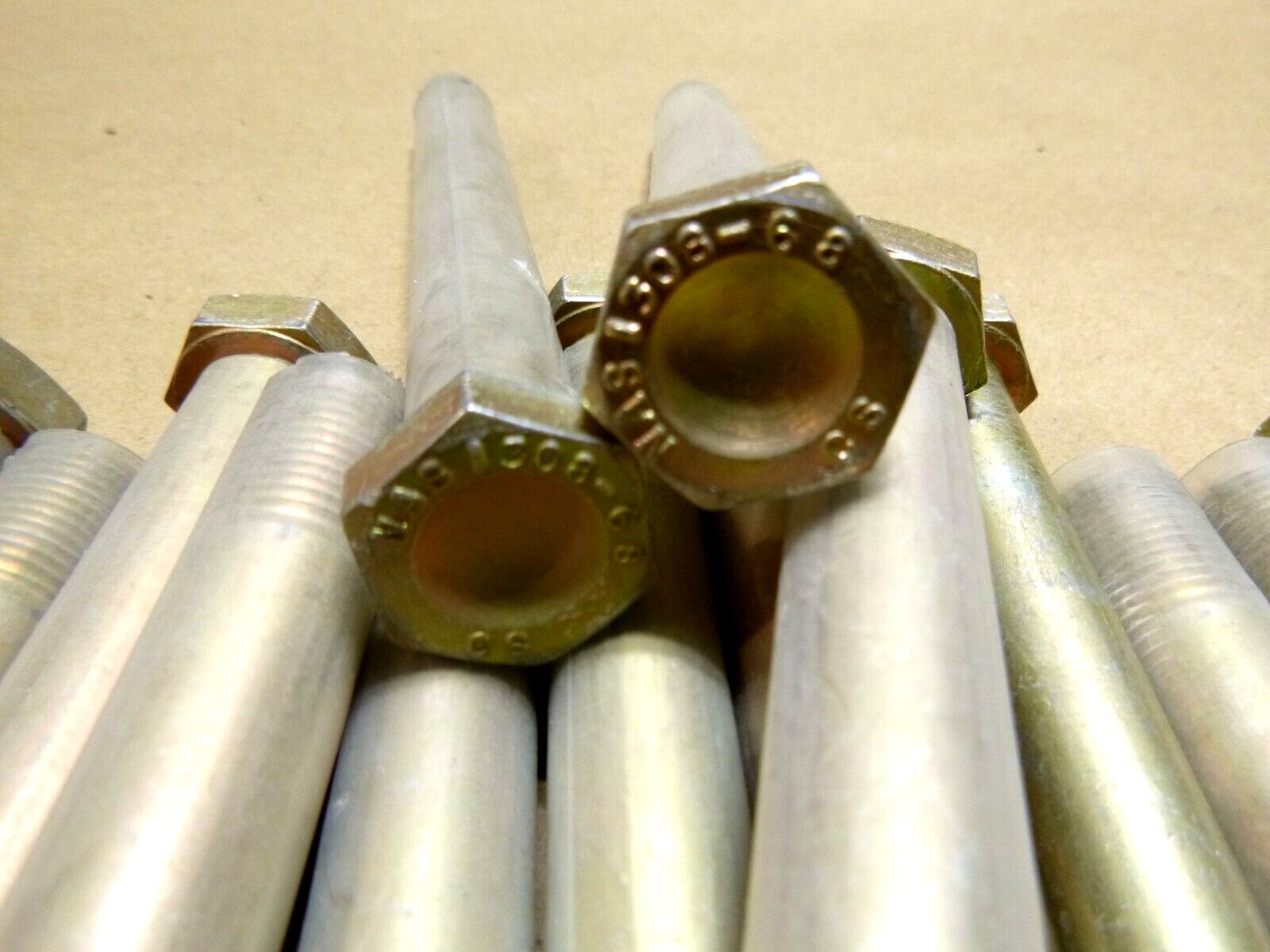

HEAD STYLE
(AASK) DISHED HEXAGON
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OVERALL OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OVERALL OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OVERALL OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OVERALL OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL
MATERIAL
(MATT) STEEL COMP 4140 OVERALL OR STEEL COMP E4340 OVERALL OR STEEL COMP 6150 OVERALL OR STEEL COMP 8735 OVERALL OR STEEL COMP 8740 OVERALL
MINIMUM TENSILE STRENGTH
(CQBC) 160000 POUNDS PER SQUARE INCH
NOMINAL THREAD DIAMETER
(AHYM) 0.500 INCHES
WIDTH BETWEEN FLATS
(AATB) 0.741 INCHES MINIMUM AND 0.752 INCHES MAXIMUM
SPECIFICATION/STANDARD DATA
(ZZZK) 80205-NAS1308 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION
(STDC) QQ-P-416,TY 2,CL 3 FED SPEC ALL TREATMENT RESPONSES OVERALL
SURFACE TREATMENT
(SFTT) CADMIUM OVERALL AND CHROMATE OVERALL
THREAD CLASS
(AAJD) 3A
THREAD DIRECTION
(AAJF) RIGHT-HAND
THREAD LENGTH
(AASA) 0.710 INCHES MINIMUM AND 0.760 INCHES MAXIMUM
THREAD SERIES DESIGNATOR
(THSD) UNJF
THREAD QUANTITY PER INCH
(CMLP) 20
