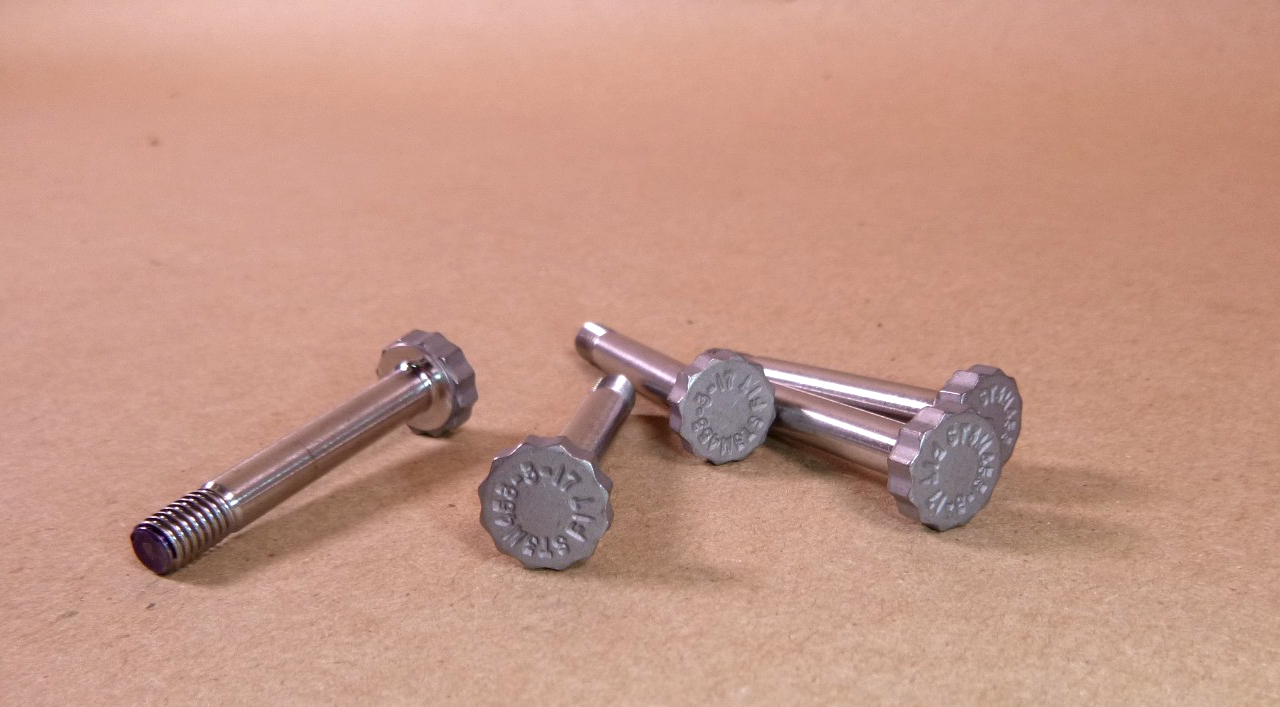

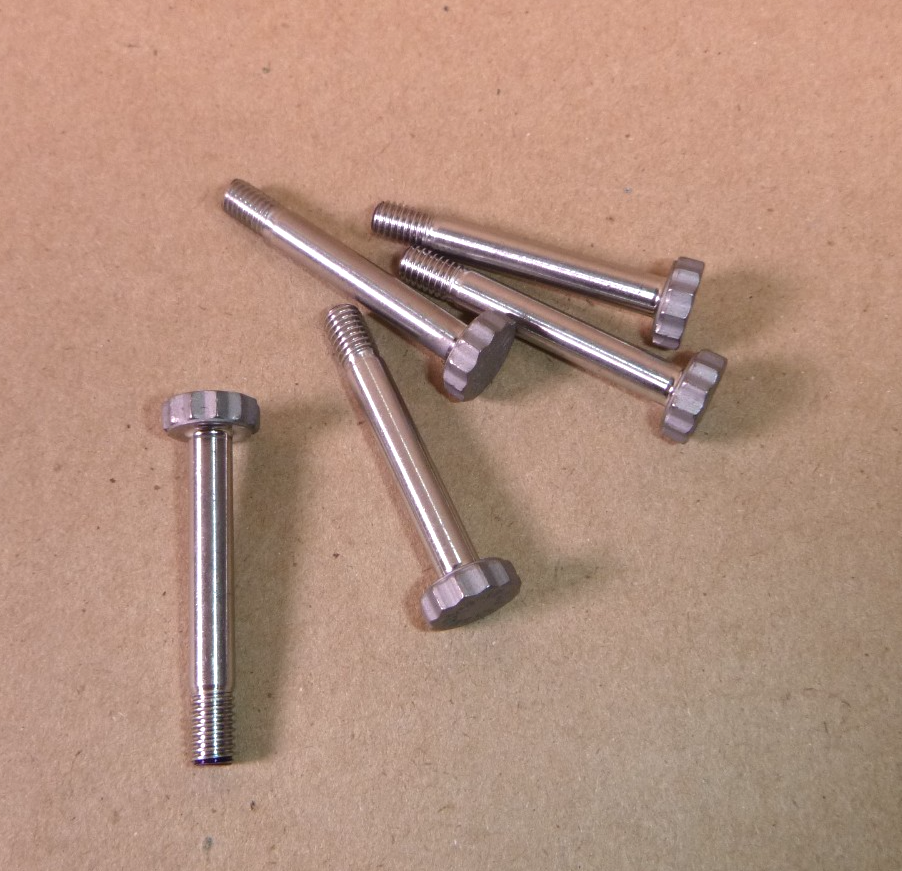

ST3M453-3-17 Close Tolerance Bolt 5306-01-478-2902 (5 Pcs)

Regular price: $49.95
Regular price
Sale price: $49.95

Shipping calculated at checkout.

ST3M453-3-17 Close Tolerance Bolt 5306-01-478-2902 (5 Pcs)

NEW SURPLUS

AAJD	Thread Class	3A
AAJF	Thread Direction	Right-hand
AASA	Thread Length	0.331 inches nominal
AASB	Fastener Length	1.379 inches minimum and 1.425 inches maximum
AASK	Head Style	Double hexagon
AASU	Head Height	0.130 inches minimum and 0.150 inches maximum
AATB	Width Between Flats	0.419 inches minimum
AAUR	Grip Diameter	0.367 inches minimum and 0.376 inches maximum
AHYM	Nominal Thread Diameter	0.190 inches
ANEE	Grip Length	1.063 inches nominal
CMLP	Thread Quantity per Inch	32
CQBC	Minimum Tensile Strength	3160 pounds per square inch
CXCY	Part Name Assigned BY Controlling Agency	Shearbolt, high strength, 12 pt head, ph 13-8 molybdenum
FEAT	Special Features	7, 088 double shear strength and 3, 160 tenstile strenght in pounds MINIMUM;125, 000 min psi shear heat treat
MATT	Material	Steel comp XM-13 overall
MDCL	Material Document and Classification	AMS5629 assn std single material response overall
SFTT	Surface Treatment	Passivate overall
STDC	Surface Treatment Document and Classification	MIL-S-5002 mil spec single treatment response overall
THSD	Thread Series Designator	UNF

Shipping information

- Ships within 5-8 business days.
