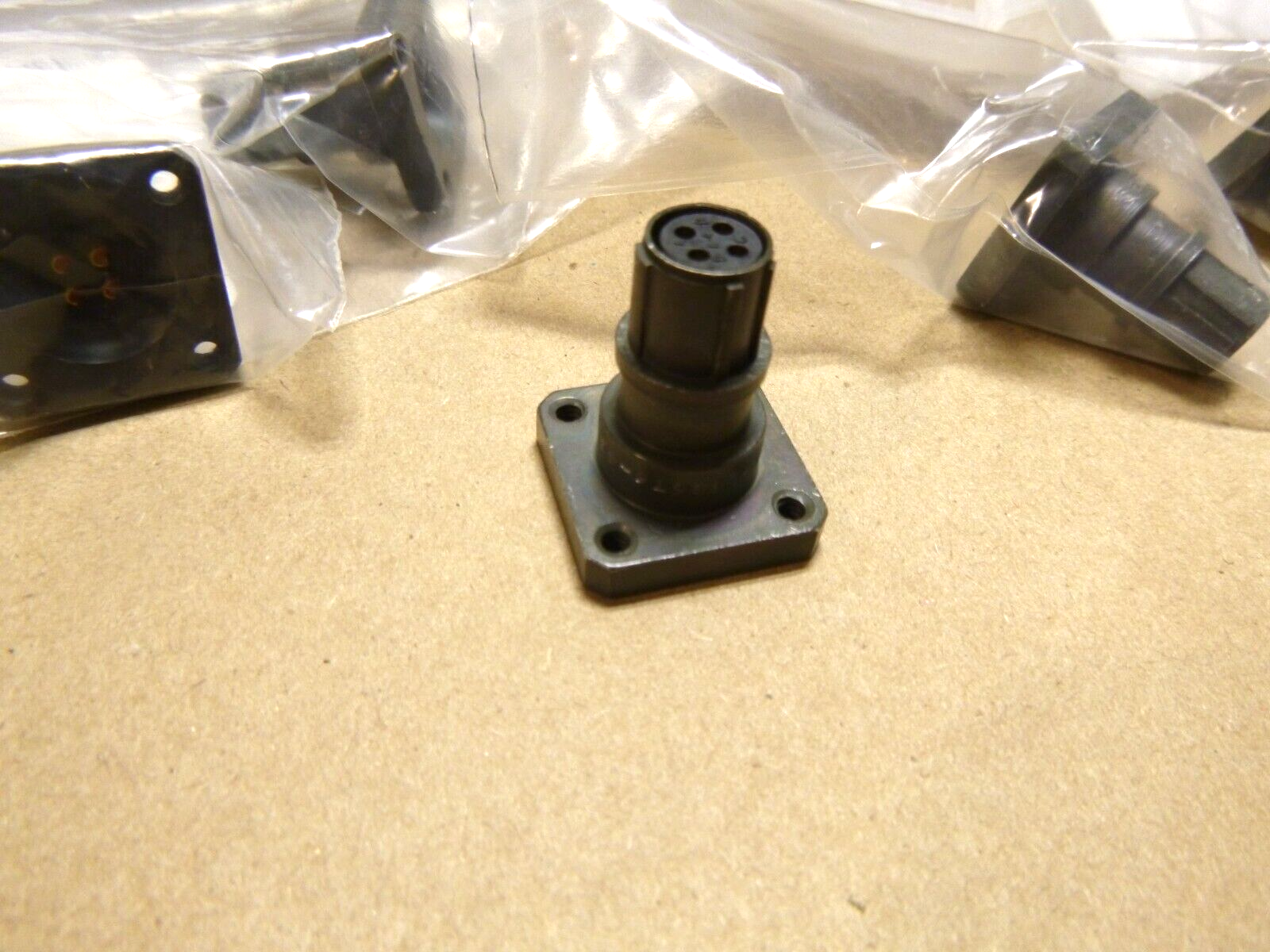

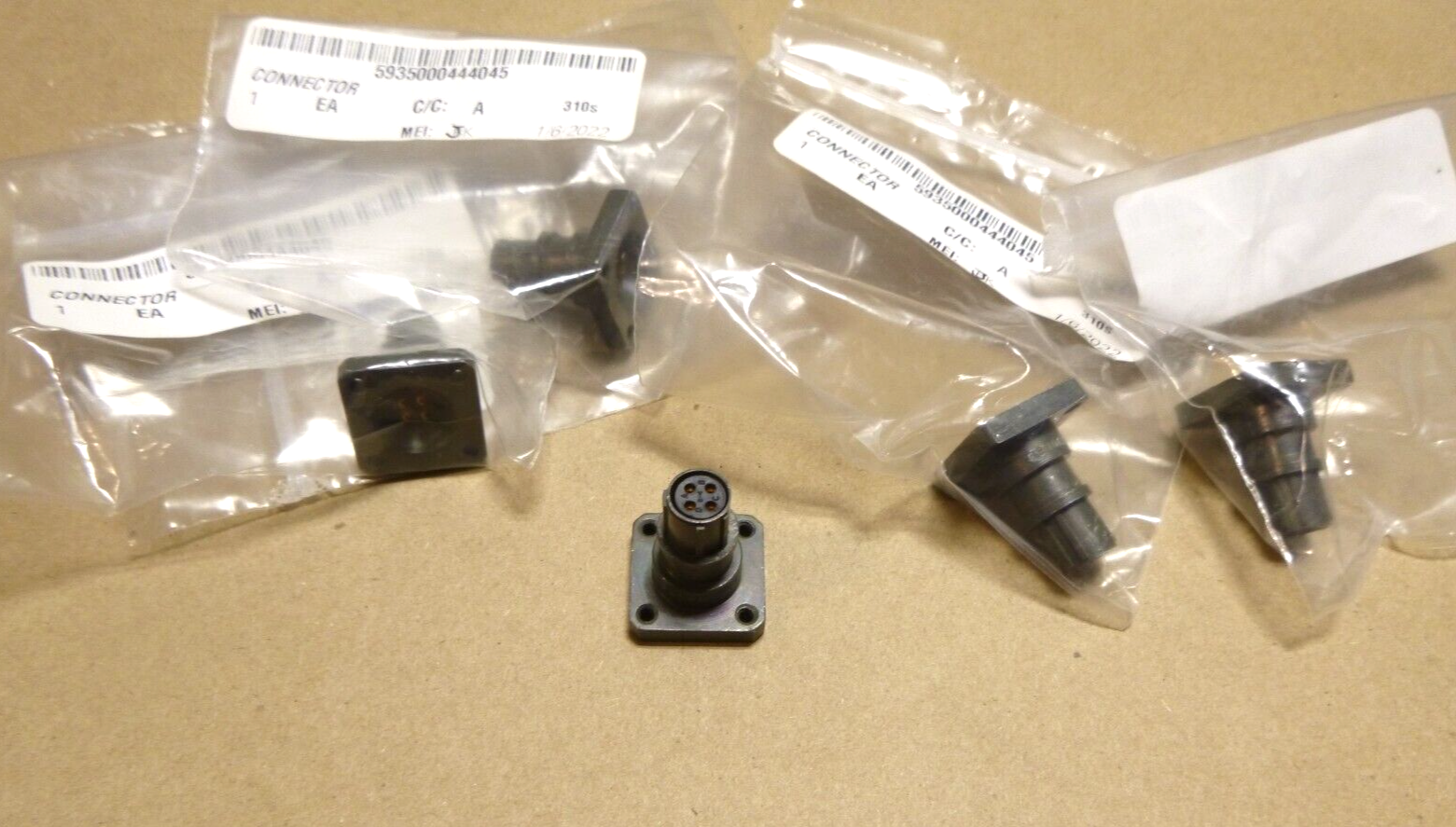

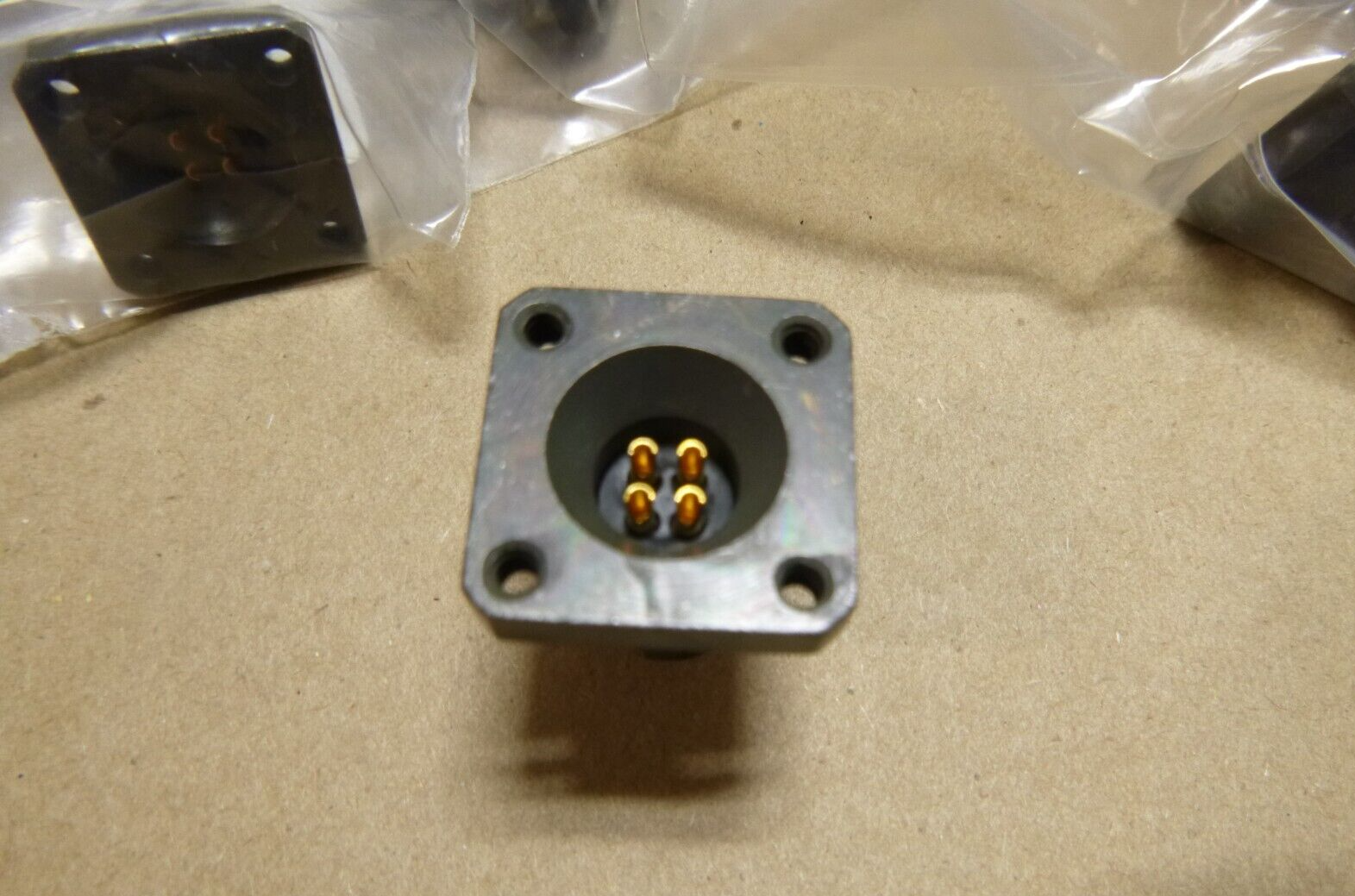

(Lot of 5) Bendix 71-406345-4S, MIL-C-26482 Series 1 Connector, Solder Contacts

Regular price: $87.95
Regular price
Sale price: $87.95

Shipping calculated at checkout.

(Lot of 5) Bendix 71-406345-4S, MIL-C-26482 Series 1 Connector, Solder Contacts

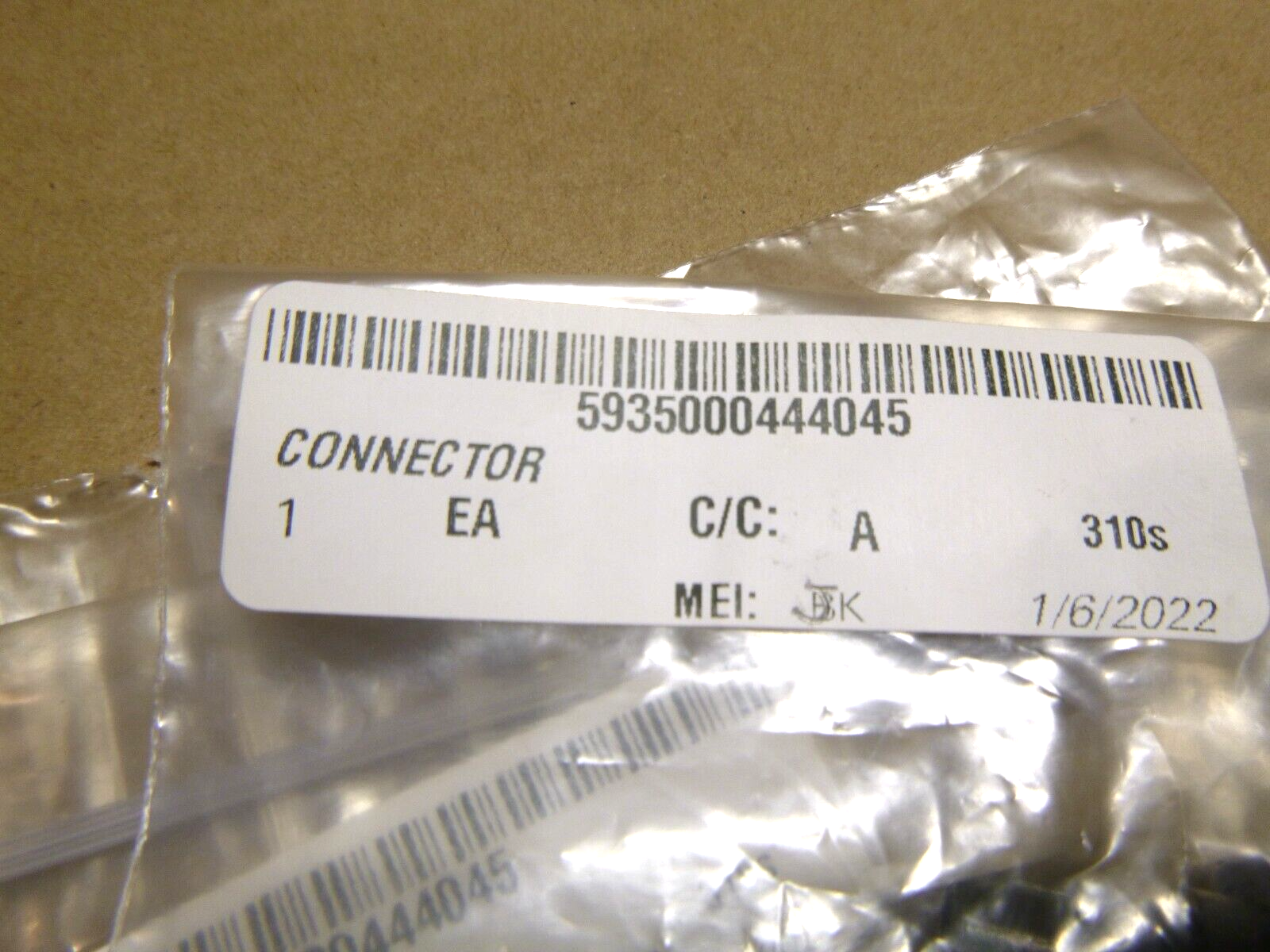

NSN 5935-00-044-4045

TECHNICAL CHARACTERISTICS

III PRECIOUS MATERIAL AND WEIGHT: (PMWT) 0.004 GOLD GRAINS, TROY AND 0.004 SILVER GRAINS, TROY
CONTACT POSITION ARRANGEMENT STYLE: (AFQX) 40394 SINGLE MATING END
III BODY STYLE: (AAQL) STRAIGHT SHAPE, INTERNAL COUPLING
CONTACT SURFACE TREATMENT: (CQYH) GOLD SINGLE MATING END SINGLE CONTACT GROUPING AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
III PRECIOUS MATERIAL: (PRMT) GOLD AND SILVER
CONTACT POSITION ARRANGEMENT STYLE: (AFQX) AEAL 8-4 SINGLE MATING END
BODY STYLE: (AAQL) STRAIGHT SHAPE, INTERNAL COUPLING
CENTER TO CENTER DISTANCE BETWEEN MOUNTING FACILITIES PARALLEL TO HEIGHT: (AEBW) 0.594 INCHES NOMINAL
CONNECTOR LOCKING METHOD: (AFRV) SPRING FRICTION
CONTACT MATERIAL: (CQTZ) COPPER ALLOY SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT POSITION ARRANGEMENT STYLE: (AFQX) 8-4 SINGLE MATING END
CONTACT REMOVABILITY: (AFQZ) NONREMOVABLE SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM AC VOLTAGE RATING IN VOLTS: (AFRD) 500.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM CURRENT RATING IN AMPS: (AFRC) 7.5 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT MAXIMUM DC VOLTAGE RATING IN VOLTS: (AFRE) 700.0 SINGLE MATING END SINGLE CONTACT GROUPING
CONTACT SURFACE TREATMENT: (CQYH) GOLD AND SILVER SINGLE MATING END SINGLE CONTACT GROUPING
DISTANCE BETWEEN CENTERLINES OF MOUNTING FACILITIES PARALLEL TO BODY WIDTH: (AEHA) 0.594 INCHES NOMINAL
ENVIRONMENTAL PROTECTION: (ADZC) MOISTURE RESISTANT AND SALT WATER RESISTANT AND VIBRATION RESISTANT
INCLUDED CONTACT QUANTITY: (CXCG) 4 SINGLE MATING END SINGLE CONTACT GROUPING
INCLUDED CONTACT TYPE: (CXCL) ROUND SOCKET SINGLE MATING END SINGLE CONTACT GROUPING
INSERT MATERIAL DOCUMENT AND CLASSIFICATION: (CTKL) MIL-R-3065 MIL SPEC SINGLE MATERIAL RESPONSE SINGLE MATING END
INSERT MATERIAL: (CQZG) RUBBER SINGLE MATING END
INSERT POSITION IN DEG: (AFRP) 0.0
OVERALL HEIGHT: (ABKW) 0.812 INCHES NOMINAL
OVERALL LENGTH: (ABHP) 1.000 INCHES NOMINAL
OVERALL WIDTH: (ABMK) 0.812 INCHES NOMINAL
MATING END QUANTITY: (AFQW) 1
NOMINAL THREAD SIZE: (CQJX) 0.122 INCHES
SHELL MATERIAL: (CSPT) ALUMINUM ALLOY
SHELL SURFACE TREATMENT: (CSWM) CADMIUM AND CHROMATE
SHELL TYPE: (AFRT) SOLID
POLARIZATION METHOD: (AFRN) KEY, MULTIPLE KEY GROOVE
PRECIOUS MATERIAL AND LOCATION: (PMLC) CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
PRECIOUS MATERIAL: (PRMT) GOLD AND SILVER
PRECIOUS MATERIAL AND WEIGHT: (PMWT) 0.004 GOLD GRAINS, TROY AND 0.004 SILVER GRAINS, TROY
TERMINAL LOCATION: (CQTM) BACK SINGLE MATING END SINGLE CONTACT GROUPING
TERMINAL TYPE: (CSCF) SOLDER WELL SINGLE MATING END SINGLE CONTACT GROUPING
THREAD CLASS: (AAJD) 2B
THREAD DIRECTION: (AAJF) RIGHT-HAND
THREAD QUANTITY PER INCH: (CMLP) 40
THREAD SERIES DESIGNATOR: (THSD) UNC
THREADED DEVICE TYPE: (AFQR) MOUNTING HOLE
III PRECIOUS MATERIAL AND LOCATION: (PMLC) CONTACT SURFACES GOLD AND CONTACT SURFACES SILVER
