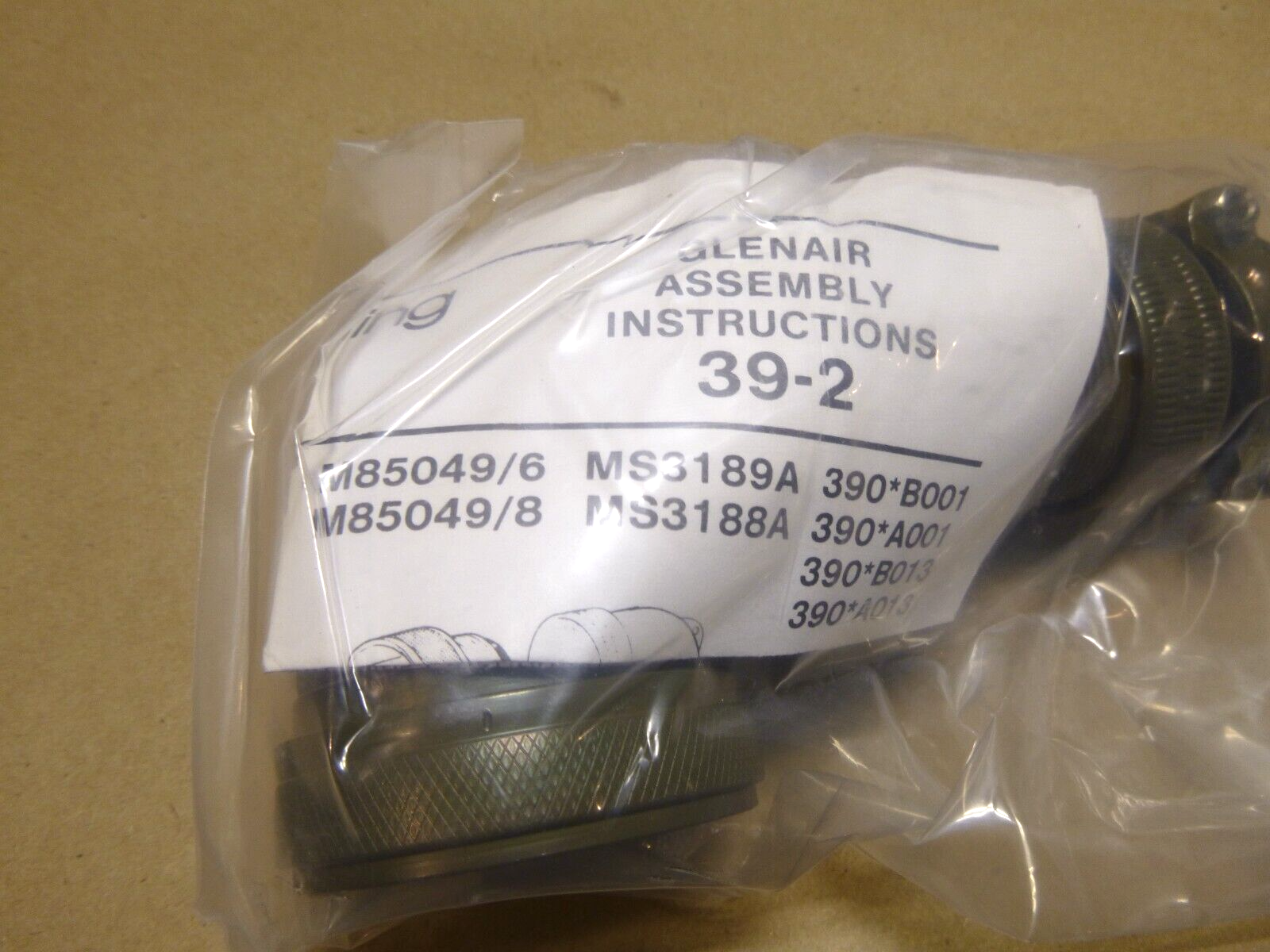

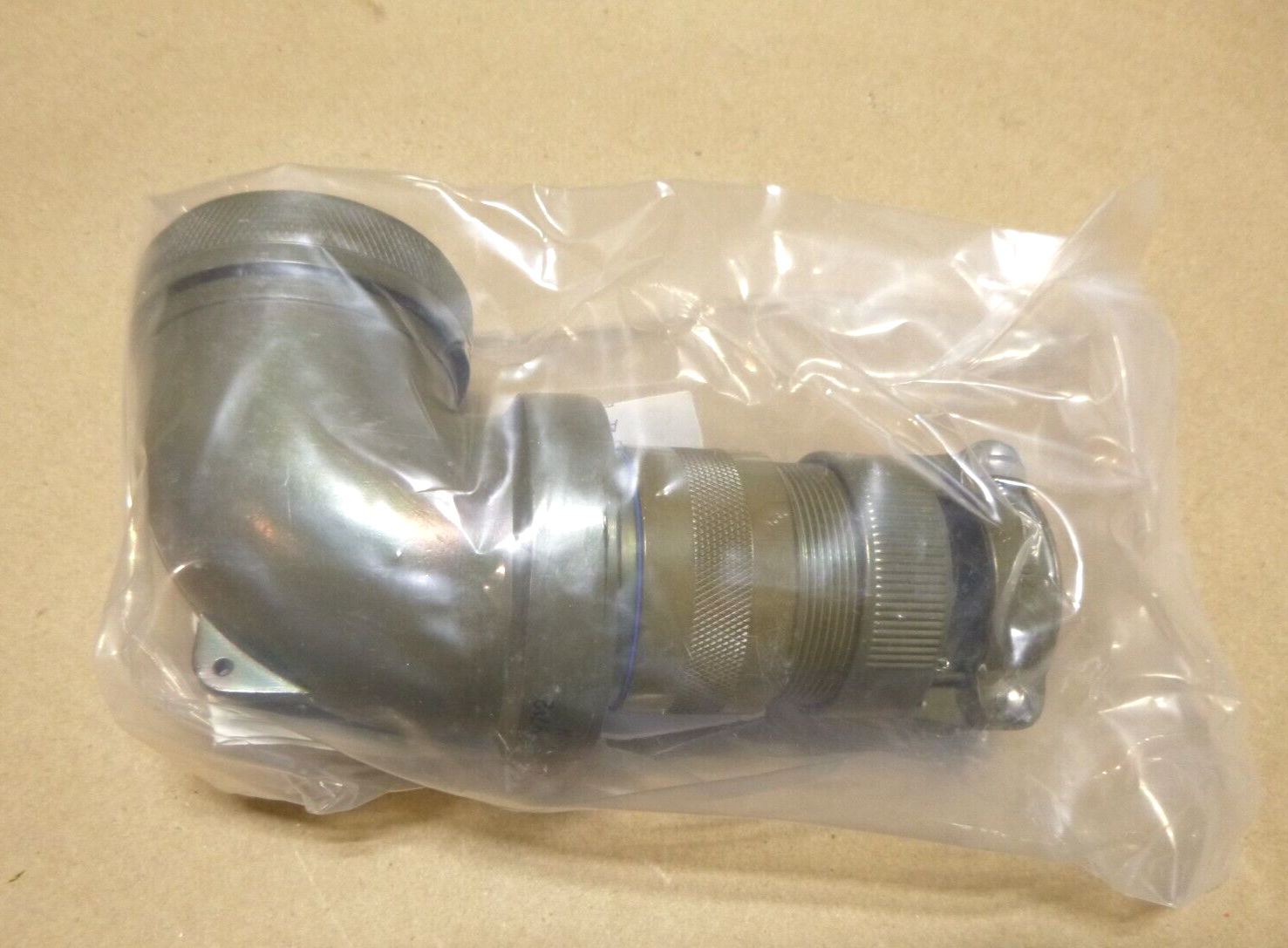

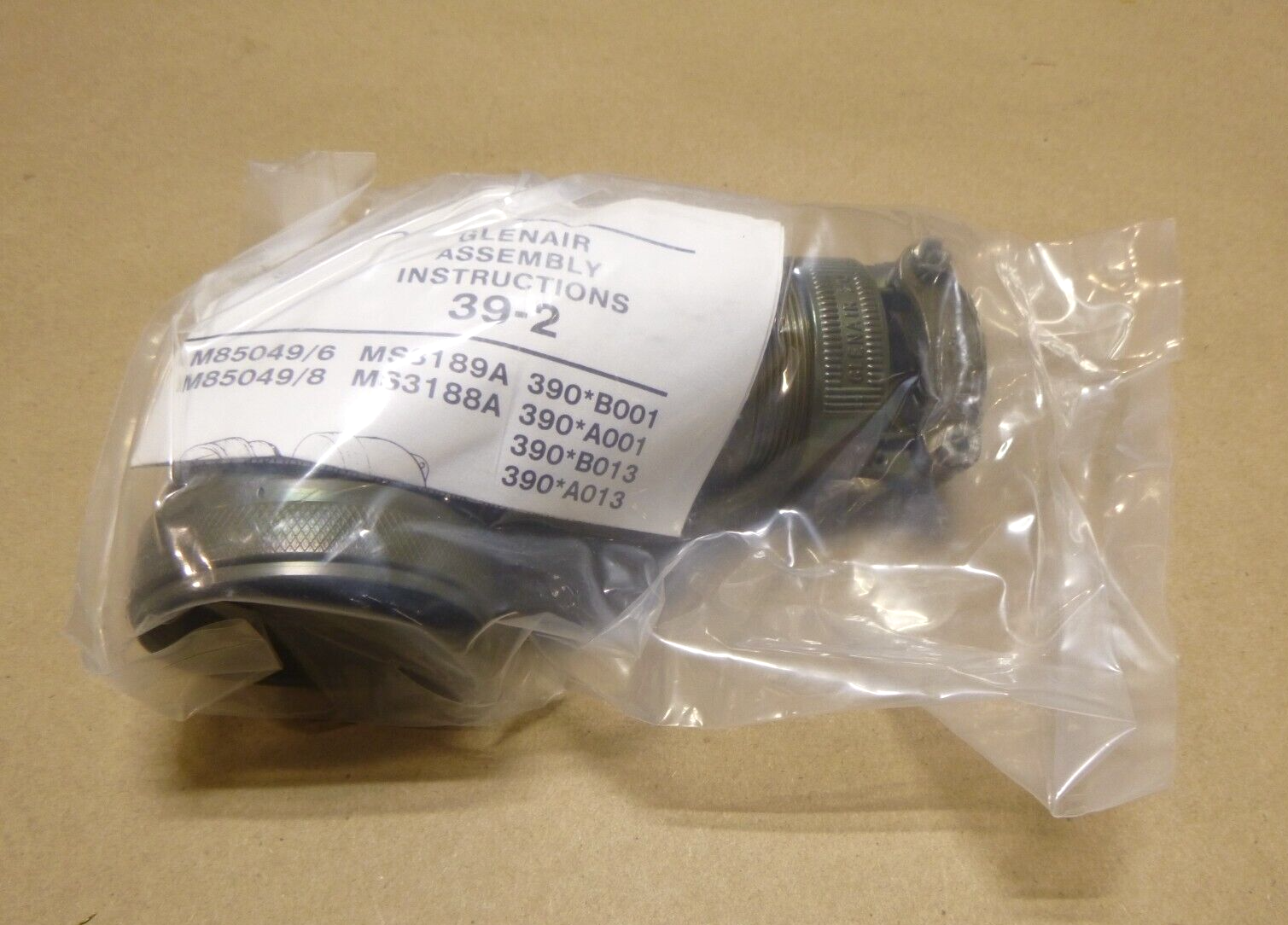

Glenair M85049/8-63W Circular MIL Spec Backshell MIL-C-5015
TECHNICAL CHARACTERISTICS
SURFACE TREATMENT
(SURF) CADMIUM AND CHROMATE
DISTANCE FROM CENTERLINE TO CABLE END
(AKFA) 5.000 INCHES NOMINAL
DISTANCE FROM CENTERLINE TO CONNECTOR END
(AKEZ) 2.106 INCHES NOMINAL
BODY ANGLE IN DEG
(ADMW) 90.0
CABLE OPENING QUANTITY
(AKRD) 1
CABLE OPENING DIAMETER
(AGTW) 0.875 INCHES MINIMUM AND 1.250 INCHES MAXIMUM
OVERALL WIDTH
(ABMK) 2.469 INCHES MAXIMUM
MATERIAL
(MATT) ALUMINUM ALLOY
MOUNTING FACILITY TYPE AND QUANTITY
(AXHR) 1 THREADED COUPLING
NOMINAL THREAD LENGTH
(AKMG) 0.290 INCHES
NOMINAL THREAD SIZE
(CQJX) 1.750 INCHES
SIZE DESIGNATION
(ALJP) 36
SEAL MATERIAL
(ABAH) RUBBER, SILICONE BASE
SEAL TYPE
(AKRF) GROMMET
SPECIFICATION/STANDARD DATA
(ZZZK) 81349-MIL-C-85049/8 GOVERNMENT SPECIFICATION
STYLE DESIGNATOR
(STYL) ANGLE TYPE W/CLAMP
SURFACE TREATMENT
(SFTT) CADMIUM AND CHROMATE
TEST DATA DOCUMENT
(TEST) 81349-MIL-C-85049 SPECIFICATION (INCLUDES ENGINEERING TYPE BULLETINS, BROCHURES,ETC., THAT REFLECT SPECIFICATION TYPE DATA IN SPECIFICATION FORMAT; EXCLUDES COMMERCIAL CATALOGS, INDUSTRY DIRECTORIES, AND SIMILAR TRADE PUBLICATIONS, REFLECTING GENERAL TYPE DATA ON CERTAIN ENVIRONMENTAL AND PERFORMANCE REQUIREMENTS AND TEST CONDITIONS THAT ARE SHOWN AS "TYPICAL", "AVERAGE", "NOMINAL", ETC.).
