3x Spicer Cm50 Transmission Shifting Rail Top Spring 44-72-2, 44-72-10

Regular price: $14.95
Regular price
Sale price: $14.95

Shipping calculated at checkout.

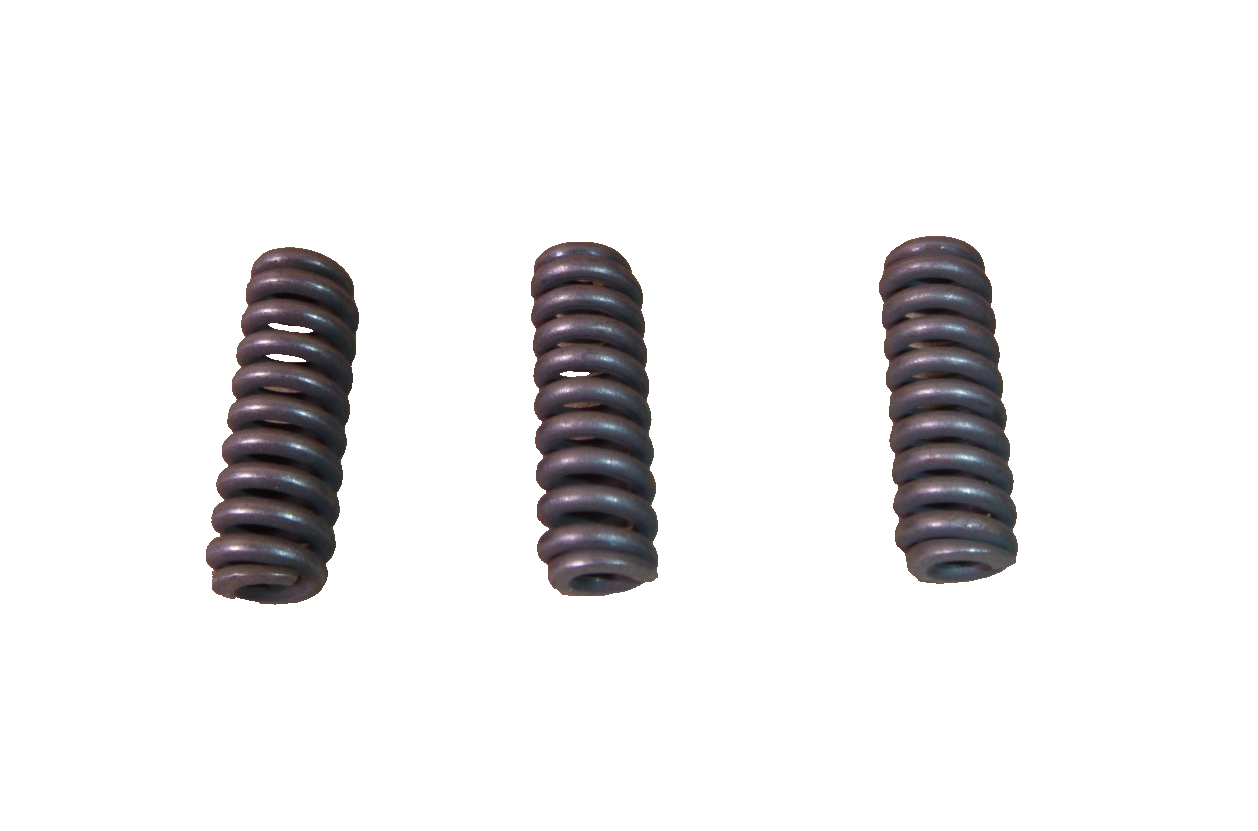

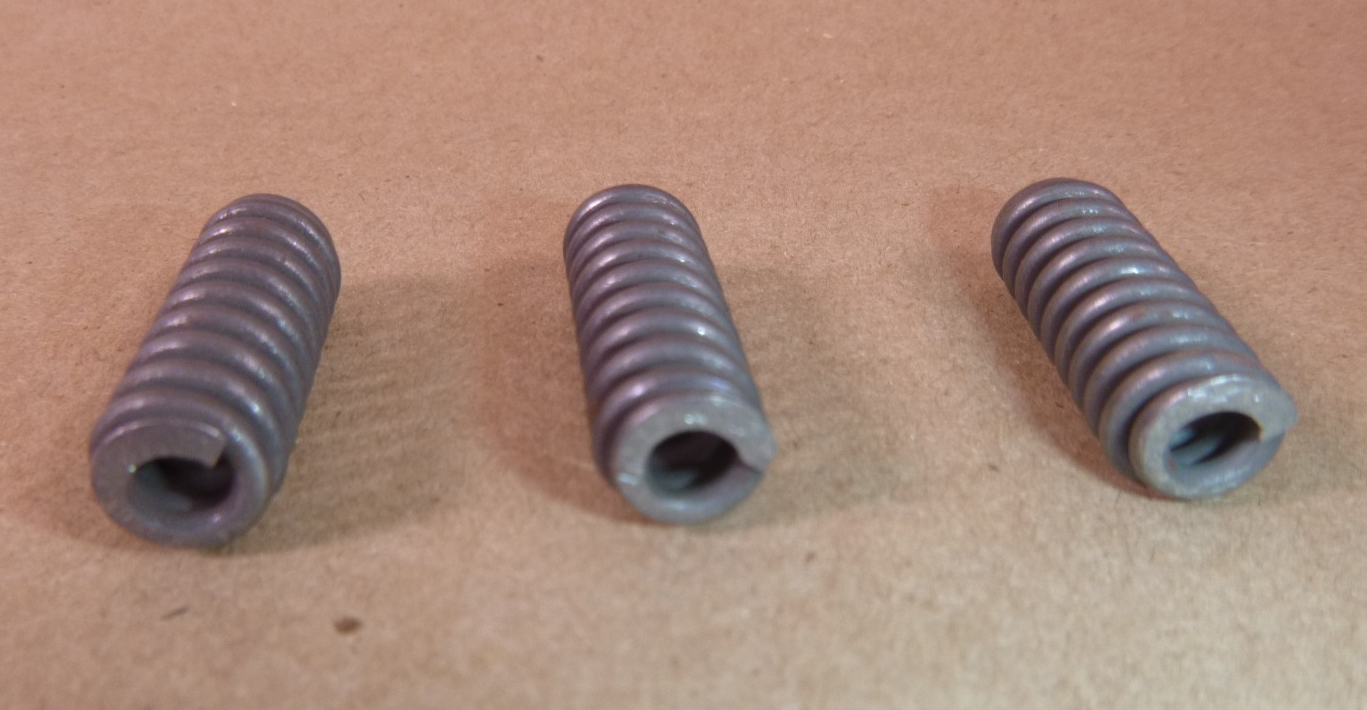

3x Spicer Cm50 Transmission Shifting Rail Top Spring

44-72-2, 44-72-10

NEW SURPLUS

Technical Characteristics

END STYLE: (ABQK) E4 SPRING END,SQUARED AND GROUND BOTH ENDS
BORE DIAMETER: (ABXV) 0.375 INCHES NOMINAL
COIL HELIX DIRECTION: (AXLH) RIGHT-HAND OR LEFT-HAND
END STYLE: (ABQK) SPRING END,SQUARED AND GROUND BOTH ENDS
INSIDE DIAMETER: (AARX) 0.209 INCHES MINIMUM AND 0.225 INCHES MAXIMUM
MATERIAL: (MATT) STEEL OVERALL
SPRING FREE LENGTH: (AGEK) 1.130 INCHES NOMINAL
SPRING FREE OUTSIDE DIAMETER: (AXLQ) 0.375 INCHES MINIMUM AND 0.391 INCHES MAXIMUM
SPRING SOLID LENGTH: (AXJQ) 0.813 INCHES NOMINAL
STYLE DESIGNATOR: (STYL) CYLINDRICAL
END STYLE: (ABQK) RIGHT HAND SQUARED AND GROUND BOTH ENDS

Shipping information

- Ships within 5-8 business days.
