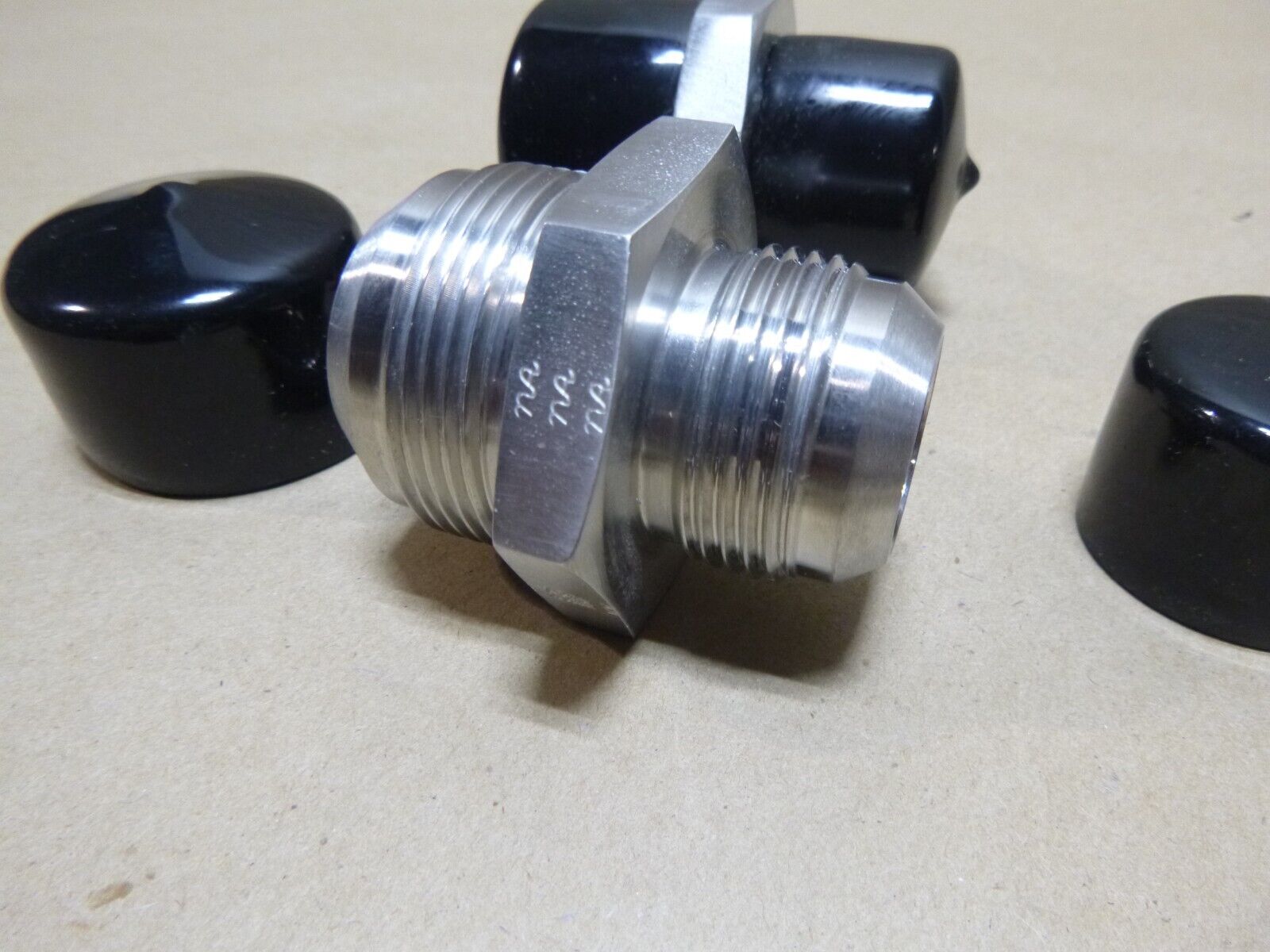

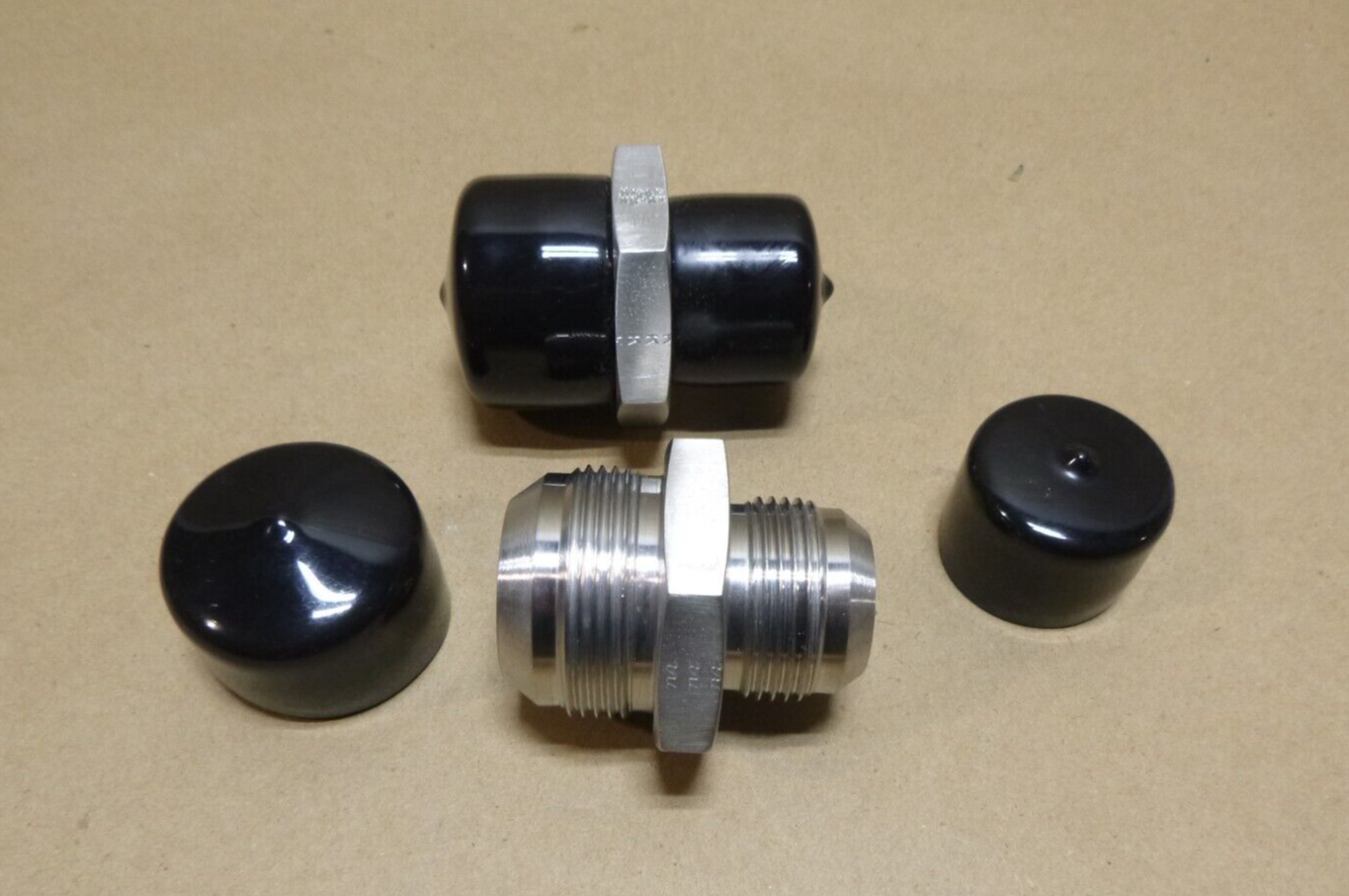

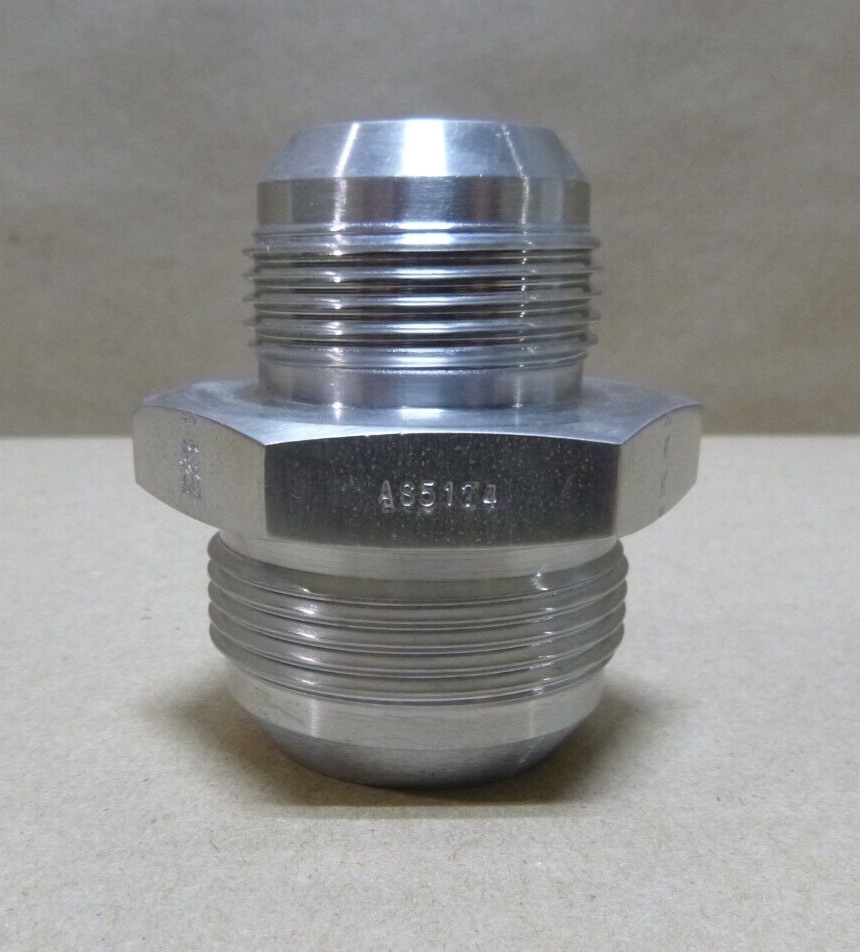

(2x) AS5174 FITTING, FLARED BOSS UNION AND REDUCER AS5174K2016, 4730-00-928-3453

Regular price: $49.99
Regular price
Sale price: $49.99

Shipping calculated at checkout.

(2x) AS5174 FITTING, FLARED BOSS UNION AND REDUCER AS5174K2016, 4730-00-928-3453

TECHNICAL CHARACTERISTICS

CONNECTION STYLE: (AHNC) FLARED W/ GASKET SEAL (BOSS) ALL ENDS
CONNECTION TYPE: (AWLS) THREADED EXTERNAL BOSS ALL ENDS
NOMINAL OVERALL LENGTH: (CWFR) 2.250 INCHES
NOMINAL THREAD SIZE: (CQJX) 1.312 INCHES 2ND END
NOMINAL THREAD SIZE: (CQJX) 1.625 INCHES 1ST END
MATERIAL DOCUMENT AND CLASSIFICATION: (MDCL) 66,AISI 316/SAE 30316 FED STD 1ST MATERIAL RESPONSE OVERALL OR 66,AISI 304/SAE 304 FED STD 2ND MATERIAL RESPONSE OVERALL OR 66,AISI 347/SAE 30347 FED STD 3RD MATERIAL RESPONSE OVERALL
MATERIAL: (MATT) STEEL COMP 316 OVERALL OR STEEL COMP 304 OVERALL OR STEEL COMP 347 OVERALL
MAXIMUM OPERATING PRESSURE: (CQGM) 1500.0 POUNDS PER SQUARE INCH SINGLE RESPONSE
MAXIMUM OPERATING TEMP: (AEHZ) 71.0 DEG CELSIUS SINGLE RESPONSE
MEDIA FOR WHICH DESIGNED: (MEDA) AERONAUTICAL FLUID 3RD RESPONSE
MEDIA FOR WHICH DESIGNED: (MEDA) HYDRAULIC FLUID 1ST RESPONSE
MEDIA FOR WHICH DESIGNED: (MEDA) OXYGEN, GASEOUS 2ND RESPONSE
REDUCER TYPE: (ACSP) CONCENTRIC
THREAD CLASS: (AAJD) 3A ALL ENDS
THREAD QUANTITY PER INCH: (CMLP) 12 ALL ENDS
THREAD SERIES DESIGNATOR: (THSD) UN ALL ENDS
SPECIFICATION/STANDARD DATA: (ZZZK) 96906-MS24399 GOVERNMENT STANDARD
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION: (STDC) MIL-S-5002 MIL SPEC 1ST TREATMENT RESPONSE OVERALL AND QQ-P-35,TY 1 FED SPEC 2ND TREATMENT RESPONSE OVERALL

Shipping information

- Ships within 5-8 business days.

Hurry, only 1 item left in stock!
