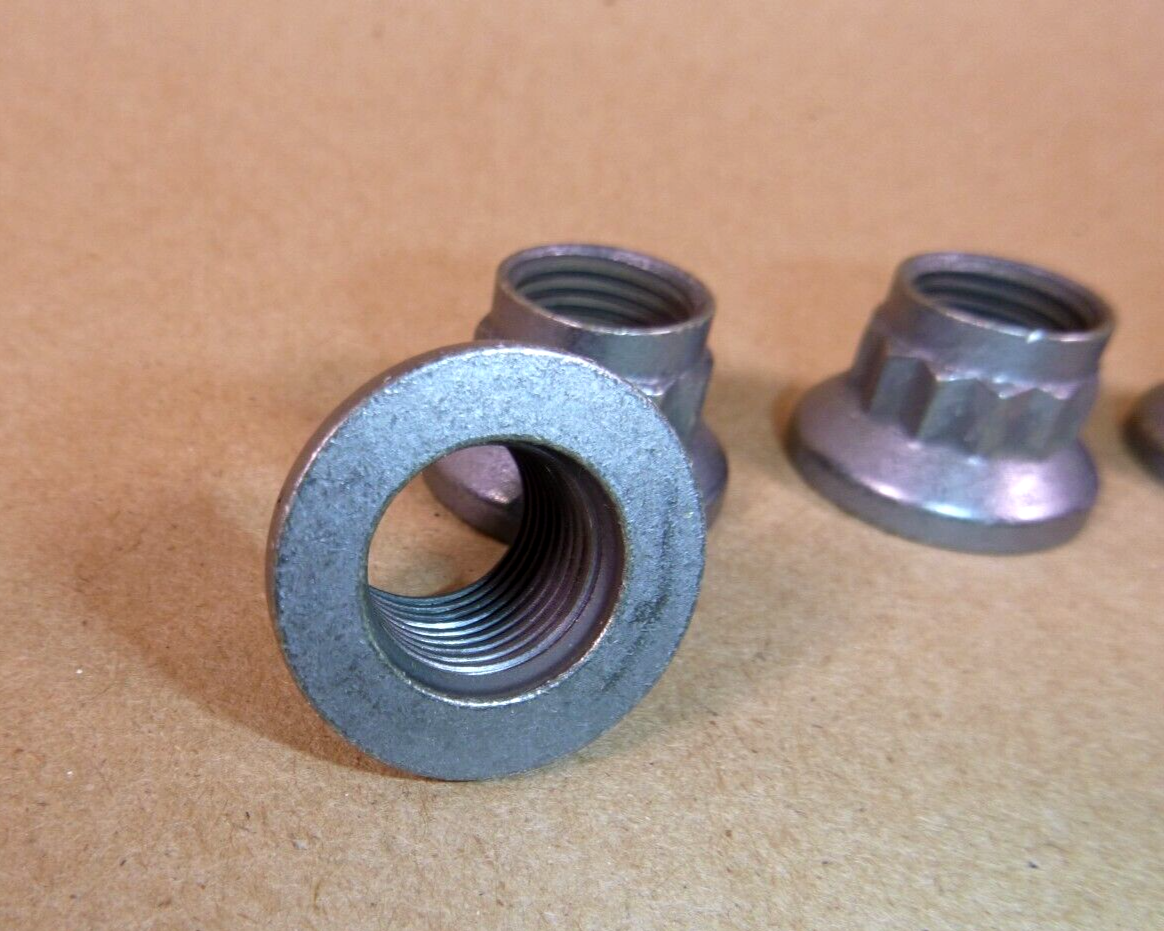

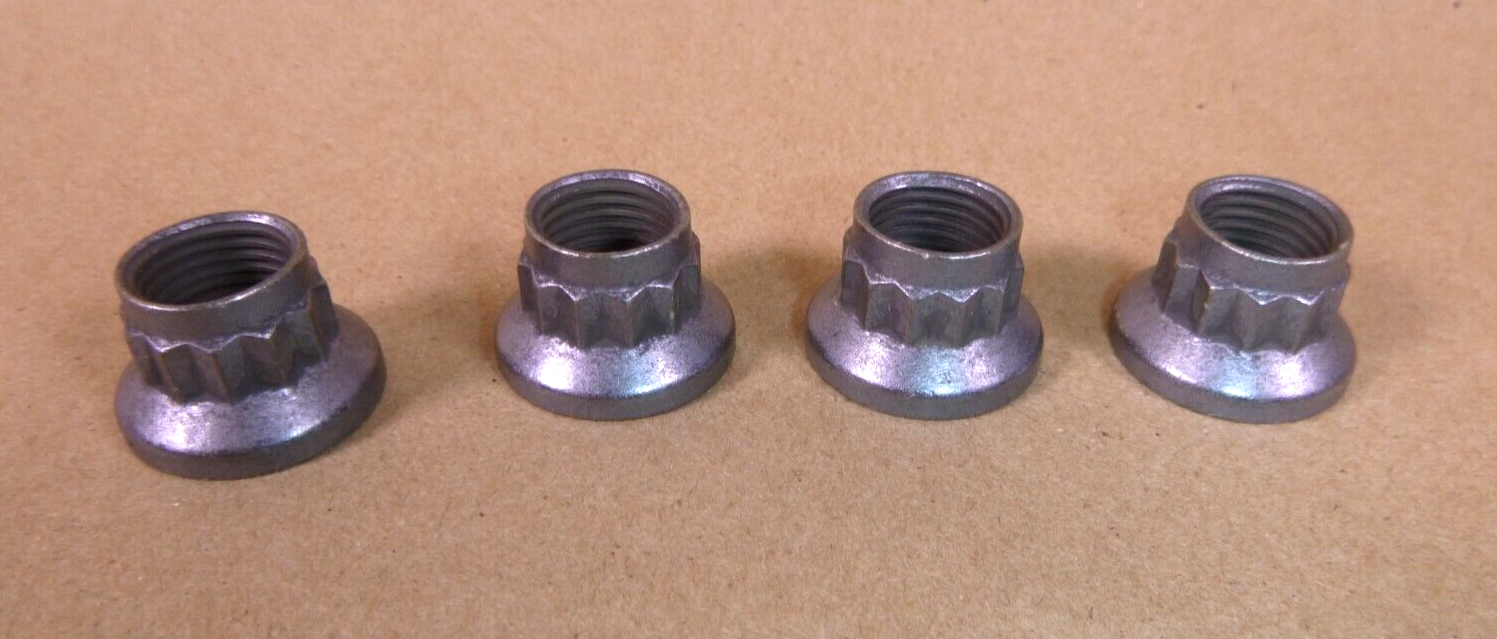

1/2-20 12 Point Self Locking Flange Nut 500 Deg F. Dry Film Lubricated (4 Pcs)

Regular price: $28.95
Regular price
Sale price: $28.95

Shipping calculated at checkout.

1/2-20 12 Point Self Locking Flange Nut 500 Deg F. Dry Film Lubricated (4 Pcs)

Technical Characteristics

BEARING SURFACE TYPE: (CRTM) FLAT
COUNTERSINK ANGLE: (CRSQ) 109.5 DEGREES MINIMUM AND 110.5 DEGREES MAXIMUM NUT
LOCKING FEATURE: (AAUM) PREVAILING TORQUE ALL METAL DESIGN
LUBRICATION: (ABAJ) DRY FILM LUBRICANT
MATERIAL: (MATT) STEEL OVERALL
NOMINAL THREAD SIZE: (CQJX) 0.500 INCHES
NUT HEIGHT: (ADEA) 0.578 INCHES MAXIMUM
NUT STYLE: (ACTA) DOUBLE HEXAGON
SPECIAL TEST FEATURES: (SPCL) 100% MPI INSPECTION
WIDTH ACROSS FLATS: (ASDB) 0.553 INCHES MINIMUM AND 0.565 INCHES MAXIMUM
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION: (STDC) QQ-P-416,TY 1,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT: (SFTT) CADMIUM OVERALL
TEMP RATING: (AZKQ) 500.0 FAHRENHEIT NOMINAL
THREAD CLASS: (AAJD) 3B
THREAD DIRECTION: (AAJF) RIGHT-HAND
THREAD QUANTITY PER INCH: (CMLP) 20
THREAD SERIES: (BZRR) UNF
TEMP RATING: (AZKQ) 500.0 DEG FAHRENHEIT NOMINAL
