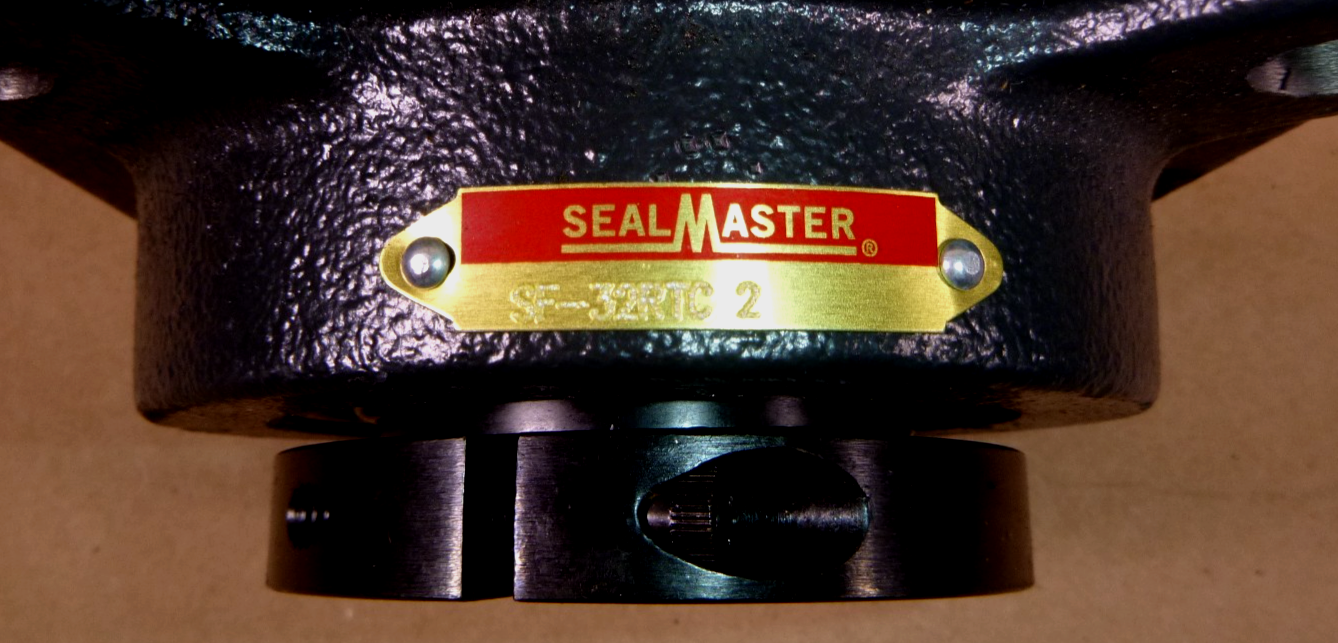

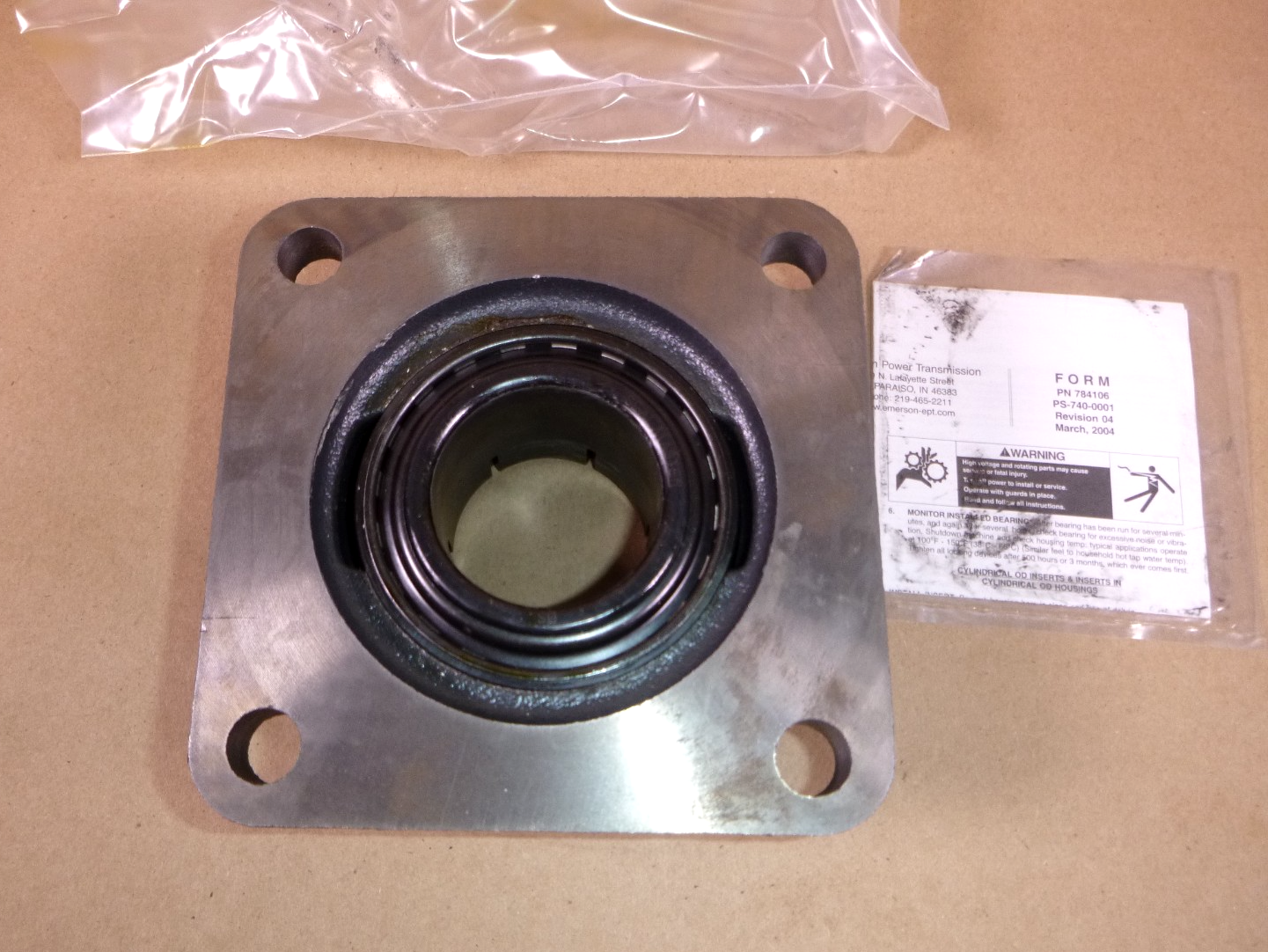

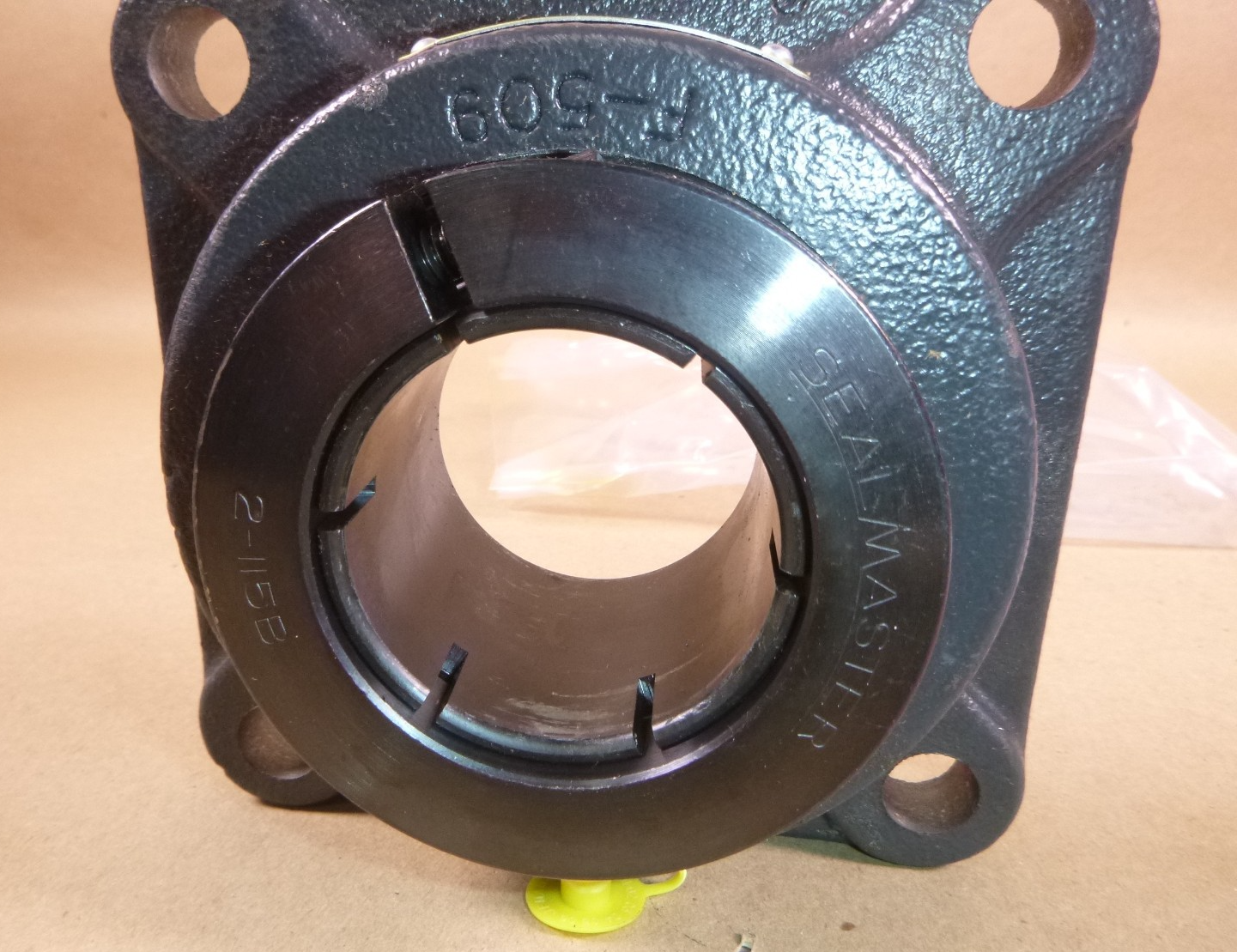

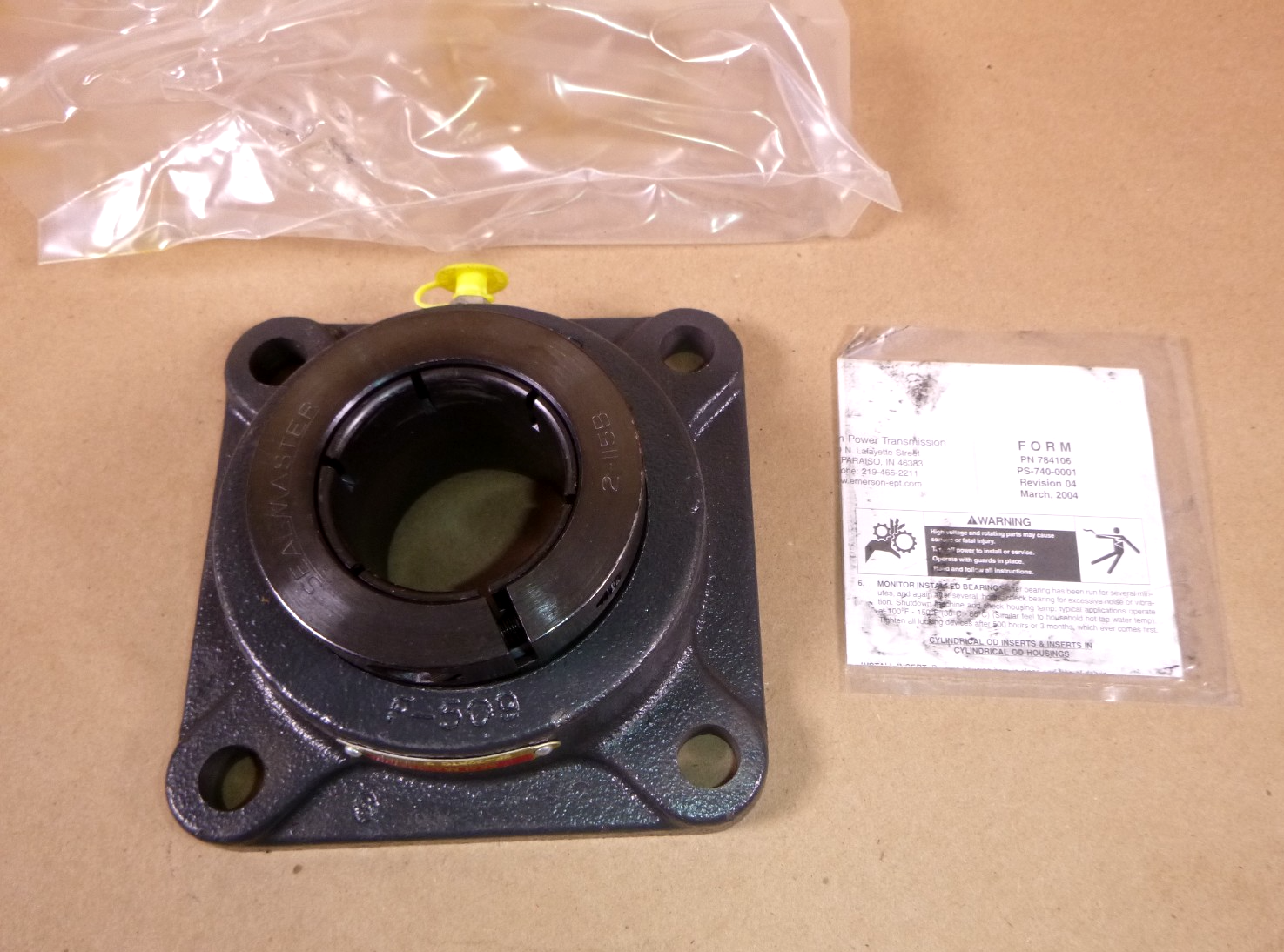

SF-32RTC Sealmaster 2" Inch Four Bolt Flange Mounted Bearing Concentric Lock

Regular price: $347.95
Regular price
Sale price: $347.95

Shipping calculated at checkout.

SF-32RTC Sealmaster 2" Inch Four Bolt HD Flange Mounted Bearing Concentric Lock

NEW SURPLUS

Dimensions

Overall Width (in):	5.63 in	Bolt Size (in):	9/16 in
Overall Length (in):	5.63 in	Overall Height (in):	2.3 in
Bore Diameter (in):	2 in	Foot Height (in):	0.56 in
Length Through Bore (in):	2.17 in	Bolt Spacing (in):	4.3750 in

Technical Specifications

Rolling Element:	Ball Bearing	Bore Shape:	Straight
Pilot Configuration:	No Pilot	Housing Construction:	One Piece
Outer Ring Land Profile:	Standard	Housing Color:	Black
Misalignment Type:	Static Only	Cage Material:	PPS - Polyphenylene Sulfide
Seal Type:	Single Lip Contact Seal	Housing Type:	Flange, Four Bolt
Housing Style:	Flange Block	Locking Collar Outside Diameter (in):	3.35 in
Inner Race Heat Treat Method:	Zone-Hardened	Ability to Relubricate:	Yes
Misalignment Capability:	±2.0° Misalignment - Static Only	Housing Material:	Cast Iron
Cage Type:	Land Riding Retainer	Grease Fitting Thread Size:	1/8 NPT
Size Code:	2-115	Inner Ring Outside Diameter (in):	2.469 in
Radial Clearance:	Standard	Housing Backside Inner Diameter:	4
Dynamic Load Rating (lb):	7,889 lb	Fixed vs. Expansion:	Fixed
Max Operating Temperature (F):	220 °F	End Cap Available:	No
Lubricant:	Lithium Complex NLGI 2 Grease	Housing Coating:	Powder Coated
Bearing Insert Finish:	Black Oxide	Bearing Insert Material:	52100 Bearing Steel
Insert:	1-2TC	Shaft Locking Type:	Concentric
Static Load Rating (lb):	5,216 lb	Maximum Speed (RPM):	3550 rpm

Hurry, only 2 items left in stock!
