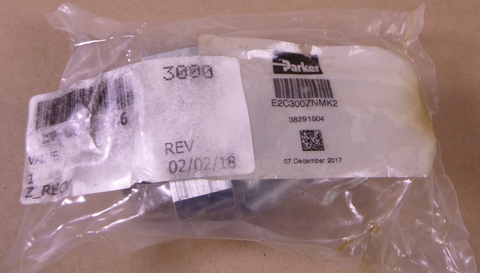

E2C300ZNMK2 Parker Standard Pilot Assisted Load Control Valve 92 GAL/MIN

$399.99
Availability: In-Stock
Quantity
Call: 702-268-8156

Technical Specifications

Division: Hydraulic Valve Systems Division Europe
Maximum Flow Rate: 92 GAL/MIN, 350 L/MIN
Maximum Flow Rate: 92 gal/min, 350 L/min
Mounting Type: Threaded Cartridge Valve, Flanged Cartrdige Valve
Pilot Pressure Ratio: 3:1
Adjustment Mechanism: Screw
Pilot Pressure Ratio: 3:1, 3:01
Adjustment Mechanism: Screw, Screw Adjustment
Mounting Type: Flanged Cartridge Valve
Holding Pressure: 3120 PSI, 215 BAR
Holding Pressure: 3120 psi, 215 bar
Pressure Control Range: 725-5000 PSI, 50-350 BAR
Port Size: N/A
Seal Material: Nitrile
Pressure Control Range: 725 to 5000 psi, 50 to 350 bar
Port Size: N/A
Seal Material: Nitrile
Flow Rate: 92 gal/min, 350 L/min
Maximum Operating Pressure: 5000 psi, 350 bar
Port Thread Size: N/A
Maximum Inlet Pressure Rating: 5000 psi, 350 bar
Pressure Control Sensitivity: 653 per turn psi, 45 per turn bar
Operating Temperature: -30° to +250° °F, -34° to +121° °C, -30 to +250 °F, -34 to +121 °C
Function: Counterbalance Valve
Actuation Type: Pilot Operated
Pilot Location: External
Body Material: N/A
Maximum Kinematic Viscosity: Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt, 45-2000 SSU (6 to 420 cSt)
Flow Direction: Cylinder port 1, Valve port 2, Pilot port 3
Filter Efficiency Rating: ISO 4406:1999 Code 18/16/13, ISO 4406 18/16/13, SAE Class 4
Leak Rate: 6 @ 1450 PSI (100 BAR) drops/min
Cavity Size: 3K
Installation Torque: N/A Nm, 22 lb-ft, N/A lb-ft, 30 Nm
For Fluid Type: Mineral-based or synthetic hydraulic fluids
Valve Material: All parts steel. All operating parts hardened steel
Maximum Operating Temperature: +250 °F, +121 °C
Minimum Operating Temperature: -30 °F, -34 °C
Weight: 3.17 lb, 1.44 kg

NEW SURPLUS
