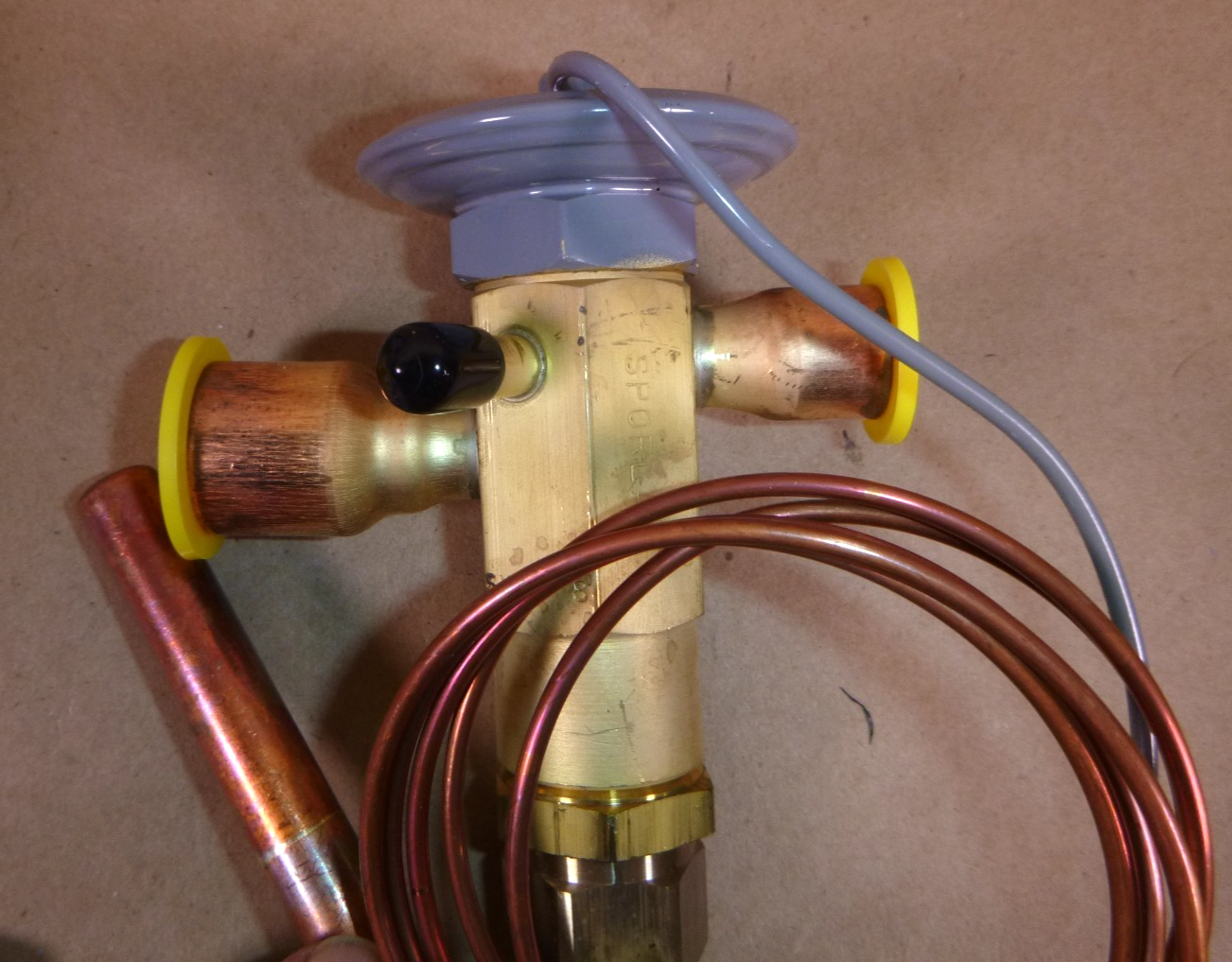

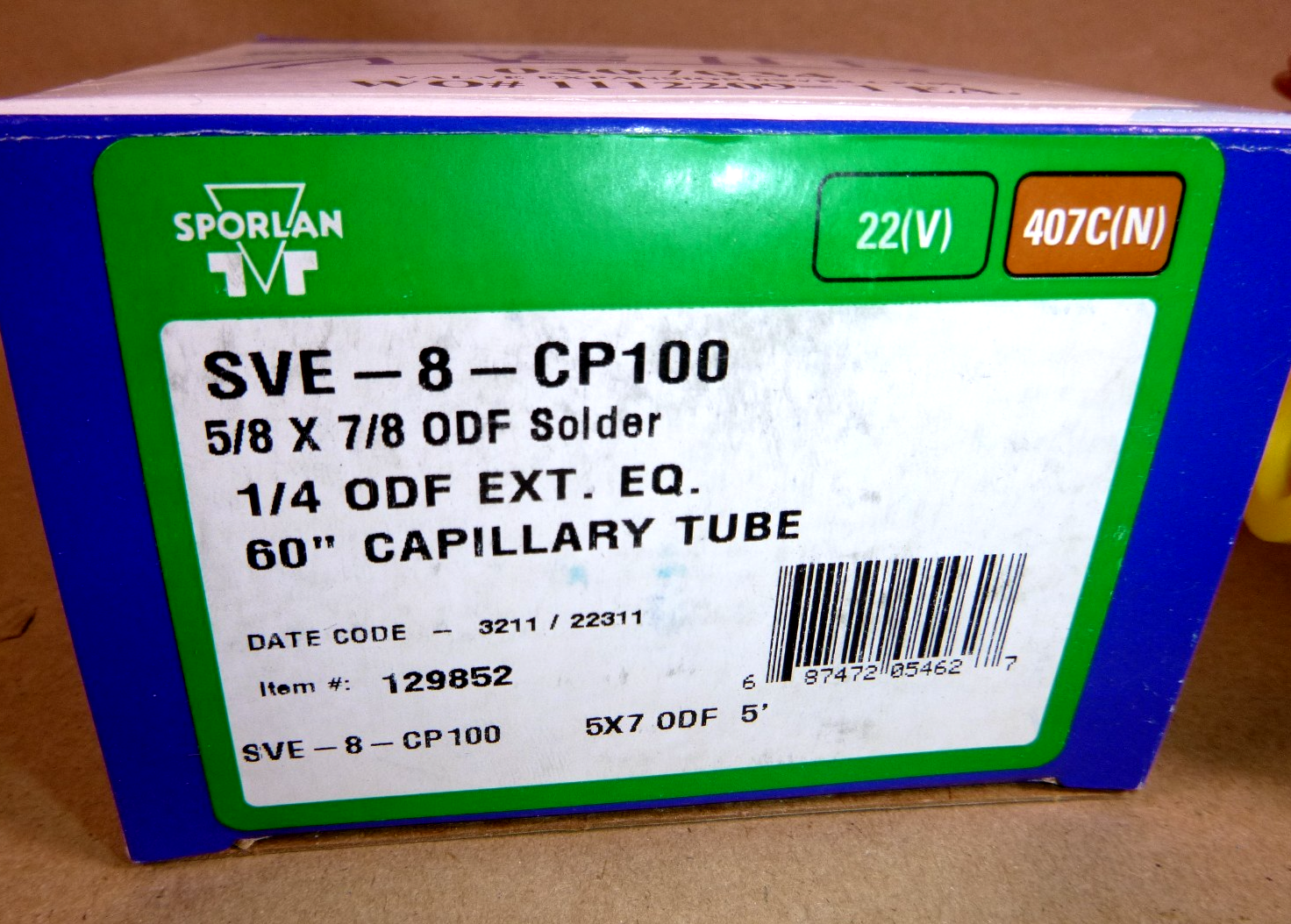

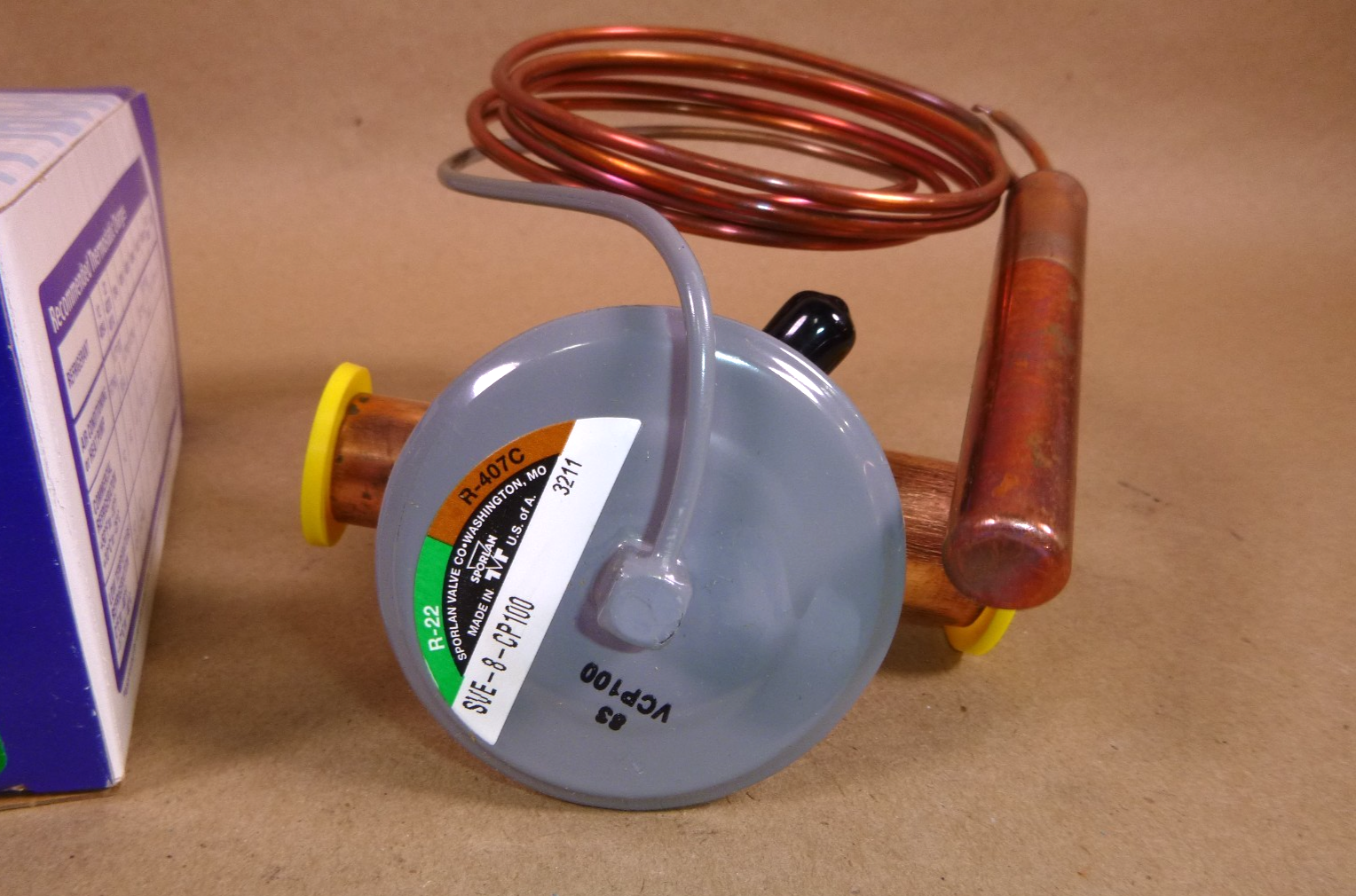

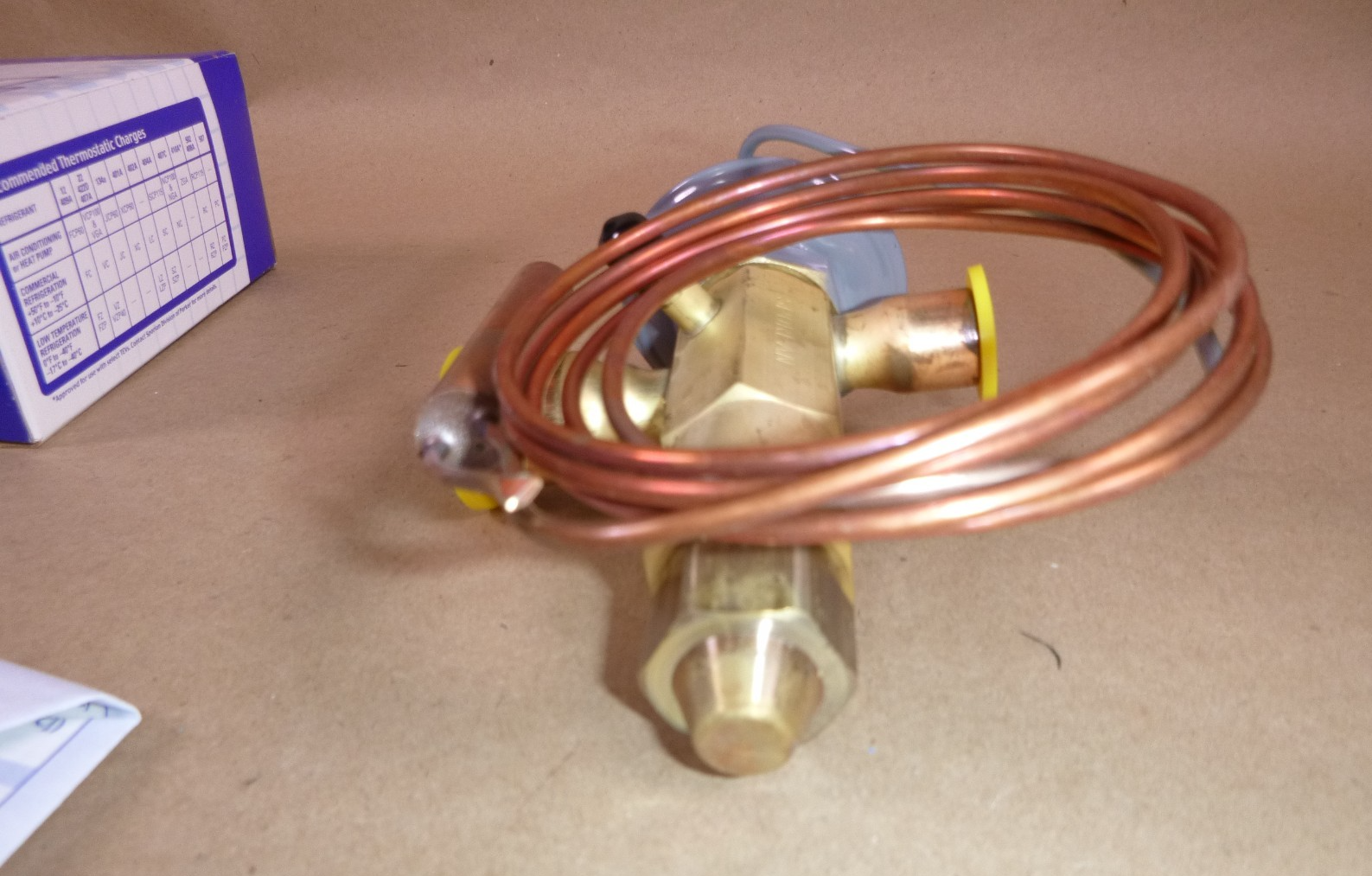

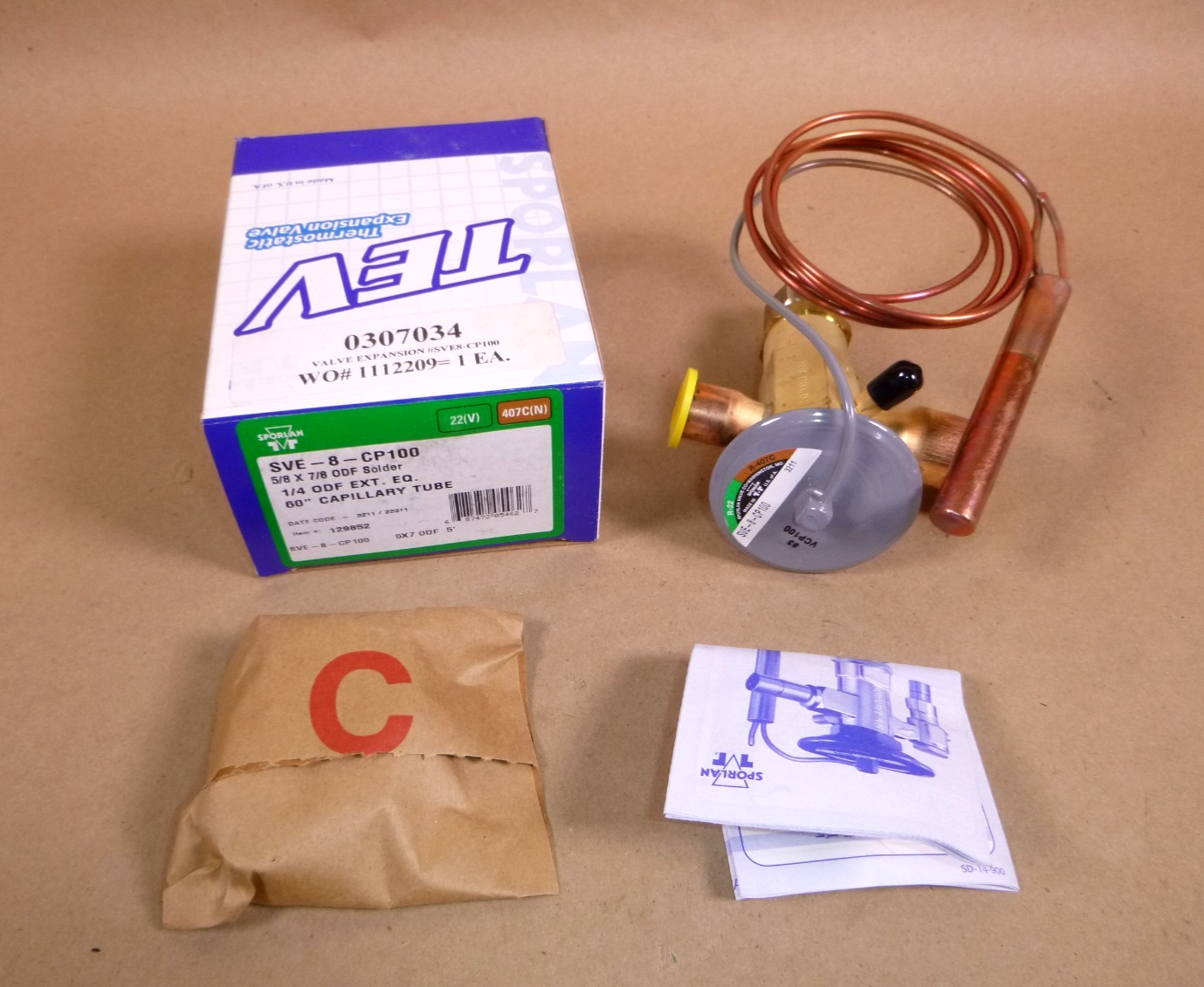

129852 Sporlan 8 Ton Thermostatic Expansion Valve R-22 / R-407C, SVE-8-CP100
- Regular price
-
$139.95 - Regular price
-
- Sale price
-
$139.95
Shipping calculated at checkout.
129852 Sporlan Thermostatic Expansion Valve
R-22 / R-407C, SVE-8-CP100
NEW SURPLUS
| Outlet Connection Size (inch): | 7/8" ODF |
| Capillary Length (m): | 1.524 m |
| Nominal Capacity (ton): | 8 ton |
| Inlet Connection Size (inch): | 5/8" ODF |
| Equalizer Method: | Externally Equalized |
| Model Number: | SVE-8-CP100 5X7 ODF 5' |
| Application: | Air Conditioning |
| Capillary Length (inch): | 5' |
| Thermostatic Charge: | CP100 |
| Refrigerant Type: | R-22 |
| Application: | Air Conditioning |
| Product Type: | S- Valve |
| Refrigerant Type: | R-22 |
| Thermostatic Charge: | CP100 |
| Evaporator Temperature: | 40 °F (nom), 5 °C (nom) |
| Liquid Temperature: | 100 °F (nom), 37.8 °C (nom) |
| Pressure Drop: | 100 psi (nom), 6 bar (nom) |
| Nominal Capacity: | 8 ton |
| Inlet Connection Size: | 5/8 inch ODF |
| Outlet Connection Size: | 7/8 inch (ODF) |
| Maximum Operating Pressure: | 31 bar, 450 psi |
| Equalizer Connection Type: | Externally Equalized |
| Capillary Tube Length: | 1.524 m, 5 ft |
| Strainer Type: | 12 Mesh Permanent |
| Filter Element Type: | 83 |
