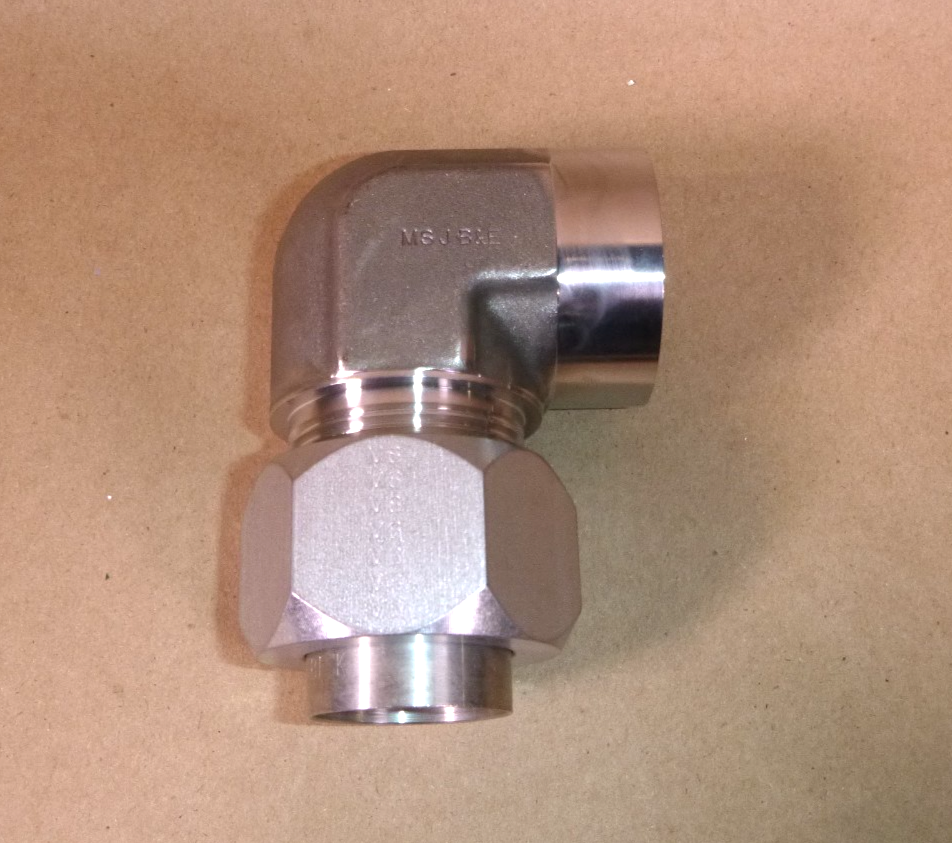

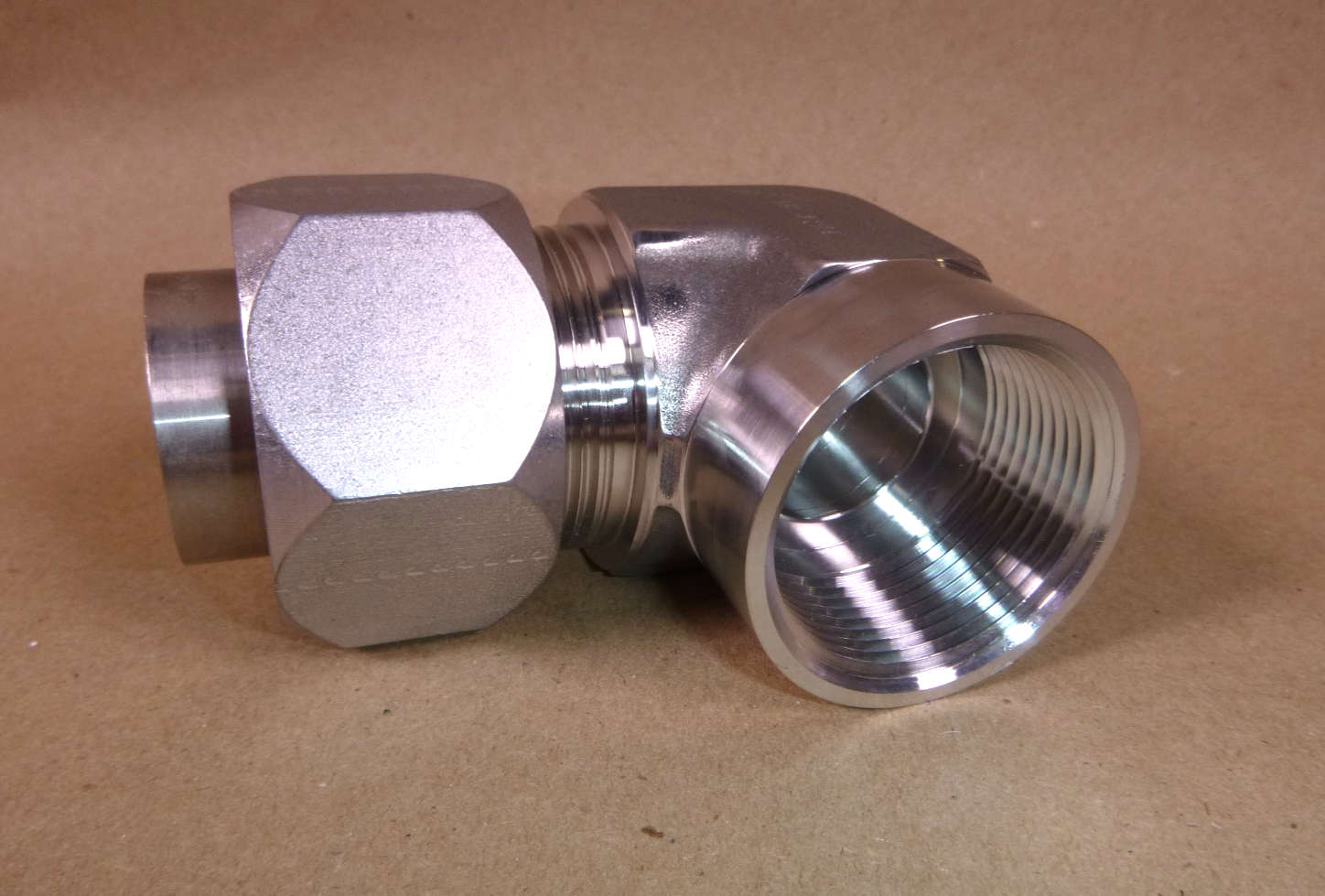

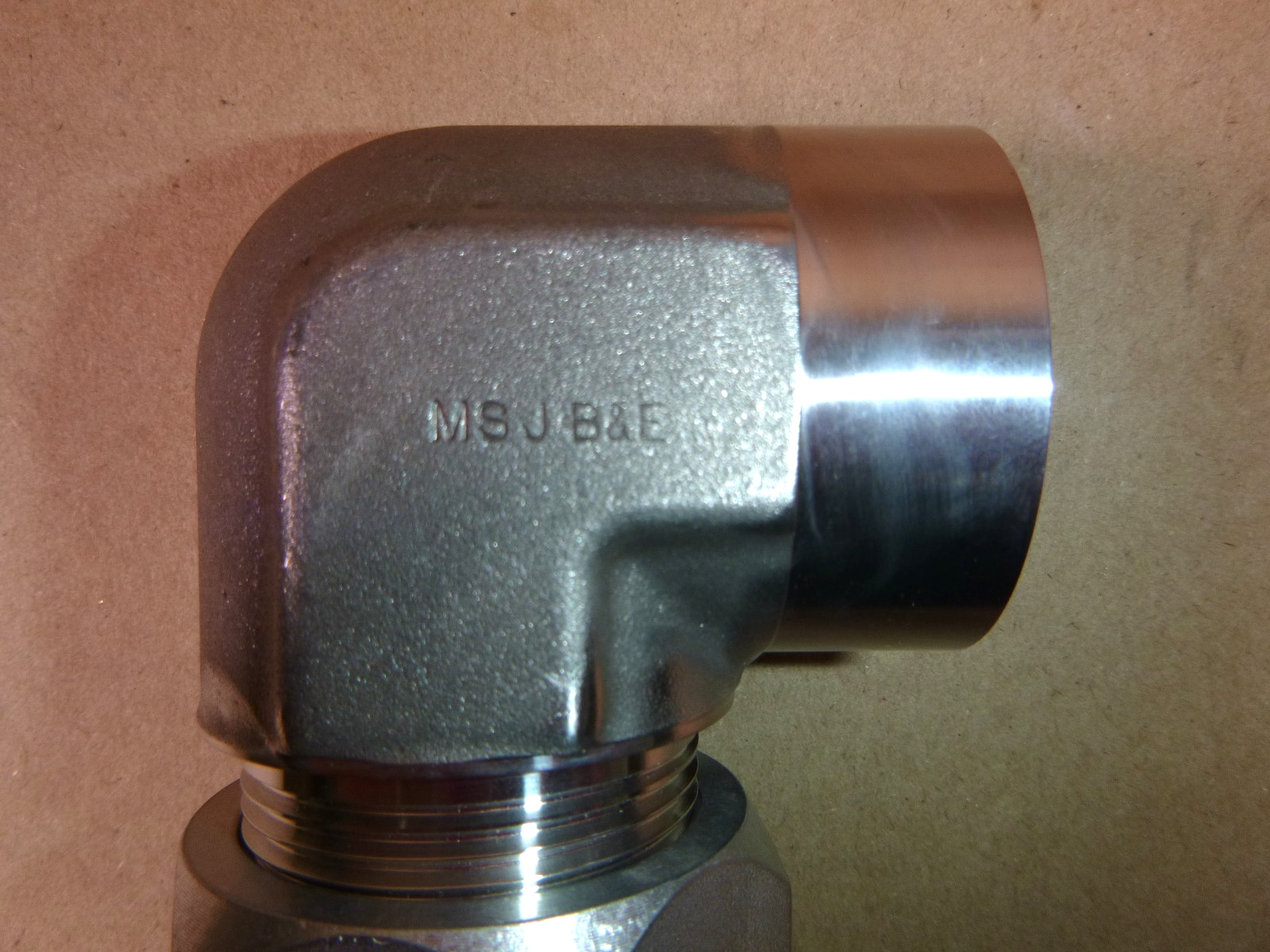

1-1/4" Tube To Pipe Stainless Steel Hydraulic 90° Elbow 37° Flare JIC To FNPT
-
Regular price
-
-
Sale price
-
$187.95
1-1/4" Tube To Pipe Stainless Steel Hydraulic
90° Elbow 37° Flare JIC To FNPT
NEW SURPLUS WITHOUT THE FACTORY PACKAGING
ALTERNATIVE PART NUMBERS MIL-DTL-18866, MS51506A20S, MS51506B20S, 20DBTX-SS, 20-20 070203SA
- CONNECTION STYLE
- (AHNC) PLAIN (PIPE) 2ND END
- CONNECTION STYLE
- (AHNC) FLARED (TUBE) FIRST END
- CONNECTION STYLE
- (AHNC) PLAIN (PIPE) SECOND END
- CONNECTION TYPE
- (AWLS) THREADED EXTERNAL TUBE FIRST END
- CONNECTION TYPE
- (AWLS) THREADED INTERNAL PIPE SECOND END
- FURNISHED ITEMS AND QUANTITY

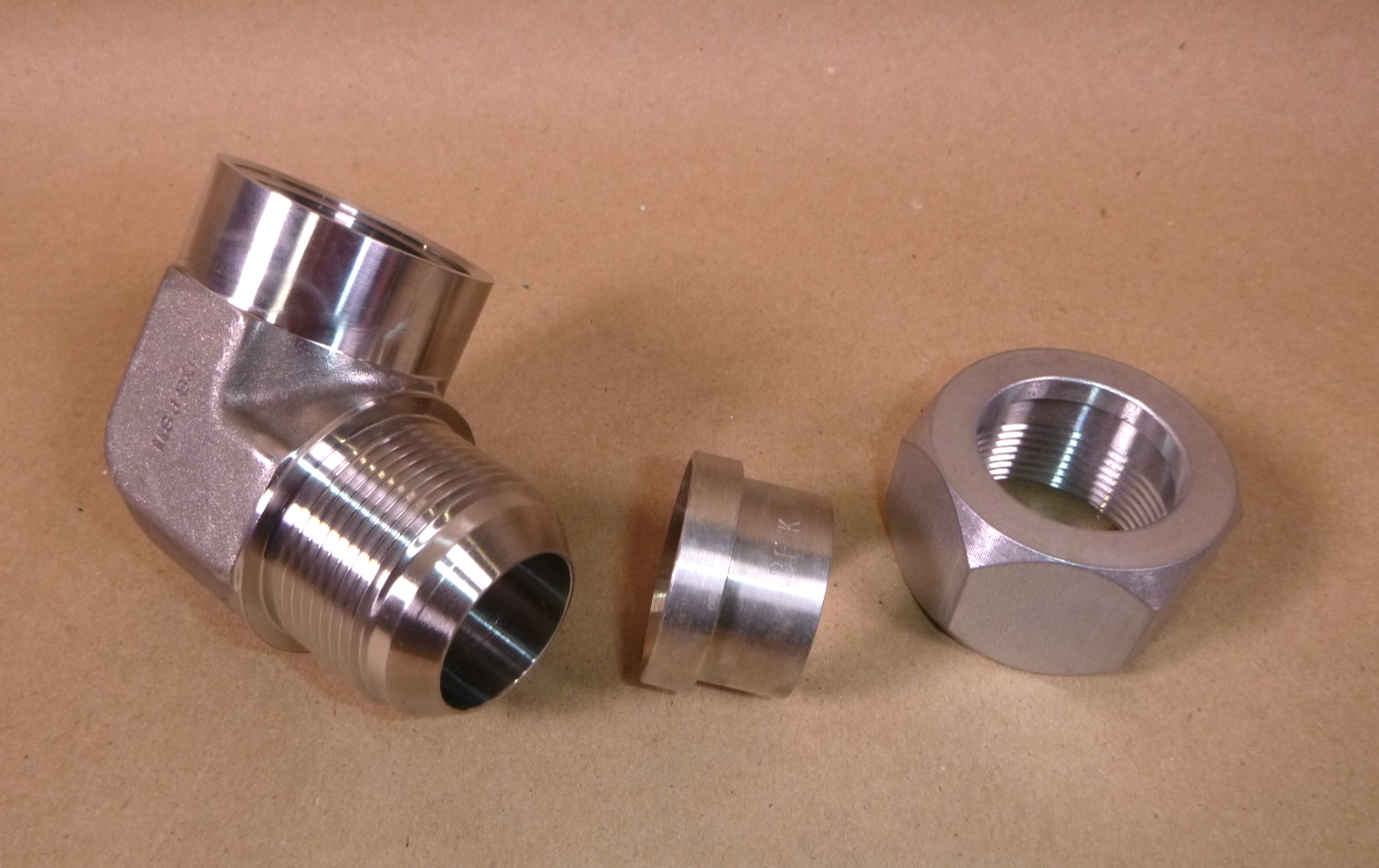

- (TMQY) 1 TUBE COUPLING NUT W/SLEEVE
- FLOW ANGLE
- (CRFY) 90.0 DEGREES
- LEG LENGTH
- (AHSJ) 1.703 INCHES NOMINAL SECOND END
- LEG LENGTH
- (AHSJ) 2.328 INCHES NOMINAL FIRST END
- MATERIAL
- (MATT) STEEL CORROSION RESISTING OVERALL
- NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED
- (CWFD) 1.250 INCHES FIRST END
- NOMINAL THREAD SIZE
- (CQJX) 1.250 INCHES SECOND END
- NONDEFINITIVE SPEC/STD DATA
- (ZZZT) 5A FIGURE
- SEAT ANGLE
- (CQRB) 37.0 DEGREES FIRST END
- THREAD QUANTITY PER INCH
- (CMLP) 12 FIRST END
- THREAD SERIES DESIGNATOR
- (THSD) NPTF SECOND END
- THREAD SERIES DESIGNATOR
- (THSD) UN FIRST END
- SPECIFICATION/STANDARD DATA
- (ZZZK) 96906-MS51506 GOVERNMENT STANDARD AND 81343-J514 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
- THREAD CLASS
- (AAJD) 2A FIRST END
- NOMINAL THREAD SIZE
- (CQJX) 1.625 INCHES 1ST END
- THREAD CLASS
- (AAJD) 2A 1ST END
- THREAD QUANTITY PER INCH
- (CMLP) 12 1ST END
- NOMINAL THREAD SIZE
- (CQJX) 1.250 INCHES 2ND END
- CONNECTION STYLE
- (AHNC) FLARED (TUBE) 1ST END
- SEAT ANGLE
- (CQRB) 37.0 DEGREES 1ST END
- THREAD SERIES DESIGNATOR
- (THSD) UN 1ST END
- NOMINAL OUTSIDE DIAMETER TUBE ACCOMMODATED
- (CWFD) 1.250 INCHES 1ST END
- THREAD SERIES DESIGNATOR
- (THSD) NPTF 2ND END
