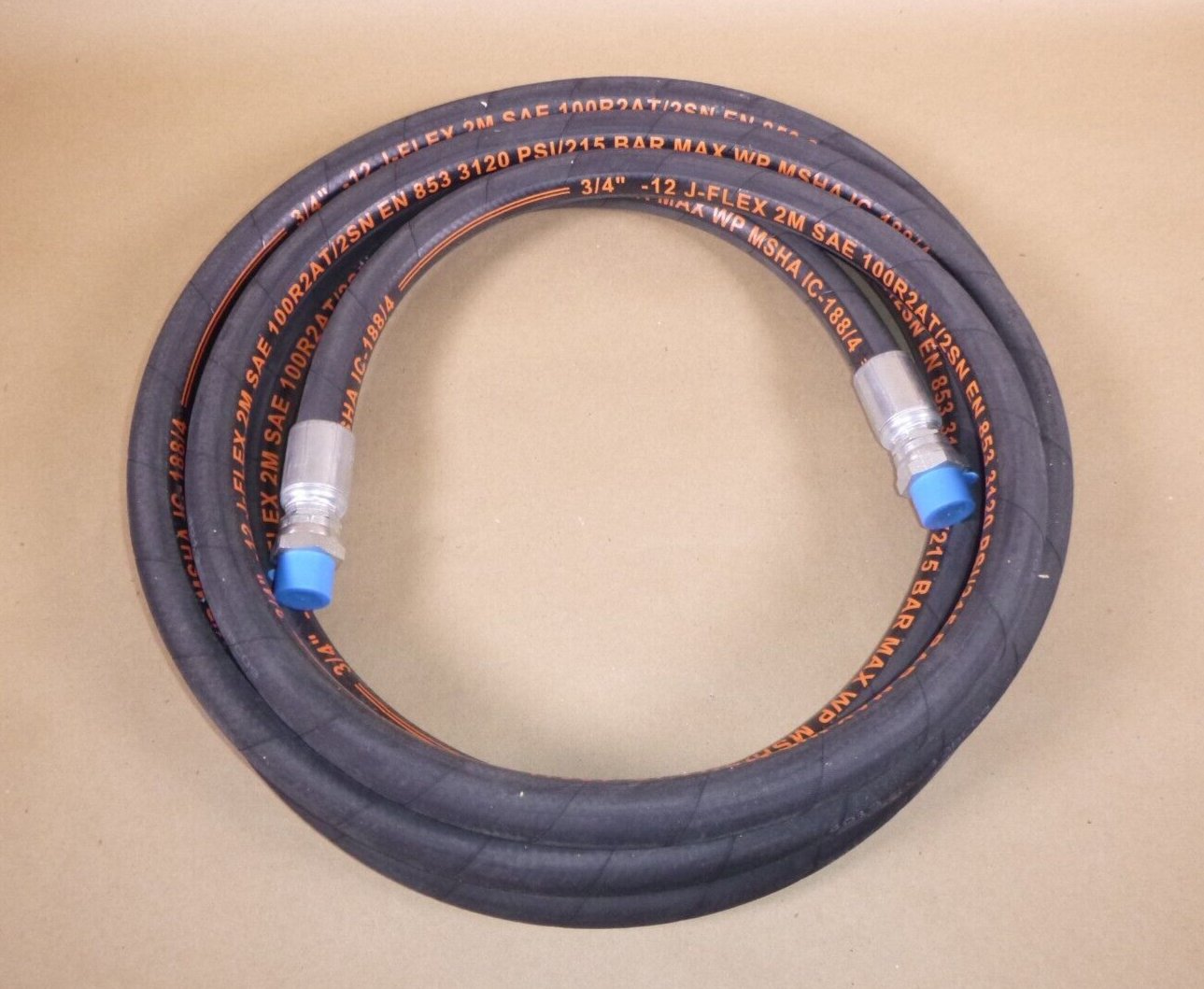

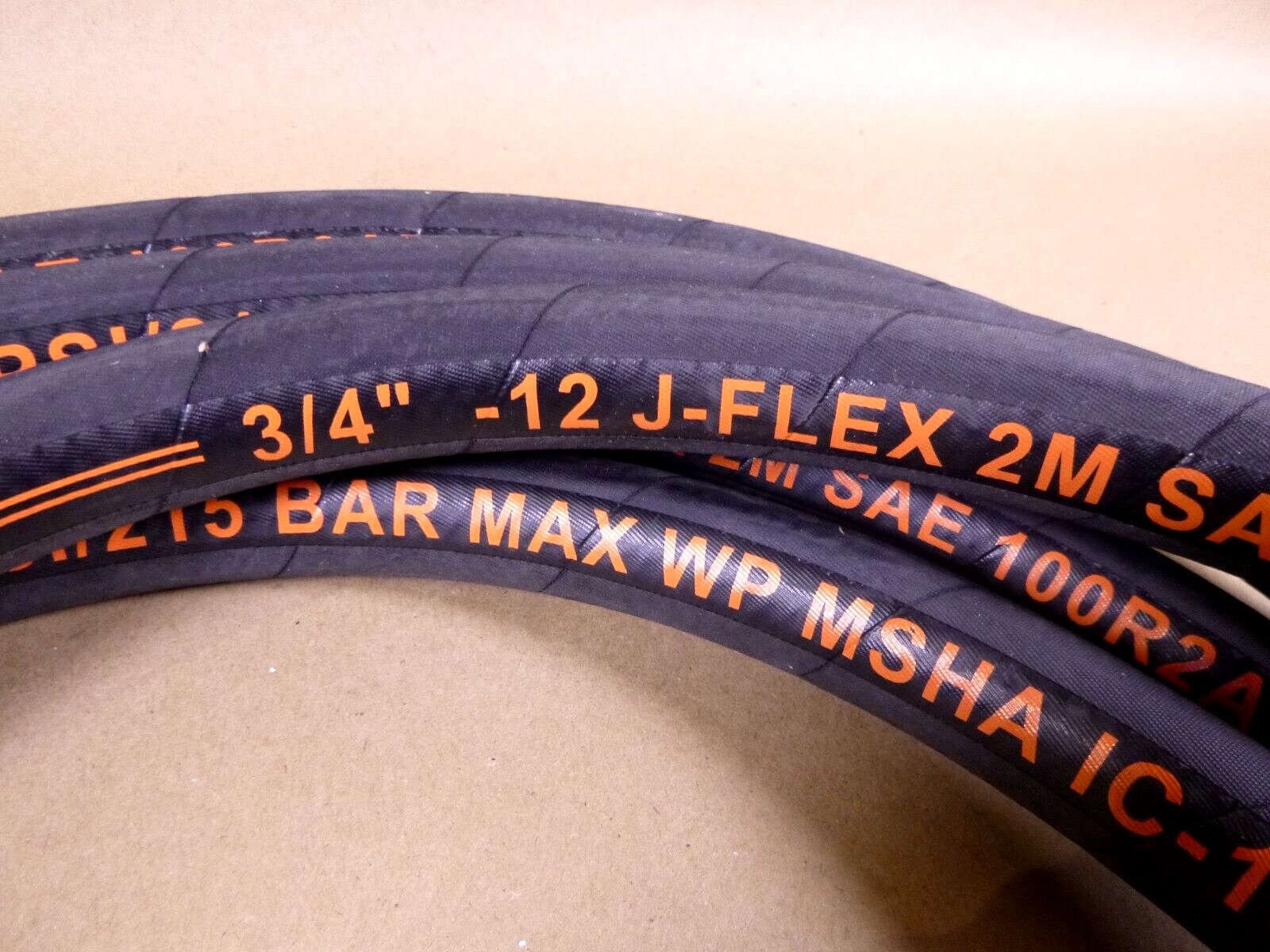

USGI M1083 M1089 FMTV Hose Assembly 12413118, 1C04488KKK2400A, 4720-01-435-1664

$119.95
Availability: In-Stock
Quantity
Call: 702-268-8156
USGI M1083 M1089 FMTV Hose Assembly 12413118, 1C04488KKK2400A, 4720-01-435-1664

TECHNICAL CHARACTERISTICS

HOSE OR TUBING SPEC/STD DATA
(ADLF) SAE J517, 100R2, TYPE AT-81343 STANDARD (INCLUDES INDUSTRY OR ASSOCIATION STANDARDS, INDIVIDUAL MANUFACTUREER STANDARDS, ETC.).
FIRST END SWIVEL ACTION CAPABILITY
(CQBG) NOT INCLUDED
LAYER COMPOSITION AND LOCATION
(CQCS) 2ND LAYER BRAIDED WIRE ERR-100
END CONNECTION DESIGN
(AKUU) STRAIGHT 1ST END
BURST TEST PRESSURE
(CQBD) 9000.0 POUNDS PER SQUARE INCH

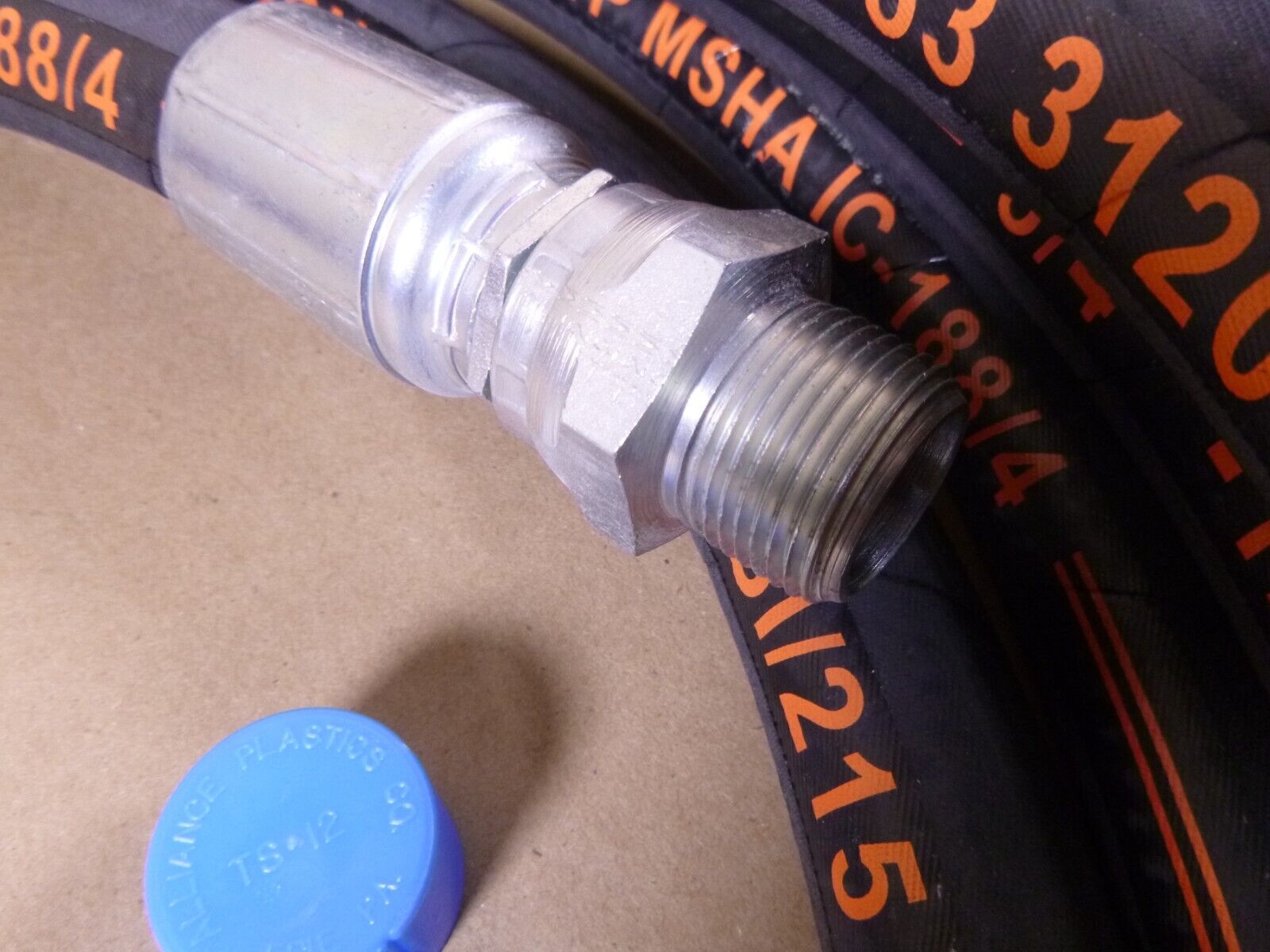

CONNECTION STYLE
(AHNC) INVERTED FLARE 1ST END
CONNECTION TYPE
(AWLS) THREADED EXTERNAL TUBE 1ST END
CROSS-SECTIONAL SHAPE STYLE
(AAGR) ROUND
END ITEM IDENTIFICATION
(AGAV) W/S CODE, TRUCK, FAMILY OF MEDIUM TACTICLE VEHICLE (FMTV) - MEDIUM AND NSN 2320-01-354-4528
HYDROSTATIC TEST PRESSURE
(CRDW) 4500.0 POUNDS PER SQUARE INCH
INSIDE DIAMETER
(AARX) 0.750 INCHES NOMINAL
INSIDE SURFACE CONDITION
(CRWL) SMOOTH
NOMINAL THREAD SIZE
(CQJX) 0.750 INCHES 1ST END
OUTSIDE DIAMETER
(ABKV) 1.160 INCHES NOMINAL
LAYER COMPOSITION AND LOCATION
(CQCS) 1ST LAYER BRAIDED WIRE AND 2ND LAYER BRAIDED WIRE AND OUTER LAYER MOLDED RUBBER, SYNTHETIC
MAXIMUM OPERATING PRESSURE
(CQGM) 2250.0 POUNDS PER SQUARE INCH
MEASURING METHOD AND LENGTH
(CRXX) 240.000 INCHES NOMINAL OVERALL
MEDIA FOR WHICH DESIGNED
(MEDA) FUEL/OIL, HYDROCARBON SINGLE RESPONSE
MINIMUM INSIDE BENDING RADIUS
(ACKH) 9.500 INCHES
SEAT ANGLE
(CQRB) 0.0 DEGREES 1ST END
THREAD DIRECTION
(AAJF) RIGHT-HAND 1ST END
THREAD SERIES DESIGNATOR
(THSD) NPT 1ST END
TEMP RATING
(ABJH) -40.0 DEG FAHRENHEIT AND 212.0 DEG FAHRENHEIT SINGLE RESPONSE
SECOND END RELATIONSHIP WITH FIRST END
(CQBB) IDENTICAL
LAYER COMPOSITION AND LOCATION
(CQCS) OUTER LAYER MOLDED RUBBER, SYNTHETIC ERR-100
