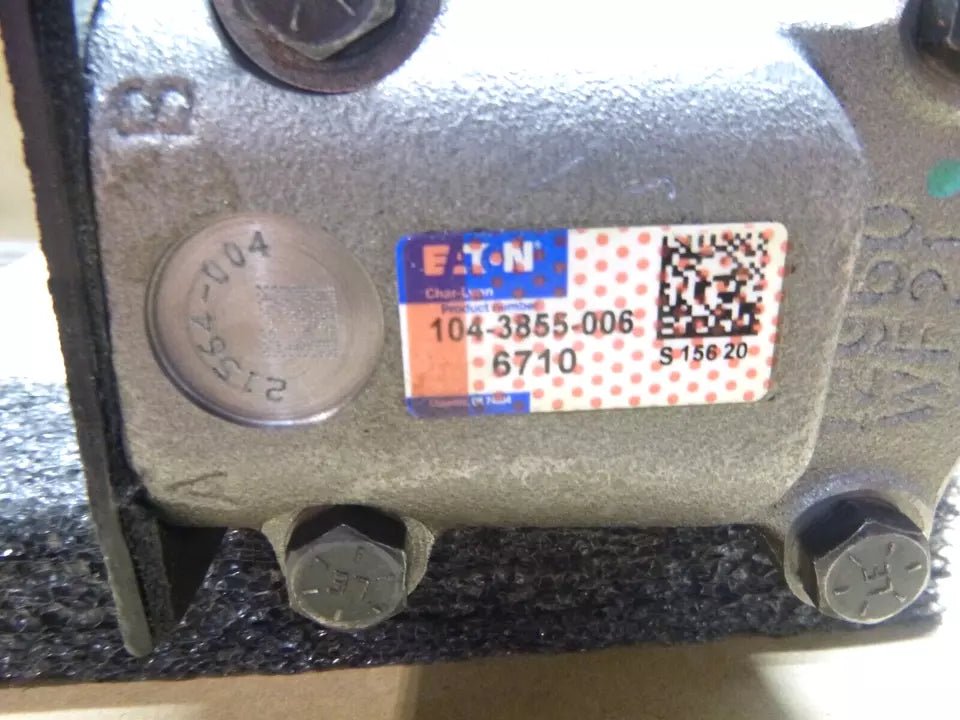

New 2000 Series CHAR-LYNN 104-3855-006 High Torque Geroler Disc Hydraulic Motor
Call: 702-268-8156
New 2000 Series CHAR-LYNN 104-3855-006 High Torque Geroler Disc Hydraulic Motor
Feature | Code | Description |
---|---|---|
PRODUCT | M | MOTOR |
SERIES | 02 | 2000 SERIES |
DISPLACEMENT | 149 | 244.3 CM3/R [14.91 IN3/R] |
MOUNTING TYPE | AF | STANDARD, 2 BOLT; 101.6 [4.00] PILOT DIA. 14.35 [.565] DIA. HOLES ON 146.0 [5.75] DIA. BOLT CIRCLE. SAE B |

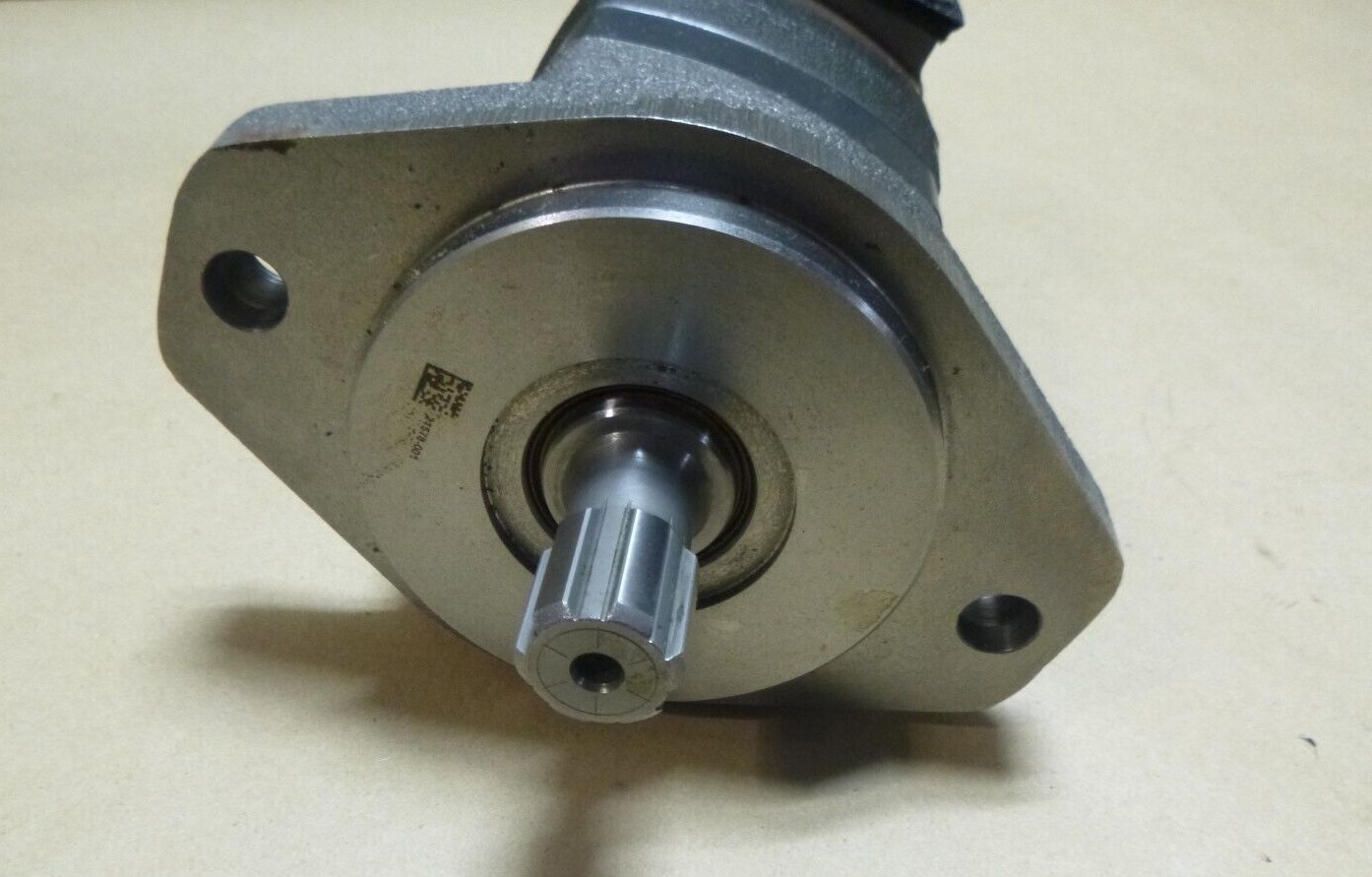

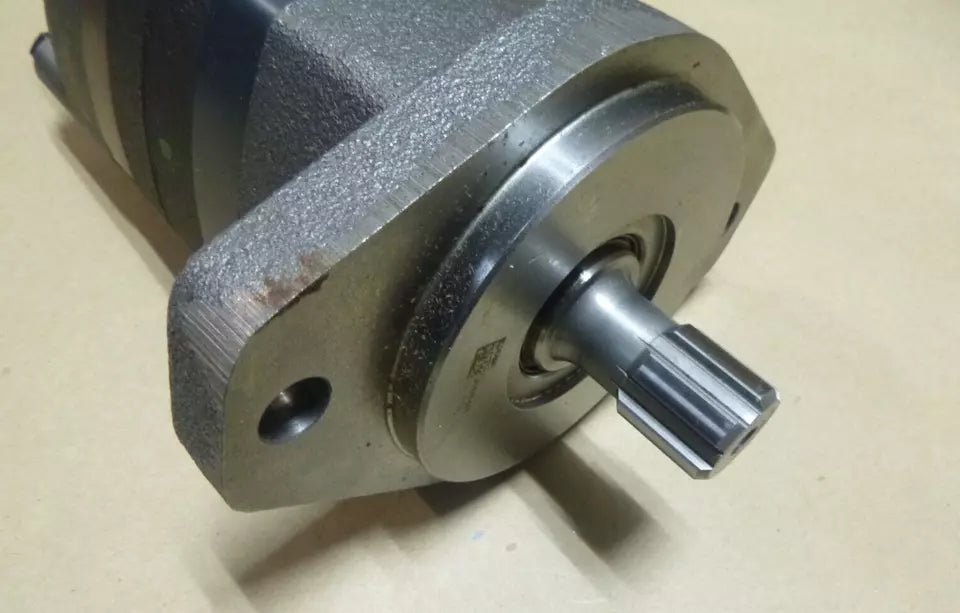

OUTPUT SHAFT | 05 | 25.40 [1.000] DIA. 6B SPLINE PER SAE J499 WITH .250-20UNC-2B THREAD IN END, 22.76 [.896] MINIMUM FULL SPLINE LENGTH |

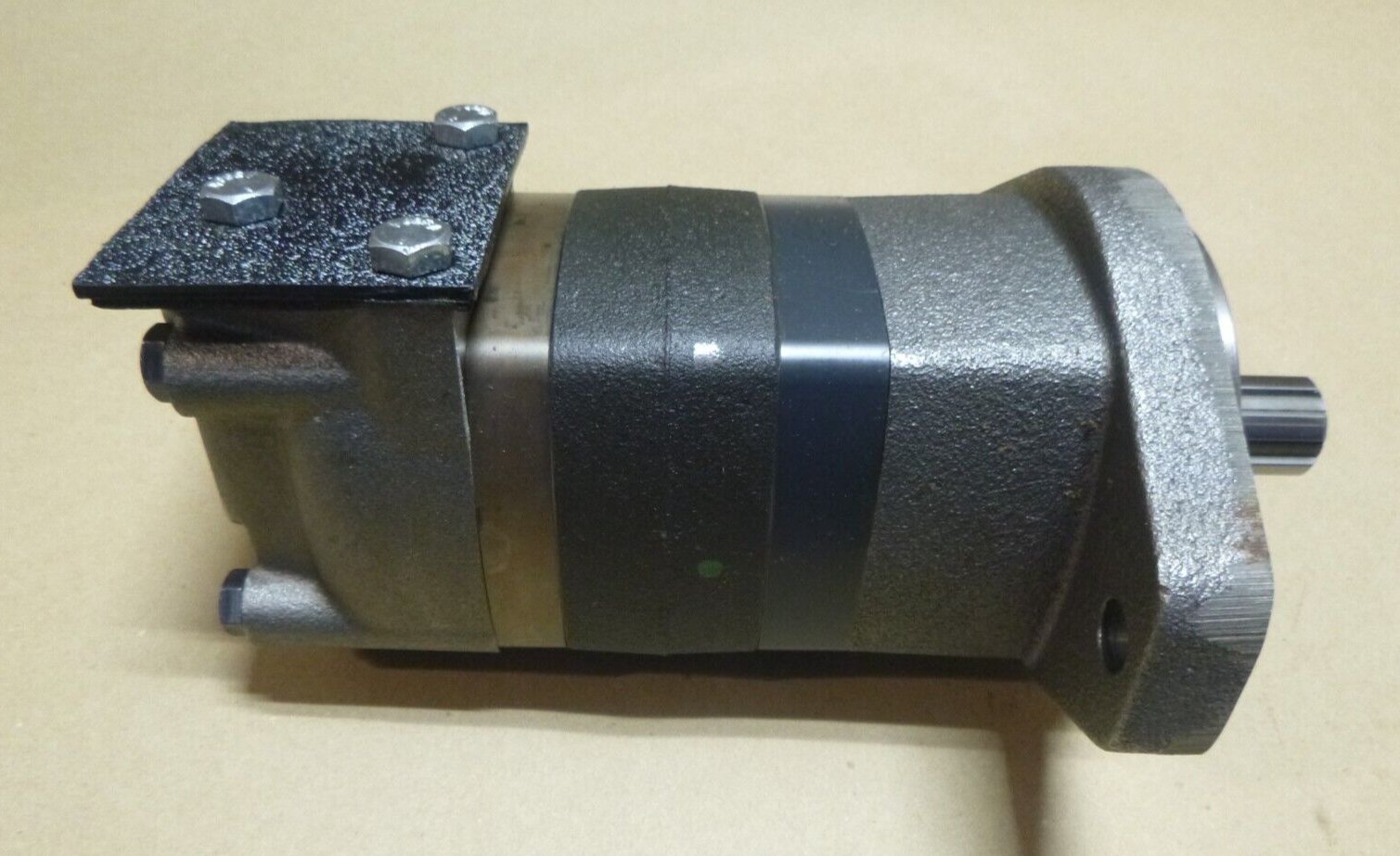

PORTS | AB | 12.70 [.500] AND 15.88 [.625] DIA. MANIFOLD PORTS WITH 3X .375-16 UNC-2B PORT BLOCK MOUNTING HOLES |
CASE FLOW OPTION | 01 | .4375-20 UNF-2B SAE O-RING PORT |
LOW PRESSURE RELIEF | 0 | NONE |
PRESSURE FLOW OPTION | 00 | NONE |
GEROLER OPTION | 1 | STANDARD |
SEAL OPTION | 1 | VITON |
ACCESSORIES | 00 | NONE |
SPECIAL FEATURES (HARDWARE) | 00 | NONE |
SPECIAL FEATURES (ASSEMBLY) | 00 | NONE |
PAINT | AA | NO PAINT |
CUSTOMER IDENTIFICATION | AA | NONE |
DESIGN CODE | F | SIXTH |
