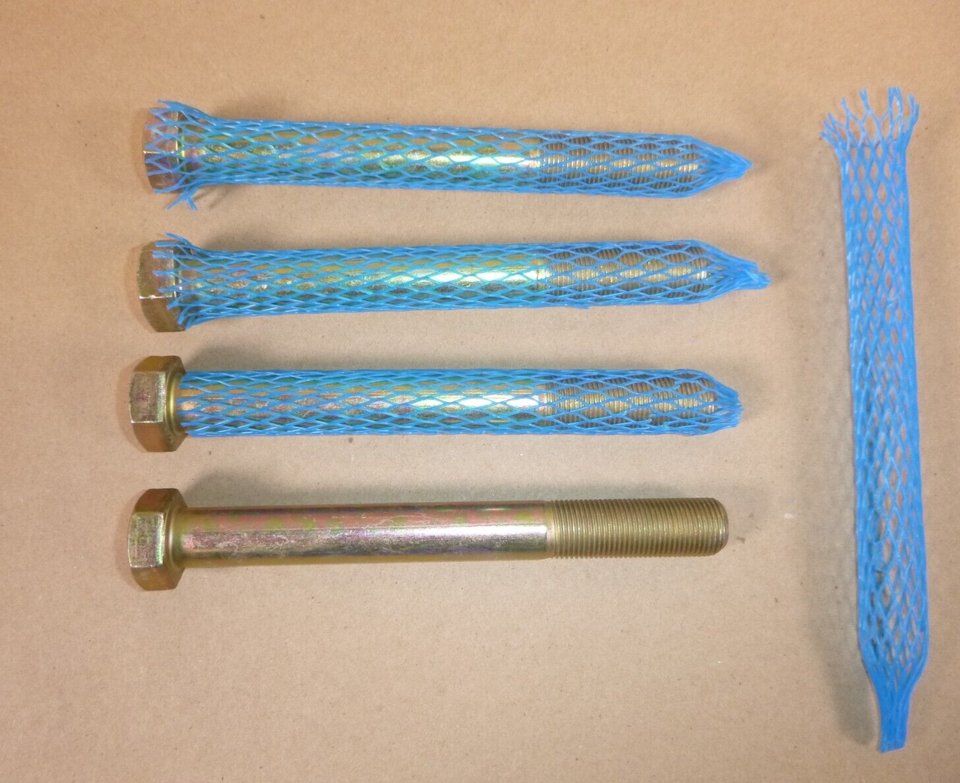

(Lot of 4) 3/4-16 x 7" Hex Head Cap Screw / Bolt ANSI B18.2.1, B1821BH075F700N

FASTENER LENGTH

(AASB) 7.00 INCHES NOMINAL

HARDNESS RATING

(CQFM) 33.0 ROCKWELL C MINIMUM OVERALL

HEAD HEIGHT

(AASU) 0.455 INCHES MINIMUM AND 0.483 INCHES MAXIMUM

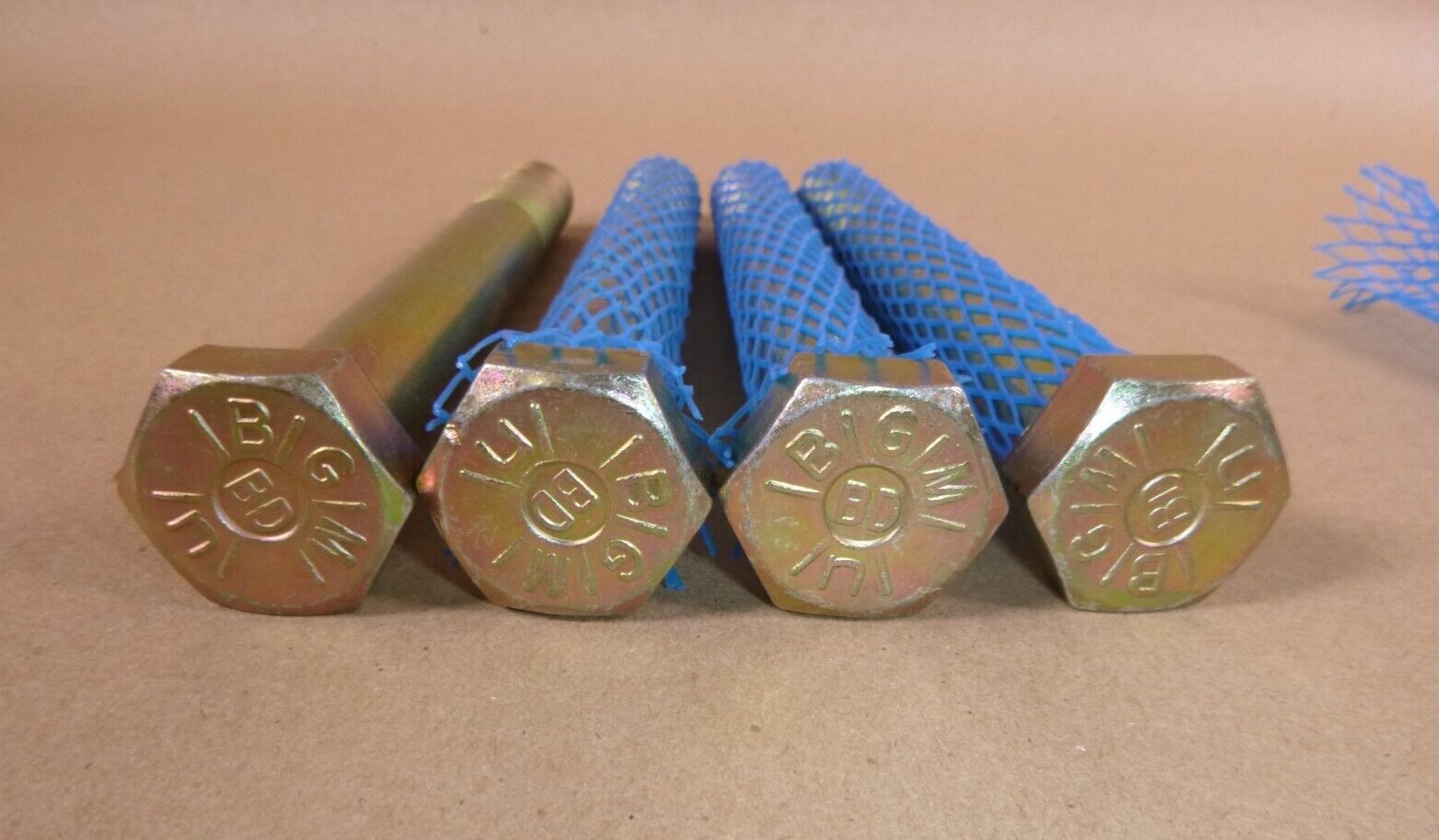

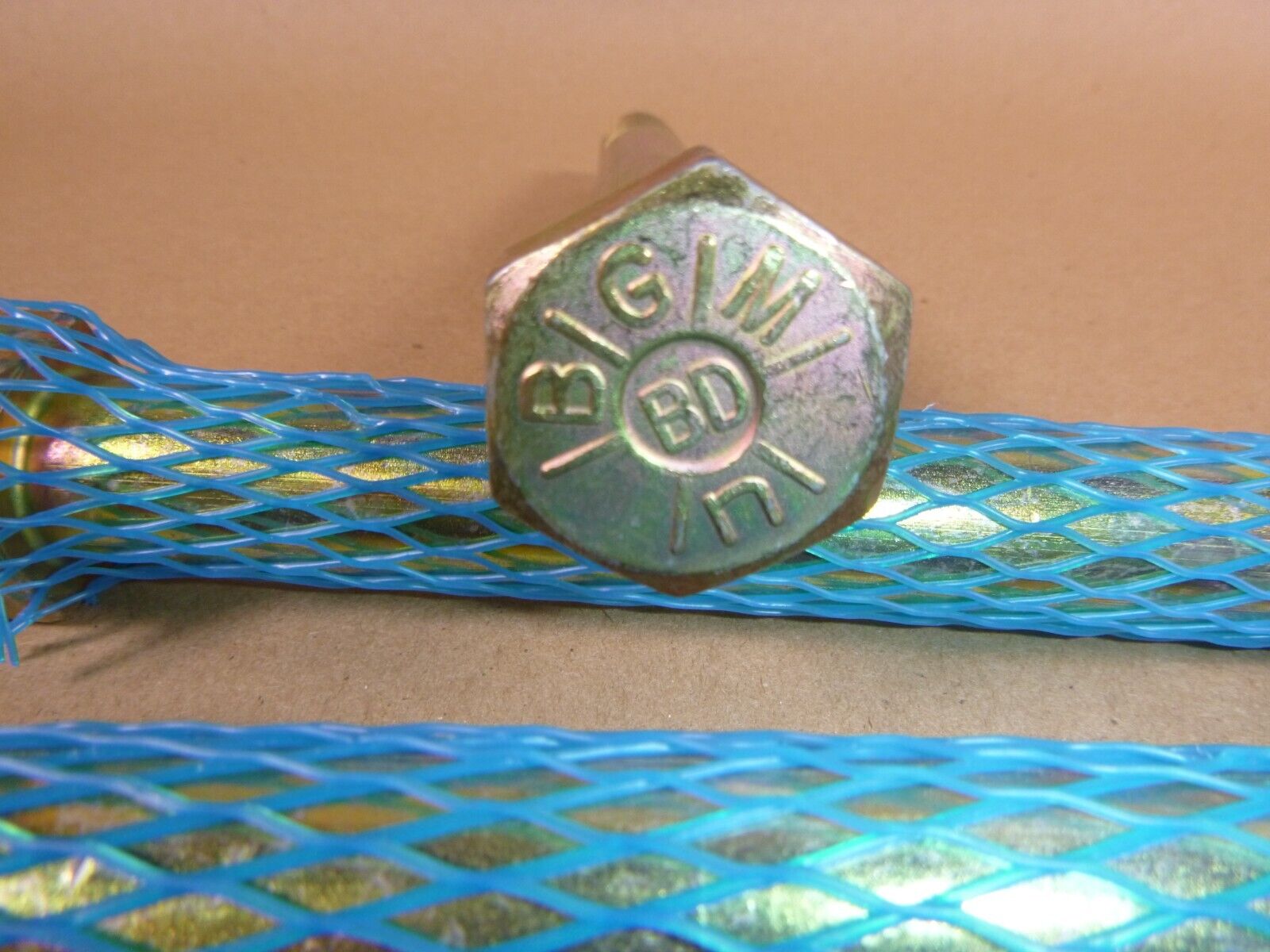

HEAD STYLE

(AASK) HEXAGON

NOMINAL THREAD DIAMETER

(AHYM) 0.750 INCHES

MATERIAL DOCUMENT AND CLASSIFICATION

(MDCL) ASTM A354,GRADE BD AMERICAN SOCIETY FOR TESTING AND MATERIALS (ASTM) SINGLE MATERIAL RESPONSE OVERALL

MATERIAL

(MATT) STEEL UNS K04100 OVERALL

PART NAME ASSIGNED BY CONTROLLING AGENCY

(CXCY) HEX HEAD CAP SCREW

THREAD CLASS

(AAJD) 2A

THREAD DIRECTION

(AAJF) RIGHT-HAND

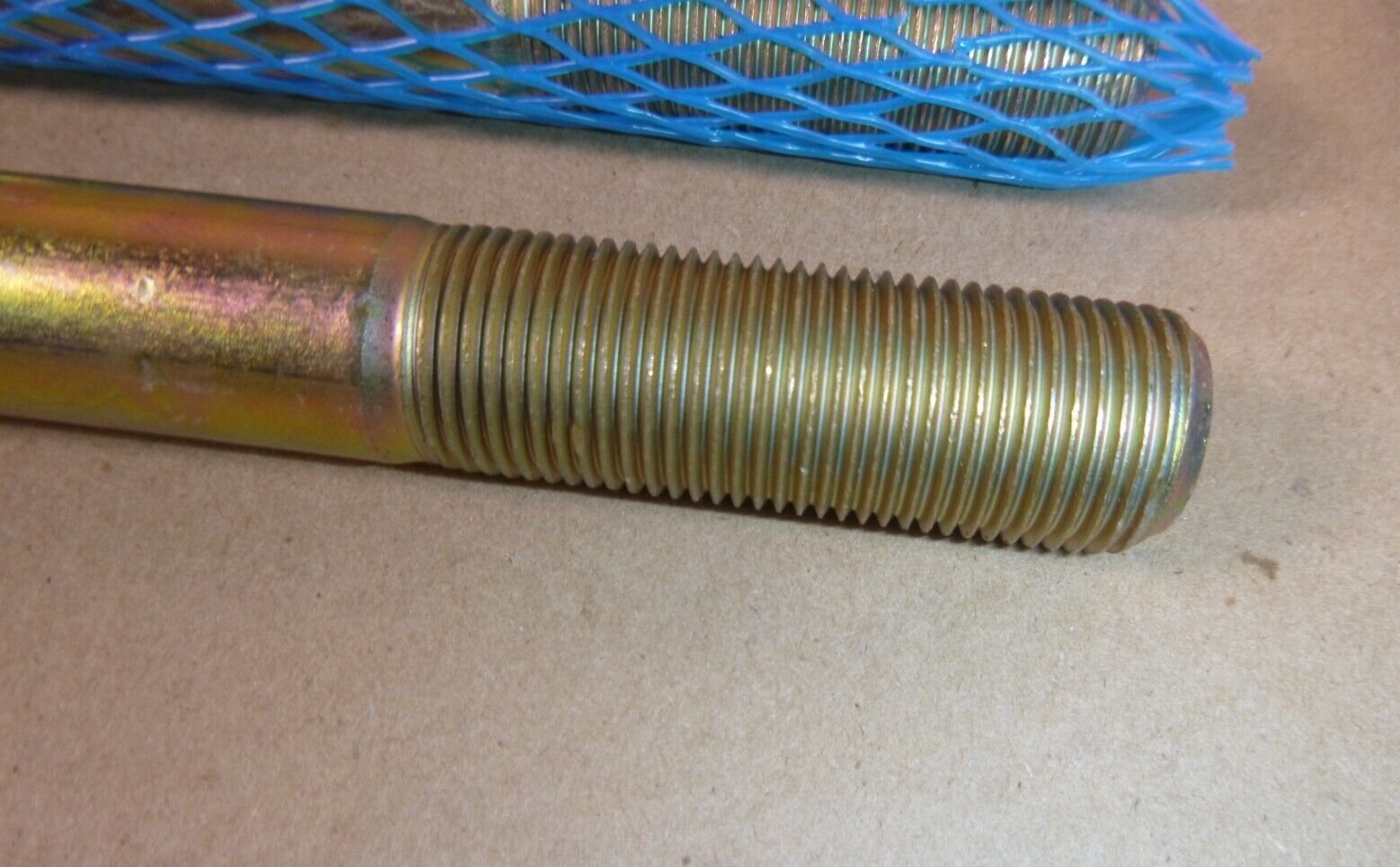

THREAD LENGTH

(AASA) 1.75 INCHES MINIMUM

THREAD SERIES DESIGNATOR

(THSD) UNF

THREAD QUANTITY PER INCH

(CMLP) 16

WIDTH BETWEEN FLATS

(AATB) 1.100 INCHES MINIMUM AND 1.125 INCHES MAXIMUM

SURFACE TREATMENT DOCUMENT AND CLASSIFICATION

(STDC) ASTM B633M,FE/ZN5 OR FE/ZN8 ASSN STD SINGLE TREATMENT RESPONSE OVERALL

SURFACE TREATMENT

(SFTT) ZINC OVERALL

NEW MILITARY SURPLUS NSN 5305-01-683-1393
