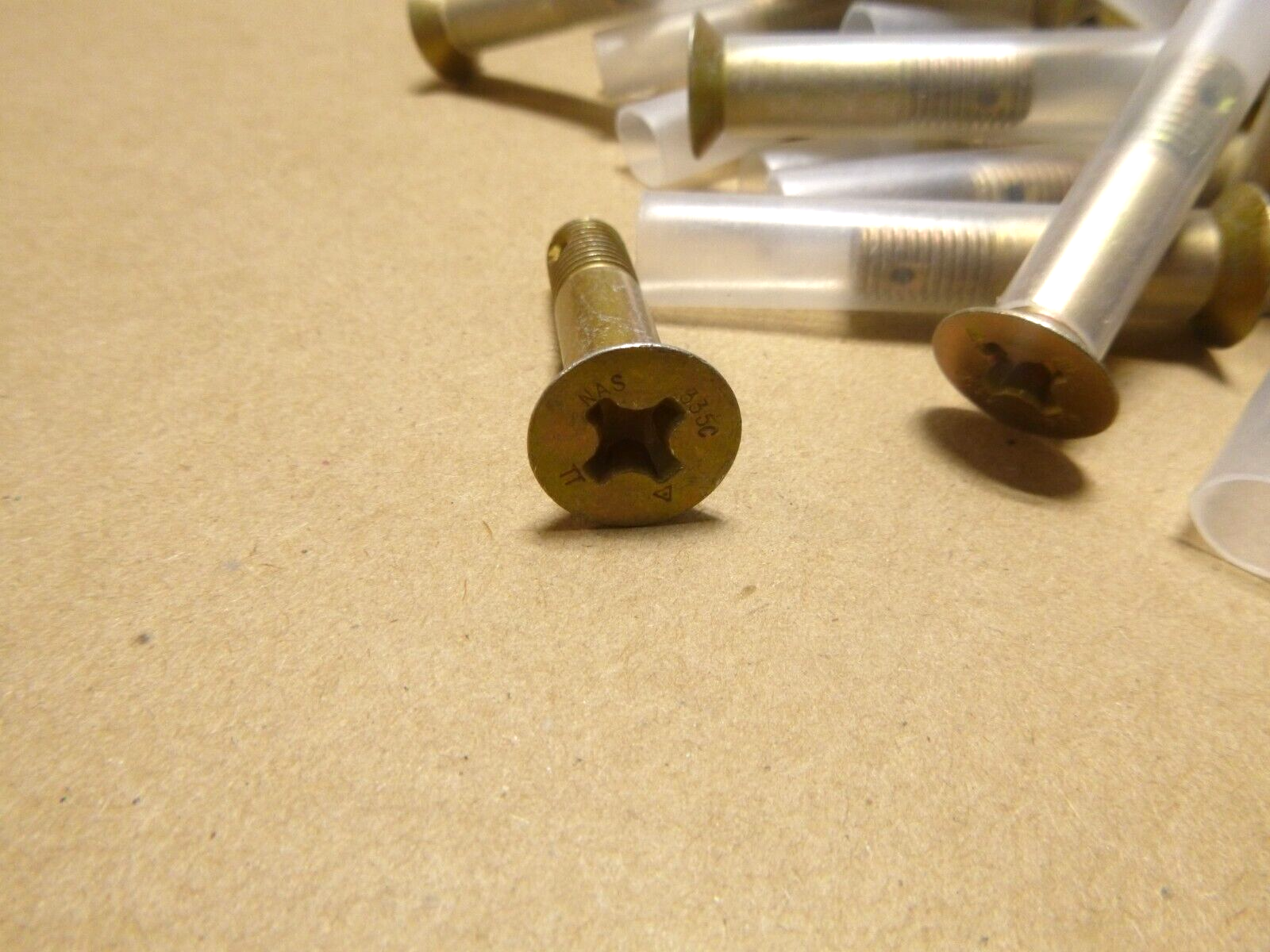

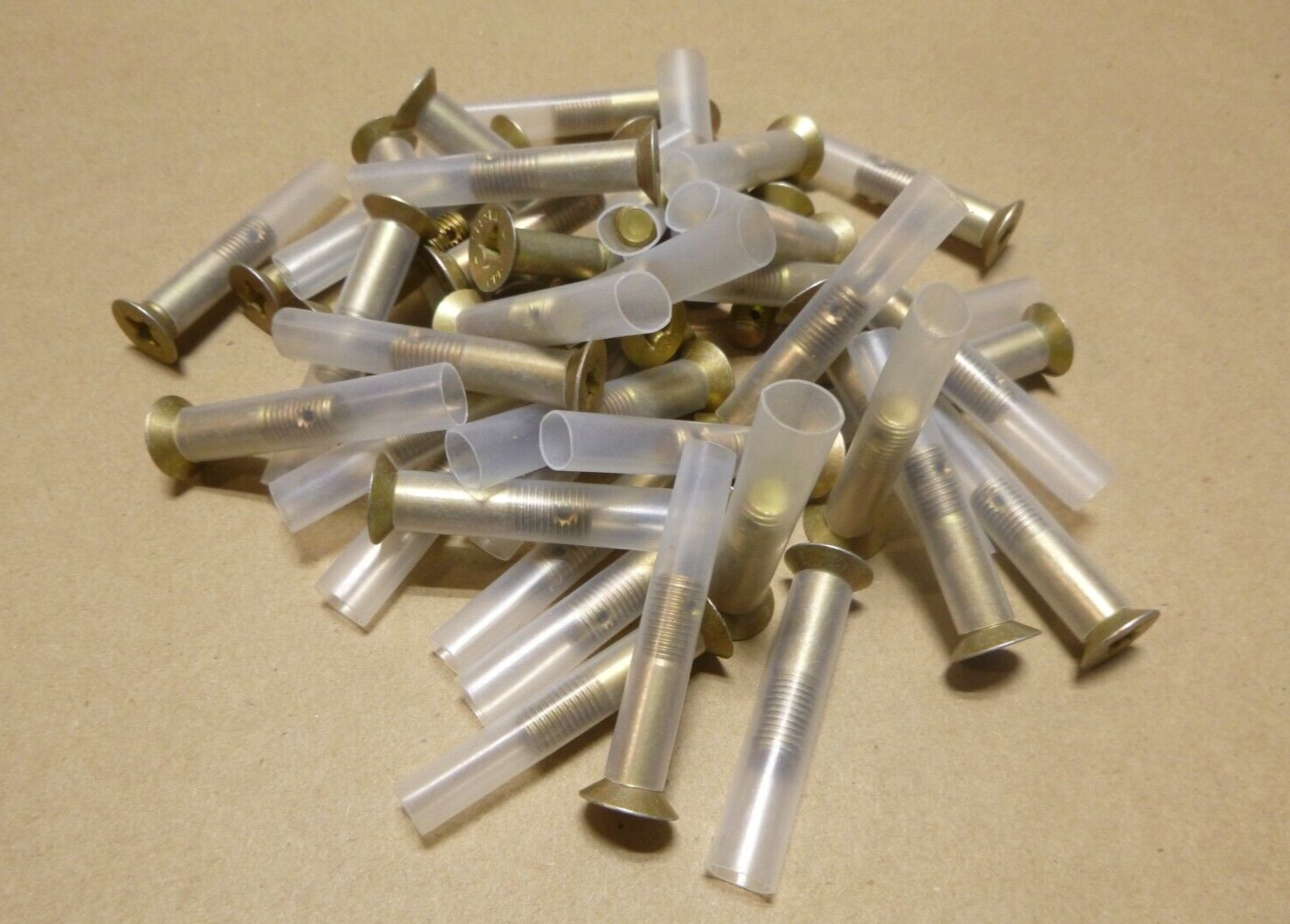

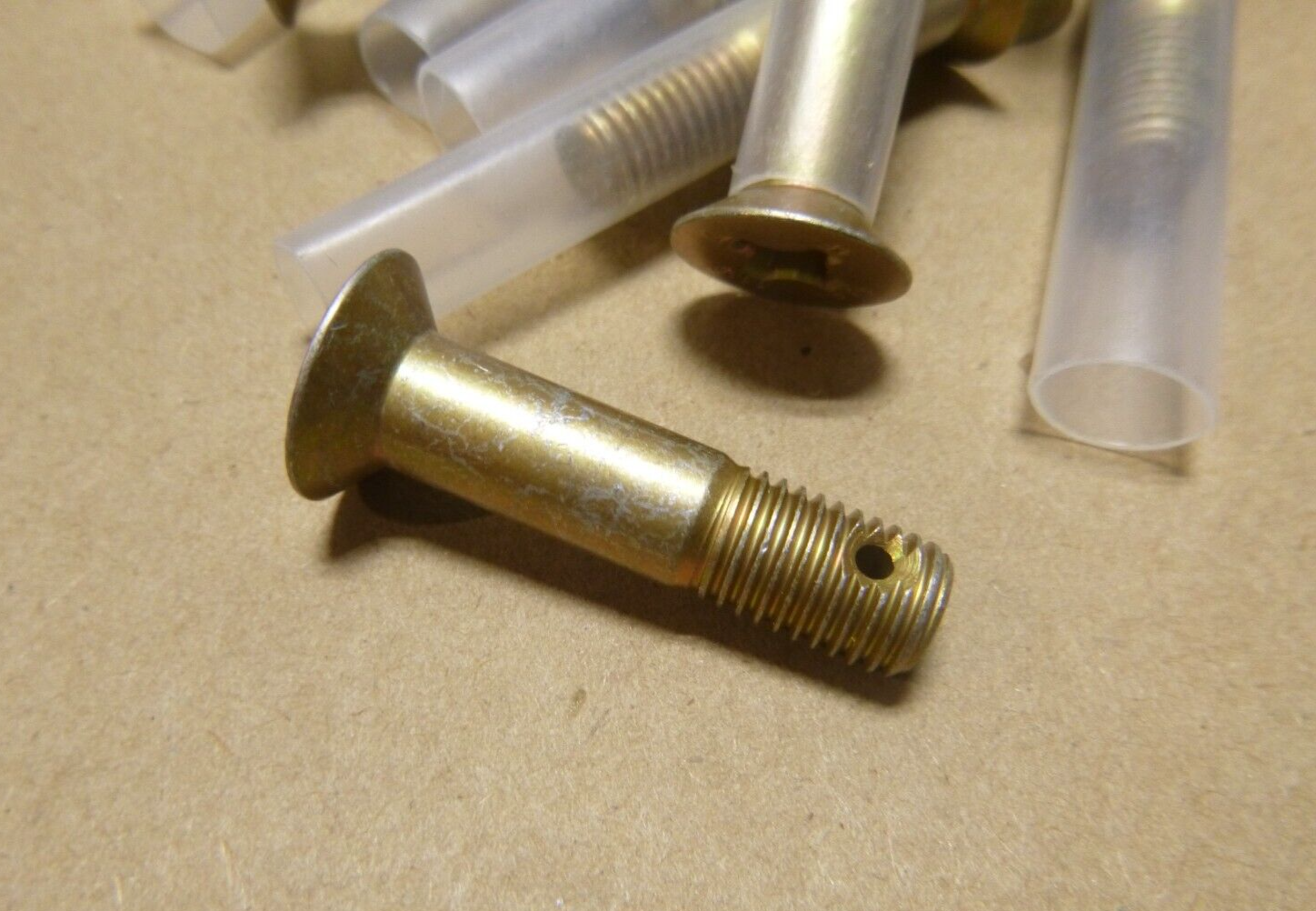

(47x) USGI 5/16-24 Close Tolerance Screw NAS335CP12, 5305-00-531-0447

Regular price: $89.99
Regular price
Sale price: $89.99

Shipping calculated at checkout.

47x USGI 5/16-24 Aircraft Close Tolerance Screw NAS335CP12, 5305-00-531-0447

TECHNICAL CHARACTERISTICS

DISTANCE FROM HEAD LARGEST BEARING SURFACE TO SHANK HOLE CENTER: (CRZS) 1.161 INCHES MINIMUM FIRST HOLE AND 1.181 INCHES MAXIMUM FIRST HOLE
COUNTERSINK ANGLE: (CRSQ) 99.0 DEGREES MINIMUM AND 101.0 DEGREES MAXIMUM
FASTENER LENGTH: (AASB) 1.327 INCHES MINIMUM AND 1.374 INCHES MAXIMUM
GRIP DIAMETER: (AAUR) 0.3108 INCHES MINIMUM AND 0.3117 INCHES MAXIMUM
GRIP LENGTH: (ANEE) 0.802 INCHES MINIMUM AND 0.822 INCHES MAXIMUM
HARDNESS RATING: (CQFM) 36.0 ROCKWELL C MINIMUM OVERALL AND 40.0 ROCKWELL C MAXIMUM OVERALL
HEAD DIAMETER: (AASL) 0.625 INCHES MINIMUM AND 0.635 INCHES MAXIMUM
HEAD STYLE: (AASK) FLAT COUNTERSUNK
INTERNAL DRIVE STYLE: (ABQZ) CROSS RECESS TYPE 1
MATERIAL DOCUMENT AND CLASSIFICATION: (MDCL) MIL-S-5626 MIL SPEC 1ST MATERIAL RESPONSE OVERALL OR MIL-S-5000 MIL SPEC 2ND MATERIAL RESPONSE OVERALL OR MIL-S-8503 MIL SPEC 3RD MATERIAL RESPONSE OVERALL OR MIL-S-6098 MIL SPEC 4TH MATERIAL RESPONSE OVERALL OR MIL-S-6049 MIL SPEC 5TH MATERIAL RESPONSE OVERALL
MATERIAL: (MATT) STEEL COMP 4140 OVERALL OR STEEL COMP E4340 OVERALL OR STEEL COMP 6150 OVERALL OR STEEL COMP 8735 OVERALL OR STEEL COMP 8740 OVERALL
MINIMUM TENSILE STRENGTH: (CQBC) 160000 POUNDS PER SQUARE INCH
NOMINAL THREAD DIAMETER: (AHYM) 0.312 INCHES
SHANK UNTHREADED HOLE DIAMETER: (AAWB) 0.076 INCHES NOMINAL FIRST HOLE
SINGLE SHEAR STRENGTH: (AAWU) 7300 POUNDS PER SQUARE INCH
SPECIFICATION/STANDARD DATA: (ZZZK) 80205-NAS335 PROFESSIONAL/INDUSTRIAL ASSOCIATION STANDARD
SURFACE FINISH: (CSYM) 32.0 MICROINCHES GRIP
SURFACE TREATMENT DOCUMENT AND CLASSIFICATION: (STDC) QQ-P-416,TY 2,CL 3 FED SPEC SINGLE TREATMENT RESPONSE OVERALL
SURFACE TREATMENT: (SFTT) CADMIUM OVERALL AND CHROMATE OVERALL
THREAD CLASS: (AAJD) 3A
THREAD DIRECTION: (AAJF) RIGHT-HAND
THREAD LENGTH: (AASA) 0.505 INCHES MINIMUM AND 0.572 INCHES MAXIMUM
THREAD SERIES DESIGNATOR: (THSD) UNF
THREAD QUANTITY PER INCH: (CMLP) 24
