USGI

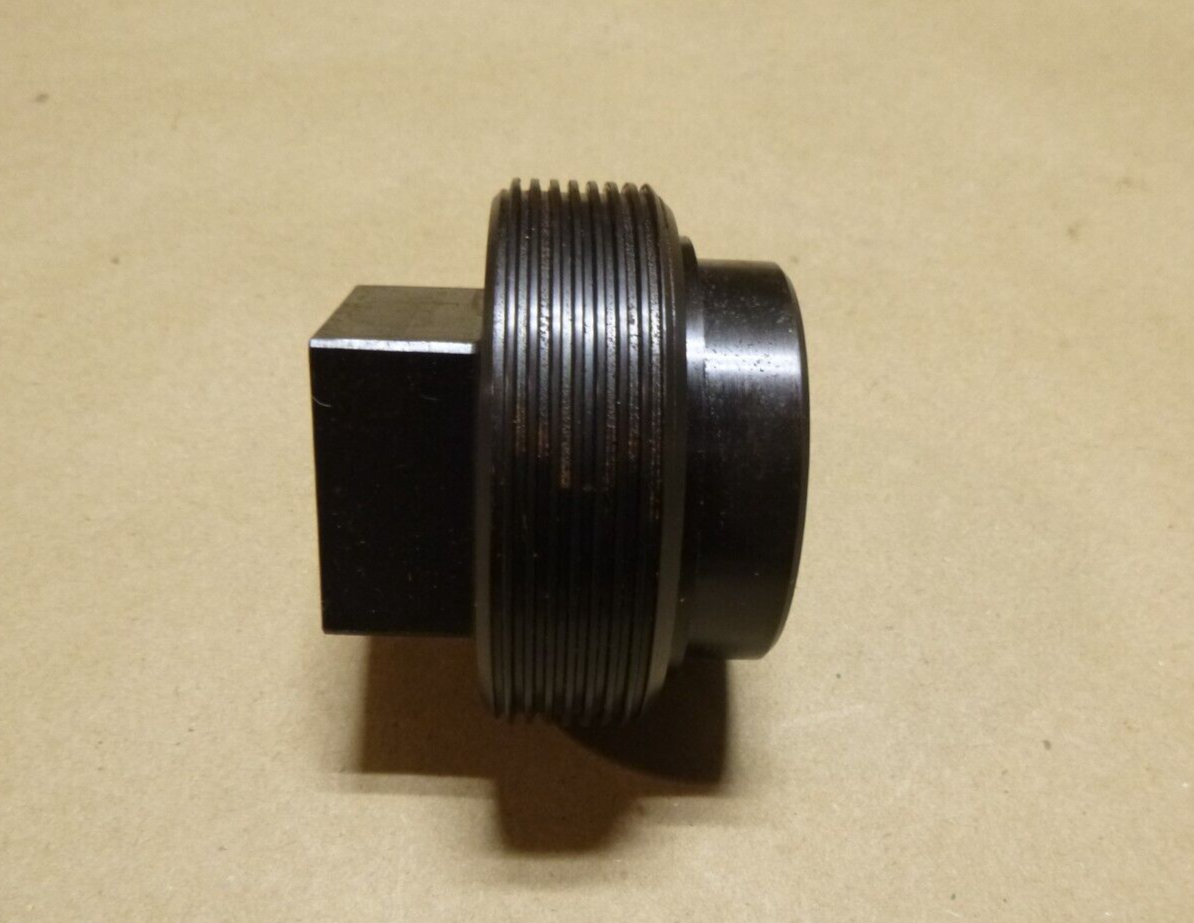

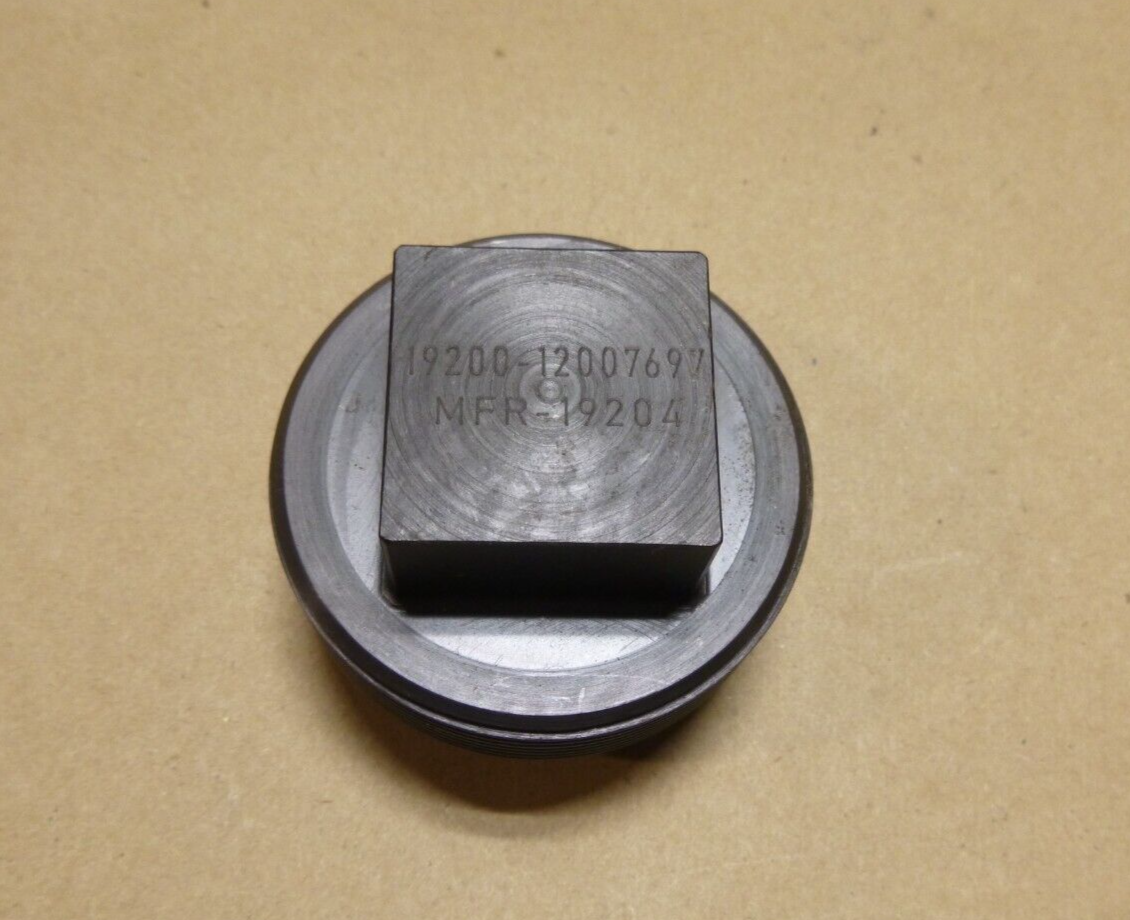

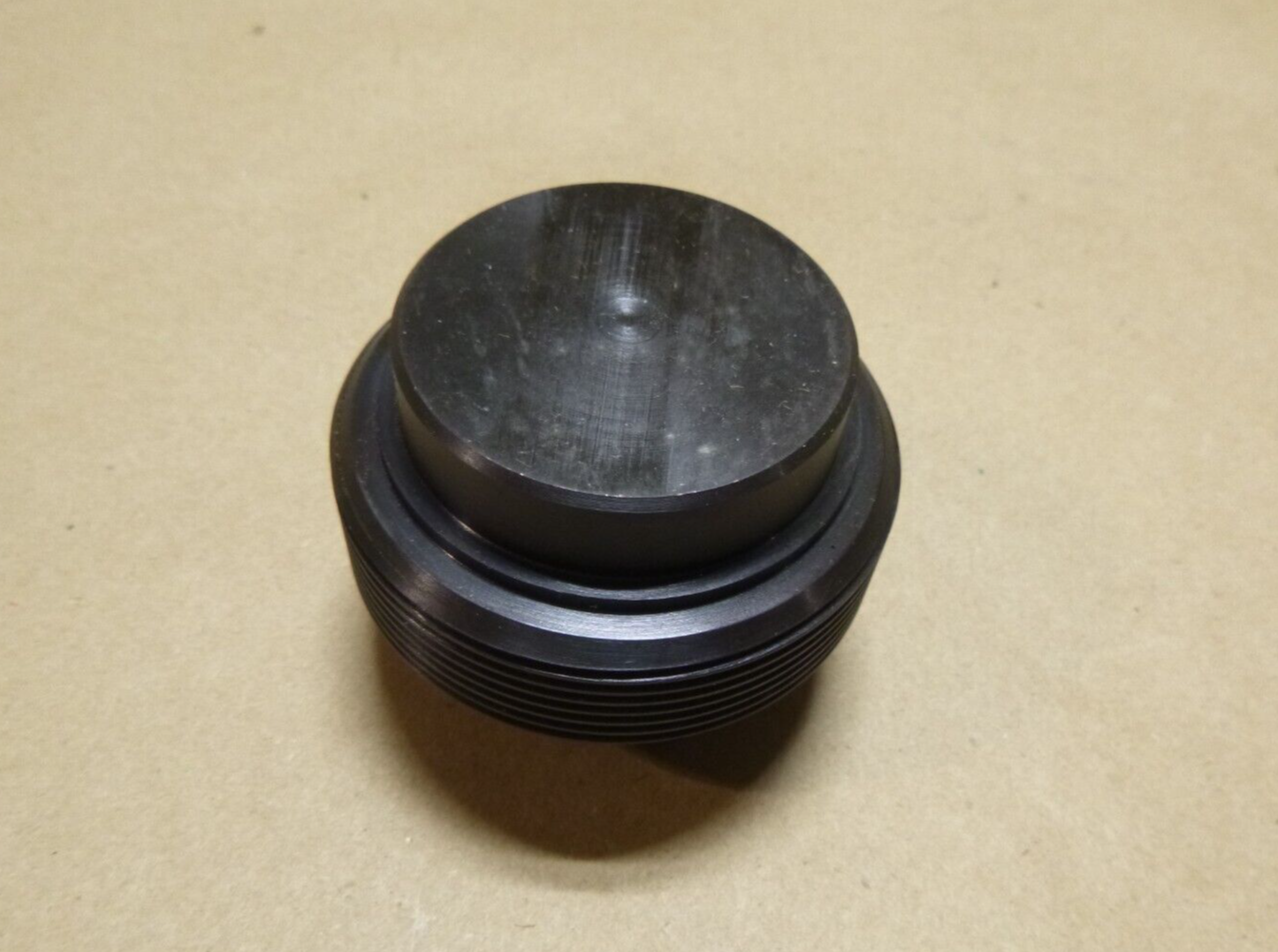

2-1/2"-12 Machine Thread Plug 12007697

$22.95
$22.95
Shipping calculated at checkout.
2-1/2"-12 Machine Thread Plug 12007697


TECHNICAL CHARACTERISTICS

CONNECTION STYLE
(AHNC) PLAIN (OPTIONAL END)
FLANGE DIAMETER
(ABKK) 2.060 INCHES NOMINAL
FLANGE THICKNESS
(ABKU) 0.060 INCHES NOMINAL
HEAD HEIGHT
(AASU) 0.500 INCHES NOMINAL
OVERALL LENGTH
(ABHP) 2.000 INCHES NOMINAL
MATERIAL DOCUMENT AND CLASSIFICATION
(MDCL) ASTMA400 FED SPEC SINGLE MATERIAL RESPONSE OVERALL
MATERIAL
(MATT) STEEL OVERALL
NOMINAL THREAD SIZE
(CQJX) 2.500 INCHES INTERNAL
SEAT ANGLE
(CQRB) 45.0 DEGREES
SEAT NOMINAL RADIUS
(CWBZ) 0.010 INCHES
SPECIAL FEATURES
(FEAT) SCREW THREAD SERIES DESIGNATOR: ACME
STYLE DESIGNATOR
(STYL) PLUG, MACHINE
THREAD CLASS
(AAJD) 3C INTERNAL
THREAD DIRECTION
(AAJF) RIGHT-HAND INTERNAL
THREAD LENGTH
(AASA) 1.310 INCHES NOMINAL INTERNAL
THREAD PITCH DIAMETERS
(AAJE) +2.4404 TO 2.4489 INCHES EXTERNAL
THREAD QUANTITY PER INCH
(CMLP) 12 INTERNAL
THREAD PITCH DIAMETERS
(AAJE) +2.4404/+2.4489 INCHES EXTERNAL
  • Hurry, only 12 items left in stock!
