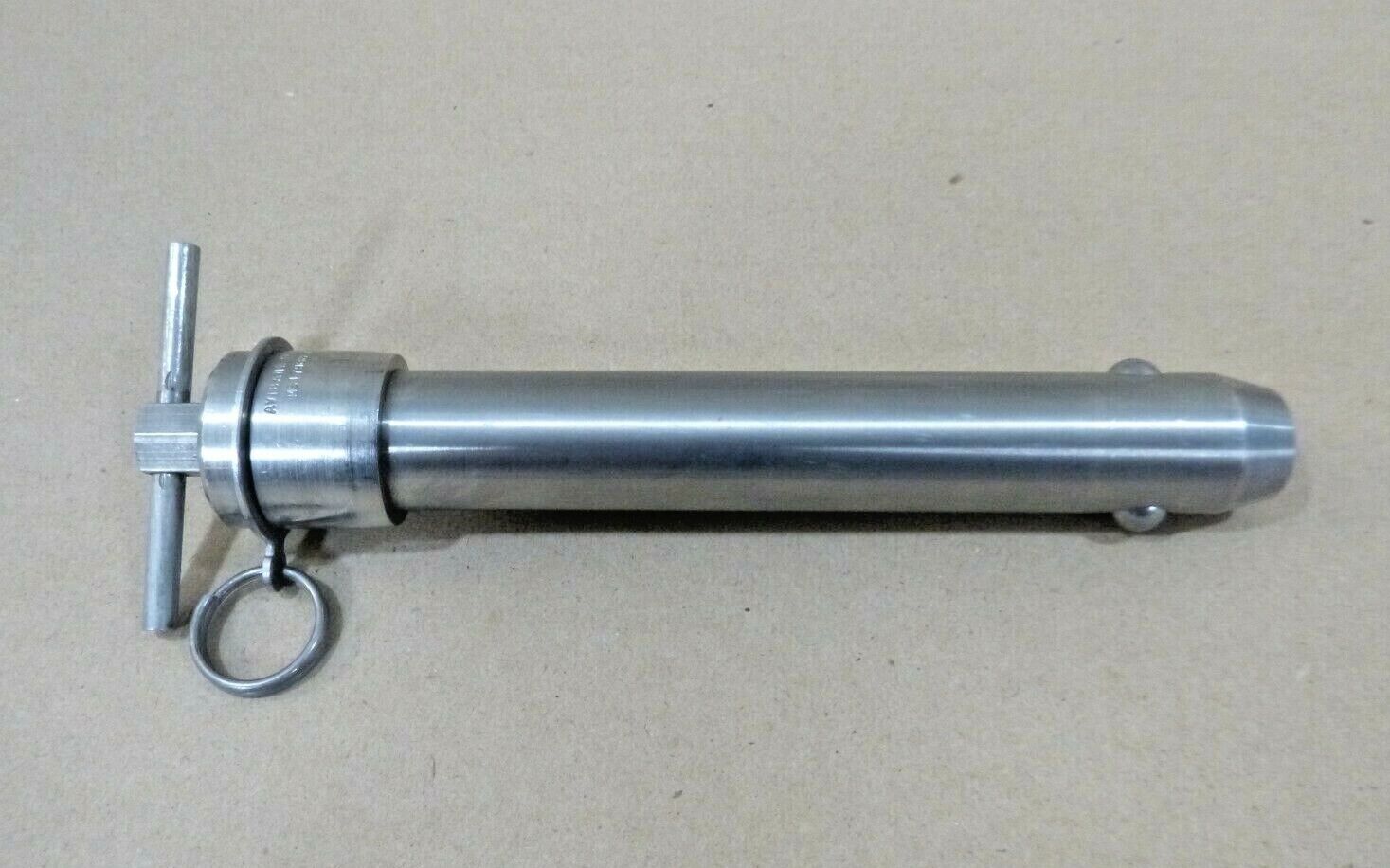

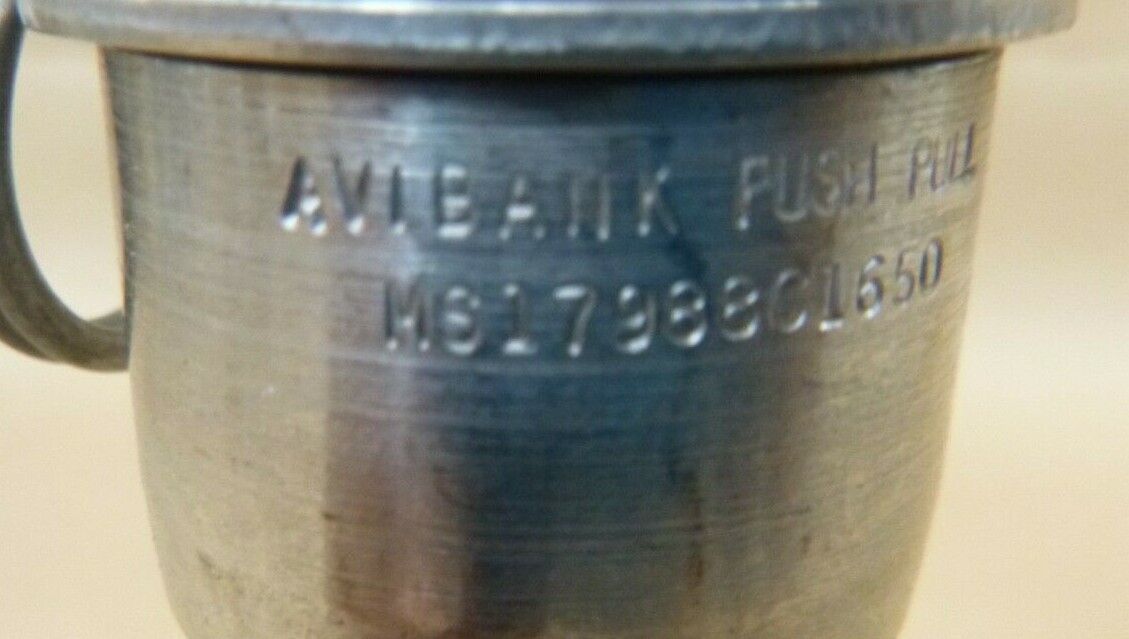

1" Dia x 5" Grip Length Avibank SS Ball Lock Quick Release Pin MS17988C1650

Regular price: $84.00
Regular price
Sale price: $84.00

Shipping calculated at checkout.

STAINLESS STEEL - T HANDLE

TECHNICAL CHARACTERISTICS

ACTUATION METHOD: (AFLW) PUSH BUTTON
ACTUATION TYPE: (APCM) PULL AND PUSH
DETENT QUANTITY: (ABRM) 2

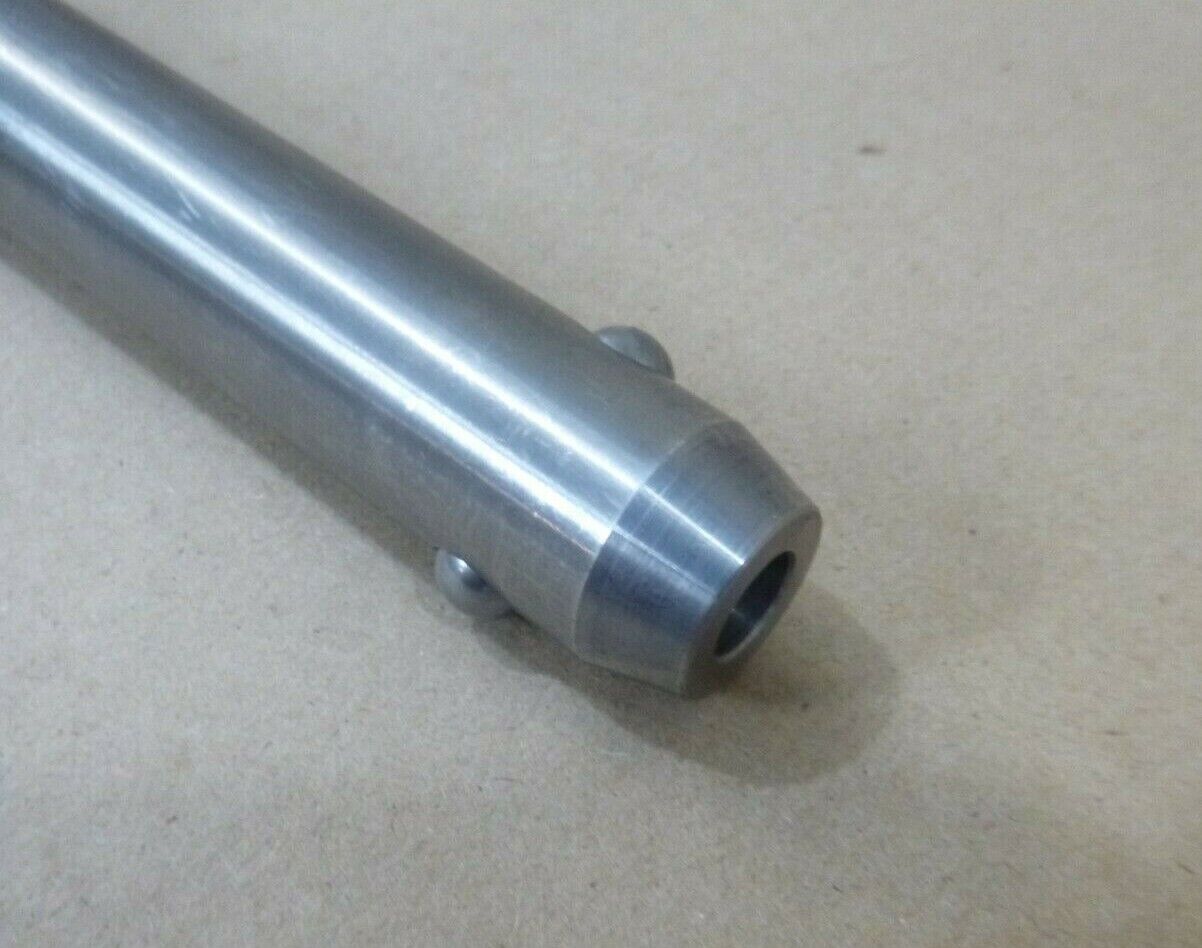

DETENT TO TAPERED END DISTANCE: (CTXT) 1.100 INCHES MAXIMUM
GRIP LENGTH: (ANEE) 5.000 INCHES MINIMUM AND 5.020 INCHES MAXIMUM
HANDLE LENGTH: (AASN) 2.750 INCHES MINIMUM AND 2.875 INCHES MAXIMUM
HARDNESS RATING: (CQFM) 40.0 ROCKWELL C MINIMUM SHANK
HARDNESS RATING: (CQFM) 40.0 ROCKWELL C MINIMUM SPINDLE
HEAD DIAMETER: (AASL) 1.200 INCHES MINIMUM AND 1.280 INCHES MAXIMUM
MATERIAL DOCUMENT AND CLASSIFICATION: (MDCL) AMS 5643 ASSN STD 1ST MATERIAL RESPONSE SHANK OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SHANK
MATERIAL DOCUMENT AND CLASSIFICATION: (MDCL) AMS 5643 ASSN STD 1ST MATERIAL RESPONSE SPINDLE OR AMS 5657 ASSN STD 2ND MATERIAL RESPONSE SPINDLE
MATERIAL: (MATT) STEEL COMP 630 SHANK OR STEEL COMP 632 SHANK
MATERIAL: (MATT) STEEL COMP 630 SPINDLE OR STEEL COMP 632 SPINDLE
SHANK DIAMETER: (AAZE) 0.9970 INCHES MINIMUM AND 0.9985 INCHES MAXIMUM
SHOULDER TO HEAD END DISTANCE: (CRQD) 1.830 INCHES MAXIMUM
PIN ATTACHMENT TYPE: (CTDJ) LINK OR RING

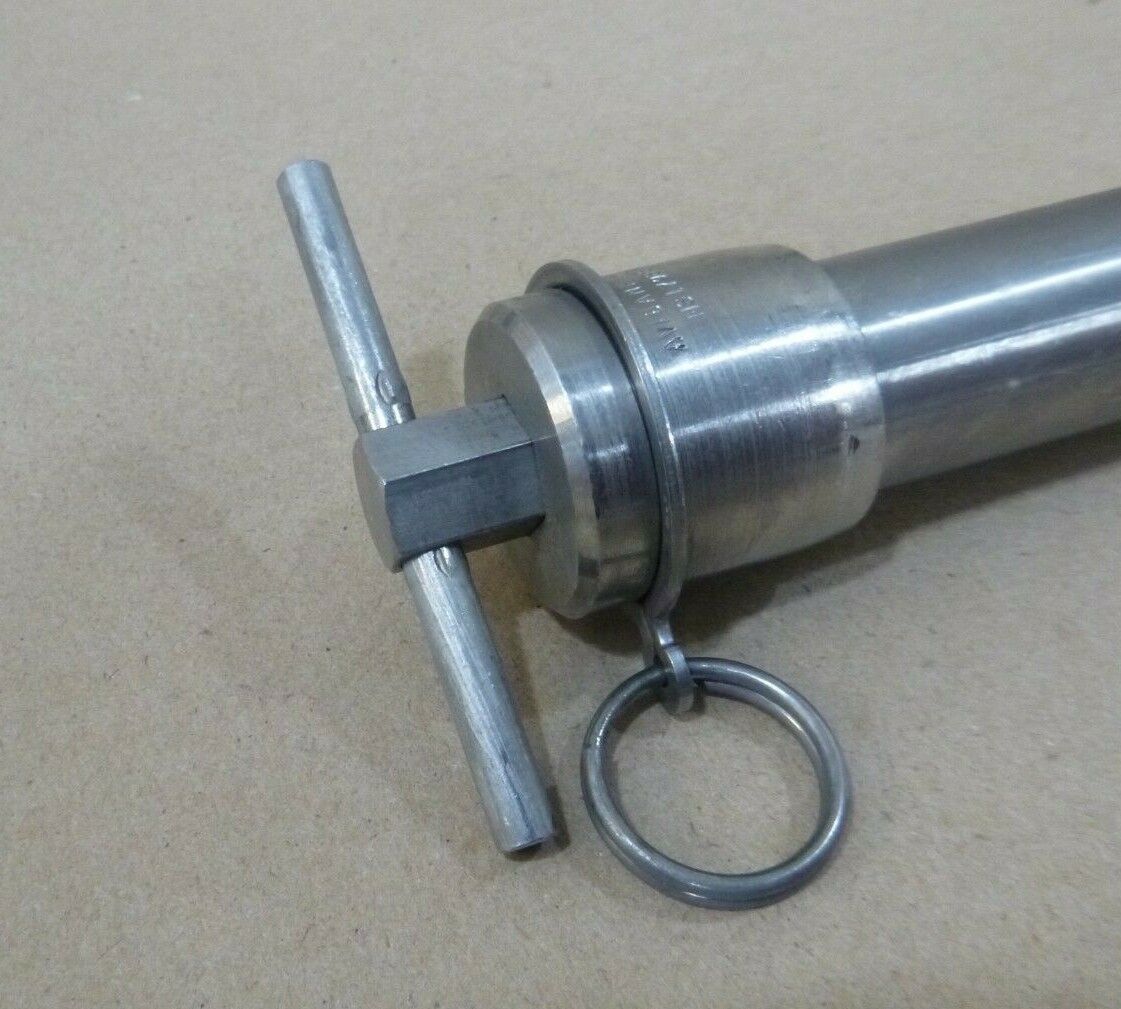

STYLE DESIGNATOR: (STYL) T HANDLE
